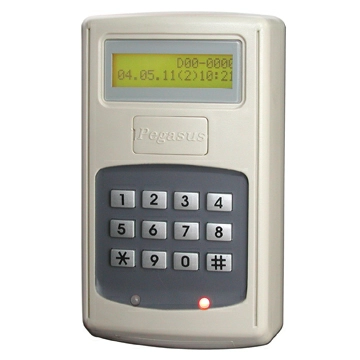

Time Attendance Recorder and Access Controller

Product Description

• Dual functions for access control and time attendance.
• Standalone or PC on-line system which could connect external readers for IN/OUT anti-pass back function.
• Up to 9,990 card holders/ 6,000 events. (Optional: 4,800 cards/ 22,000 events, 12,000 cards/ 16,000 events, 60,000 cards/ 6,000 events)
• Free SDK available.

Features

• Large 16 x 2 lines LCD displays Card number, Date, Weekday, Duty status.
• Capable review the message through LCD screen or print out by the external PG-1050B printer adapter for serial printer directly.
• Standalone or PC on-line which could connect external readers for IN/OUT anti-pass back functions.
• With Wiegand input to connect external proximity card reader for access controller/time and attendance recorder.
• Built-in quartz real time clock for time recording, and time based time zone, holiday controls.
• RS -232C interface to a single reader, and RS-422 or RS-485 interfaces selectable for polling up to hundred of readers.
• Could connect TCP/IP converter for global networking.
• Provides 6,000 attendance / access transactions and 9,999 personal map.
• All models with compatible communication protocols to be controlled by personal computer through PCP832-XX multi-controller.
• Personal map, time zone map & door release time ? etc management.
• Database in access could be saved in TXT, HTML format or transfer to variety format too.
• There are 144 bell schedules ( 6 schedules per hour ) can be programmed for periodic bell announce, 8 time zones for personal time zone map, 8 time zones for auto duty.
• User card can be added/deleted in single or block range cards.
• 79 user definable duty code names could be displayed.
• It means each person with different operation mode.
• Provides door driver output, exit push button and door release input, alarm and tamper switch output.
• Low power consumption, CPU with watchdog function.
• The transactions can be kept in the controller for 10 years while power failure.

Operation modes

• Card only.
• Card and PIN code.
• Card no. and PIN code.
• Operation mode defined by time zone.
• Mix personal operation mode. ( Optional )

We reserve the right to change the specification without prior notice or obligation!
