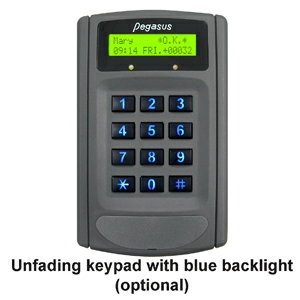

Dual Frequency Time Attendance Recorder and Access Controller

Product Description

PP-6750V is an intelligent time recording terminals designed to meet variant applications in time attendance and access control, lift control & ARM/DISARM security requirements. Each terminal can be operated independent simply or through PC/Internet adapter PC-T100 to fulfill the multiple doors access system. The recording terminal includes nearly all the necessary functions for time recording and access control with bountiful manual & PC executed commanded functions as well as friendly operation commanded for manual operation.

Dual frequency (EM / Mifare) time attendance recorder and access controller.

Features

Features for time recording application

• Selectable batch or real time operation mode.
• 79 duty codes, duty name defined by PC.
• Possible in 8 digits ID for time attendance recording.
• Totally 192 alarm schedules (8 schedules per hour) dry contacts output for periodic belling.
• Could collect data by real time or one by one events or massive block dump.
• High capacity with 8 digits card number. ( Either checking or without checking personal map )

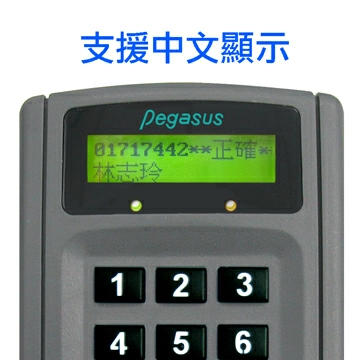

• 16*2 rows of LCD display with 8 digits for displaying year, month, day, week, time & events counter.

Main features for access control application

• Up to 90 codes 4 digits door PIN.
• Setting door monitoring time becomes second unit or minute unit. Up to 98 minutes.
• Setting door release time becomes second unit or minute unit. Up to 97minutes.
• System parameters and personal access map can be downloaded by PC or manually programmed through keypad.
• The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.
• Excellent multiple operation modes :(1) Card only (2) Card + PIN (3)Door PIN only  (4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones.
• All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
• Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC or by manual thru. single / block range card number or by directly reading card thru. learning mode.
• Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.
• With complete door release, held monitoring and intruded alarm period and error trials.
• Supports 8/24/48/64/96 floors lift access control
• Full APB (anti-passback), time zone.
• Could dump all personal map in system by single PC or manual command.

Specifications

• Dimensions : 137(L) x 85(W) x 29(H)mm
• Weight : 340g± 5%
• Power supply : DC 12V±10%, 80mA~100mA (not include power requirement for lock & alarm)
• Transmission rate : Default 9,600 bps N,8,1(2,400/4,800/19,200bps)(38,400)
• Operating temperature : 0℃ ~ 70℃
• Operating humidity : 10%~90%

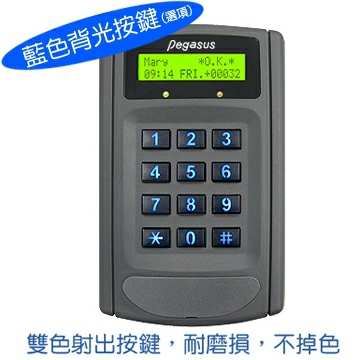

• Keypad : 3 × 4 keypad for system programming, pass word entry or duty code selection.
• Password : Programmable 4 digits PIN for each person
• Serial interface : RS-485
• Card standard : 125KHz ASK EM / 125KHz FSK / 13.56MHz Mifare (ISO 14443A , ISO 14443B, ISO 15693) / 13.56MHz Felica (ISO 18092 UID) / Q type
• External reader:With one or optional two port for external Wiegand (26/34 bits definable by command) & ABA input(by order)

Serial output

• For connection with serial printer.
• To drive DDR (digital door relay) for secure assess control function.
• To drive 8/24/48/64 relay output modules for lifts access control
• Bountiful application functions requested by customer

Events/ Card capacity

• K Series: 1,000 card capacity,500 events.
• L Series: 2,000 card capacity,1,000 events.
• M Series: 30,000 card capacity,10,000 events.
• N Series: 11,000 card capacity,32,000 events.
• P Series: 11,000 card capacity,8,000 events.
• X Series: 32,000 card capacity, 32,000 events.

※ Other capacity combination requested by order
※ Support customized card.

Mifare is a registered trademark of NXP B.V.

FeliCa is a trademark of Sony Corporation.

We reserve the right to change the specification without prior notice or obligation!
