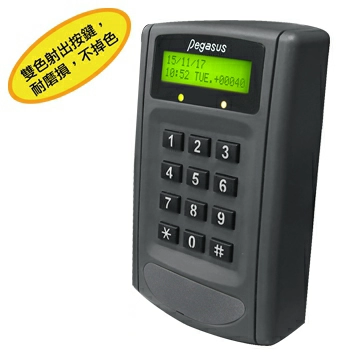

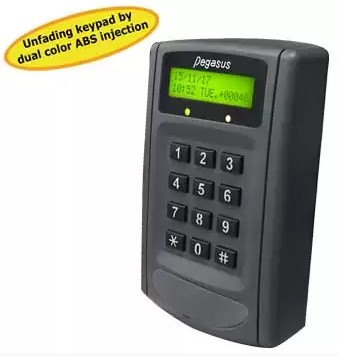

Model：PP-6750V
Multi-Function Networked controller
Product
Features
- Single door (one-way or two-way control)
- Classic Graphic Display Multi-Function Controller
- Support 32000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Multiple access method: Card only, PIN code only(DIM series : 4-Digit PIN Code), Card with PIN code
- IP55 weatherproof for indoor/outdoor use
Specification
| Model No | PP-87P-6D-K | PP-87N-6D-K PP-87VX/N |
PP-87/M0-6D-K PP-87VXM0 |
PP-87M3 |
| Frequency | 125 KHz ASK | 125 KHz ASK | 13.56 MHz | M3 Applied with Anti-duplicate card |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, Pegasus Format | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC Tag | |
| User Capacity | 2,000 (PP-87VX: 32,000) | |||
| Power Voltage | DC 12V | |||
| Input | Reader / Exit push button / Door monitor / Security sensor | |||
| Output | Door output / Alarm output / Printer output / Tamper switch output | |||
| Keypad | Plastic keypad | |||
| Material | ABS | |||
| Dimensions (L x W x H) | 116 x 81 x 30 mm | |||
| IP Rating | IP54 | |||

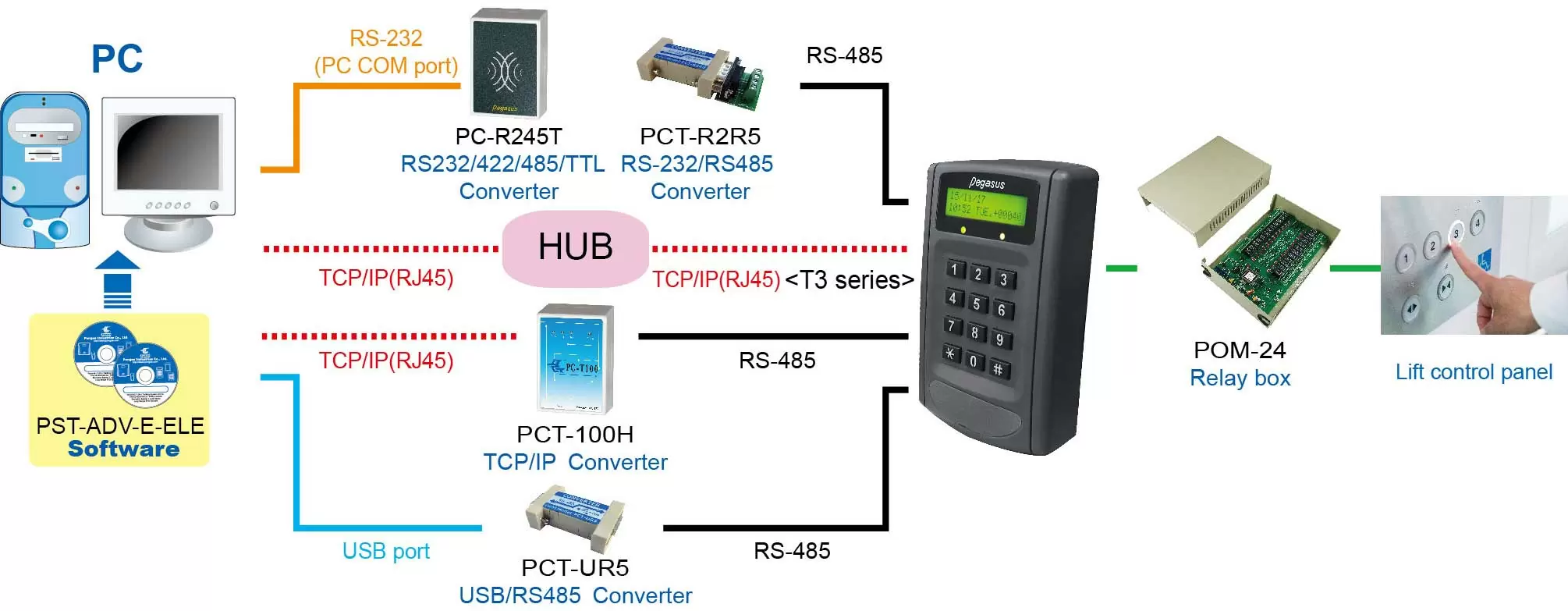

Lift access control system

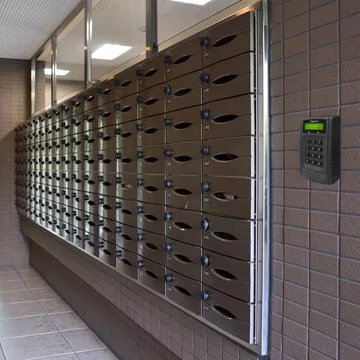

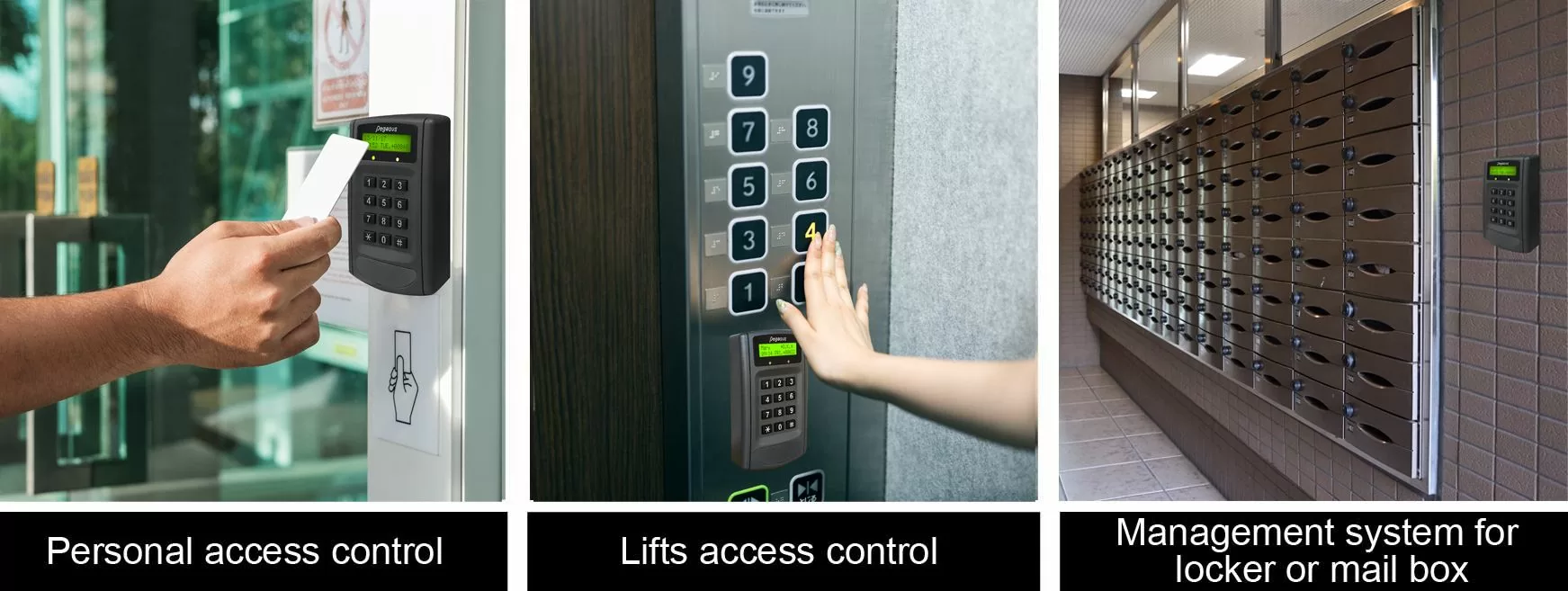

Application field

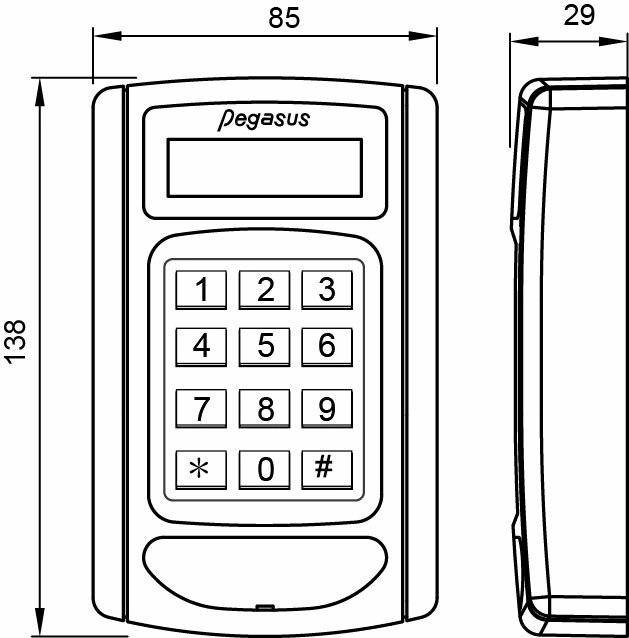

Dimension: mm
Ordering information
| PP-6750VXHR5 | H.I.D. controller&reader,32000 users,32000 events,RS485 |
|---|---|
| PP-6750VXM0JR5 | Mifare UID&J Type controller&reader,32000 users,32000 events,RS485 |
| PP-6750VXM0NR5 | Mifare UID&EM controller&reader,32000 users,32000 events,RS485 |
| PP-6750VXM0R5 | Mifare UID controller&reader,32000 users,32000 events,RS485 |
| PP-6750VXM8R5 | Mifare controller&reader,32000 users,32000 events,RS485 (Pegasus Key) |
| PP-6750VXNR5 | EM controller&reader,32000 users,32000 events,RS485 |
| PP-6750VXNR5T3 | EM controller&reader,32000 users,32000 events,RS485, TCP/IP |
| PP-6750VXM3R5 | M3 Access controller & reader, 32000 users, 32000 events, RS485(Applied with Anti-duplicate card) |
| PP-6750VXNR5T3-DIM | EM Controller&Reader, 32000 users&events, 9999 4-Digit PIN Code, RS485 & TCP/IP |
| PP-6750VXHR5T3-DIM | H.I.D. Controller&Reader, 32000 users&events, 9999 4-Digit PIN Code, RS485 & TCP/IP |
| PP-6750VXM0R5T3-DIM | Mifare UID Controller&Reader, 32000 users&events, 9999 4-Digit PIN Code, RS485 & TCP/IP |
| PP-6750VXM3R5T3-DIM | M3 Controller&Reader, 32000 users&events, 9999 4-Digit PIN Code, RS485 & TCP/IP (Applied with Anti-duplicate card) |
| PP-6750VXFR5T3-DIM | Felica Controller&Reader, 32000 users&events, 9999 4-Digit PIN Code, RS485 & TCP/IP |
| PP-6750VL/M0R5-TFO | Mifare UID controller&reader, 2000 users,1000 events,RS485,ARM/DISARM Security System |
| PP-6750VXM0R5-ALD | Mifare UID controller&reader, 32000 users,32000 events,RS485,Toggle in/out status |
| PP-6750VX/M1R5-ARC | Mifare controller&reader,32000 users,32000 events,RS485,(Pay-per-daily) |
| PP-6750VX/M1R5-FLV | Mifare controller&reader,32000 users,32000 events,RS485,(Pay-per-use) |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
