Model：PP-6750VB
Bluetooth Time Attendance Recorder and Access Controller
Compare
Product
System configuration
Lift access control system
Product Description
PP-6750V is an intelligent time recording terminals are designed to meet variant applications in time attendance and access control, lift control & ARM/DISARM security requirements. Each terminal can be operated independent simply or through PC communication RS-485 / TCP/IP to fulfill the multiple doors access system. The recording terminal includes nearly all the necessary functions for time recording and access control with bountiful manual & PC executed commanded functions as well as friendly operation commanded for manual operation.
- Supported Multi-frequency (125KHz ASK, FSK / 13.56MHz) time attendance recorder and access controller. (by optional)
- Unfading keypad by dual color ABA injection, unfading keypad with backlight. (Optional)
- With Freescale CPU supported working temperature -55~155℃
- Switching on alarm automatically, if failed input password for three times and warning management to avoid illegal entrance.
- Relay supported with shockproof, to avoid illegal open door entrance.
- Supported macro command to simplify access control & lift access setting.
- Remote Open Door APP function.
- For higher security, our M3 series is applied with anti-duplication HF card.

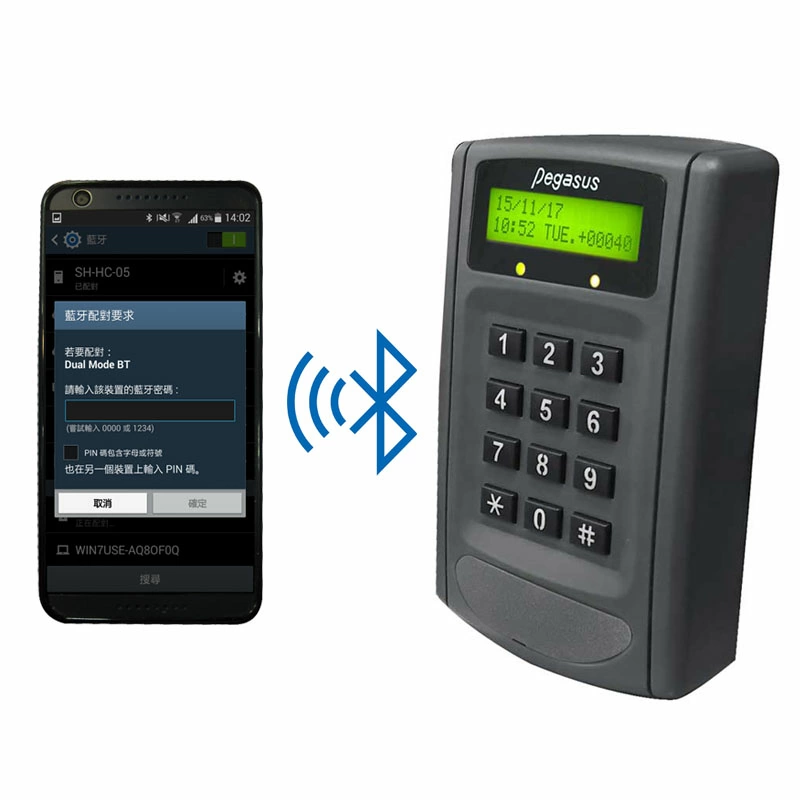

- Supported Bluetooth function.
- Supported NFC function.(Optional)
- Free SDK available.
Features
Features for time recording application
- Selectable batch or real time operation mode.
- 79 duty codes, duty name defined by PC.
- Possible in 8 digits ID for time attendance recording.
- Totally 192 alarm schedules (8 schedules per hour) dry contacts output for periodic belling.
- Could collect data by real time or one by one events or massive block dump.
- High capacity with 8 digits card number. ( Either checking or without checking personal map )
- 16*2 rows of LCD display with 8 digits for displaying year, month, day, week, time & events counter.
Main features for access control application
- Up to 90 codes 4 digits door PIN.
- Setting door monitoring time becomes second unit or minute unit. Up to 98 minutes.
- Setting door release time becomes second unit or minute unit. Up to 97minutes.
- System parameters and personal access map can be downloaded by PC or manually programmed through keypad.
- The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.
- Excellent multiple operation modes :(1) Card only (2) Card + PIN (3)Door PIN only (4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones.
- All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
- Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC or by manual thru. single / block range card number or by directly reading card thru. learning mode.
- Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.
- With complete door release, held monitoring and intruded alarm period and error trials.
- Supports 8/24/48/64/96 floors lift access control.
- Full APB (anti-passback), time zone.
- Could dump all personal map in system by single PC or manual command.
Dimension: mm
Ordering information
| PP-6750VL/M0BR5 | Bluetooth, Mifare UID controller&reader, 2000 users,1000 events,RS485 |
|---|---|
| PP-6750VL/NBR5 | Bluetooth, EM controller&reader, 2000 users,1000 events,RS485 |
| PP-6750VP/M0BR5 | Bluetooth, Mifare UID controller&reader, 11000 users,8000 events,RS485 |
| PP-6750VP/NBR5 | Bluetooth, EM controller&reader, 11000 users,8000 events,RS485 |
Mifare is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Specification
Dimensions
137(L) x 85(W) x 29(H)mm
Operating temperature
-20℃ ~ 70℃
Weight
340g± 5%
Transmission rate
Default 9,600 bps N,8,1(2,400/4,800/19,200bps)(38,400)
Keypad
3 × 4 keypad for system programming, pass word entry or duty code selection.
Power supply
DC 12V±10%, 80mA~100mA(not include power requirement for lock & alarm)
Password
Programmable 4 digits PIN for each person
Serial interface
RS-485
Operating humidity
10%~90%
External reader
With one or optional two port for external Wiegand (26 & 34 bits definable by command, 32/36/40/42/25/35/37bits(Optional)) & ABA input(by order)
Serial output
1. For connection with serial printer. 2. To drive DDR (digital door relay) for secure assess control function. 3. To drive 8/24/48/64 relay output modules for lifts access control 4. Bountiful application functions requested by customer
Events/ Card capacity
X Series: 32,000 card capacity, 32,000 events. Other capacity combination requested by order
Card standard
125KHz ASK EM / 125KHz FSK / 13.56MHz Mifare (ISO 14443A , ISO 14443B) / 13.56MHz ISO 15693 / 13.56MHz Felica (ISO 18092 UID) / Q type / NFC Tag ※ Support customized card.
