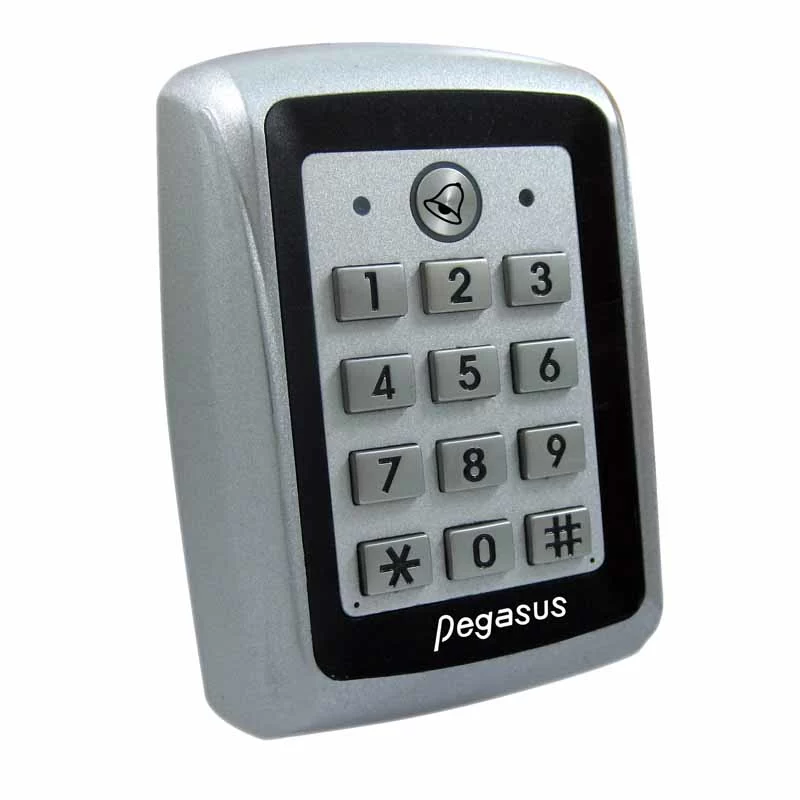

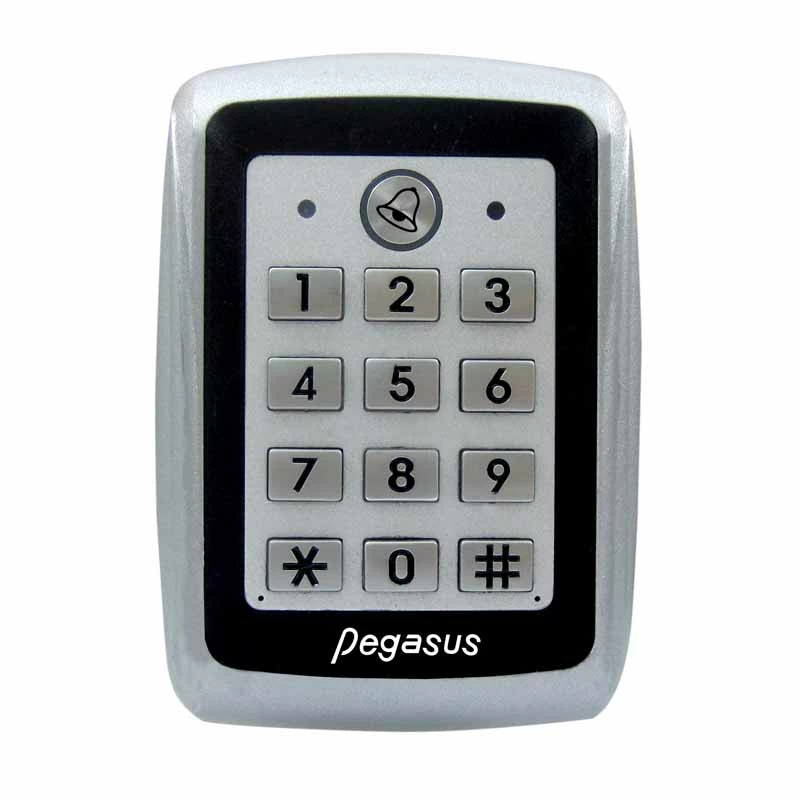

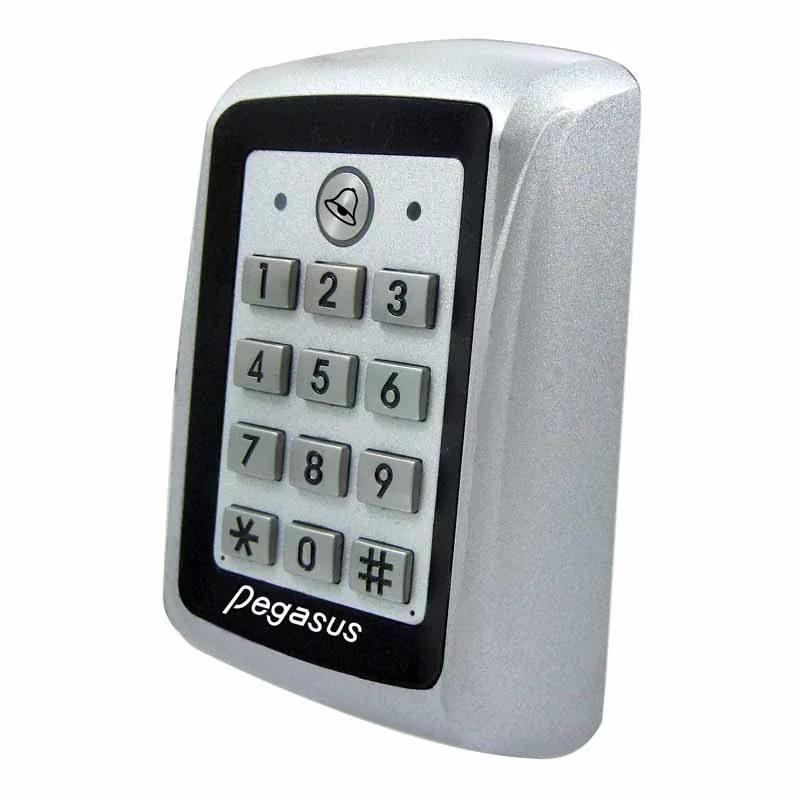

Model：PZ-85
Vandal Resistant Networked controller
Product
Features
- Single door (one-way or two-way control)
- Vandal Resistant Proximity Controller, Protection by zinc alloy housing.
- Support 32000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Multiple access method: Card only, PIN code only(DIM series : personal code), Card with PIN code
- IP54 weatherproof for indoor/outdoor use
Specification
| Model No | PZ-85XNR5 PZ-85VXNR5-DIM |
PZ-85XM0R5 | PZ-85XM0R5 |
|---|---|---|---|
| Frequency | 125KHz ASK | 13.56MHz | 13.56MHz |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) |
ISO18092 FeliCa |
| User Capacity | 32000 card capacity ; 32000 events DIM series : 9999 card capacity ; 32000 events |
||
| Power Voltage | DC 12V | ||
| Interface | RS-485 / RS-232(Optional) | ||
| Wiegand Input | Wiegand (26/34 bits) | ||
| Input | Exit push button / Door monitor / Security sensor | ||
| Output | Alarm output / Tamper switch output / Electric lock output | ||
| Material | Zinc Alloy | ||
| Dimensions (LxWxH)mm |
119 x 84 x 32 mm | ||
| IP Rating | IP54 | ||

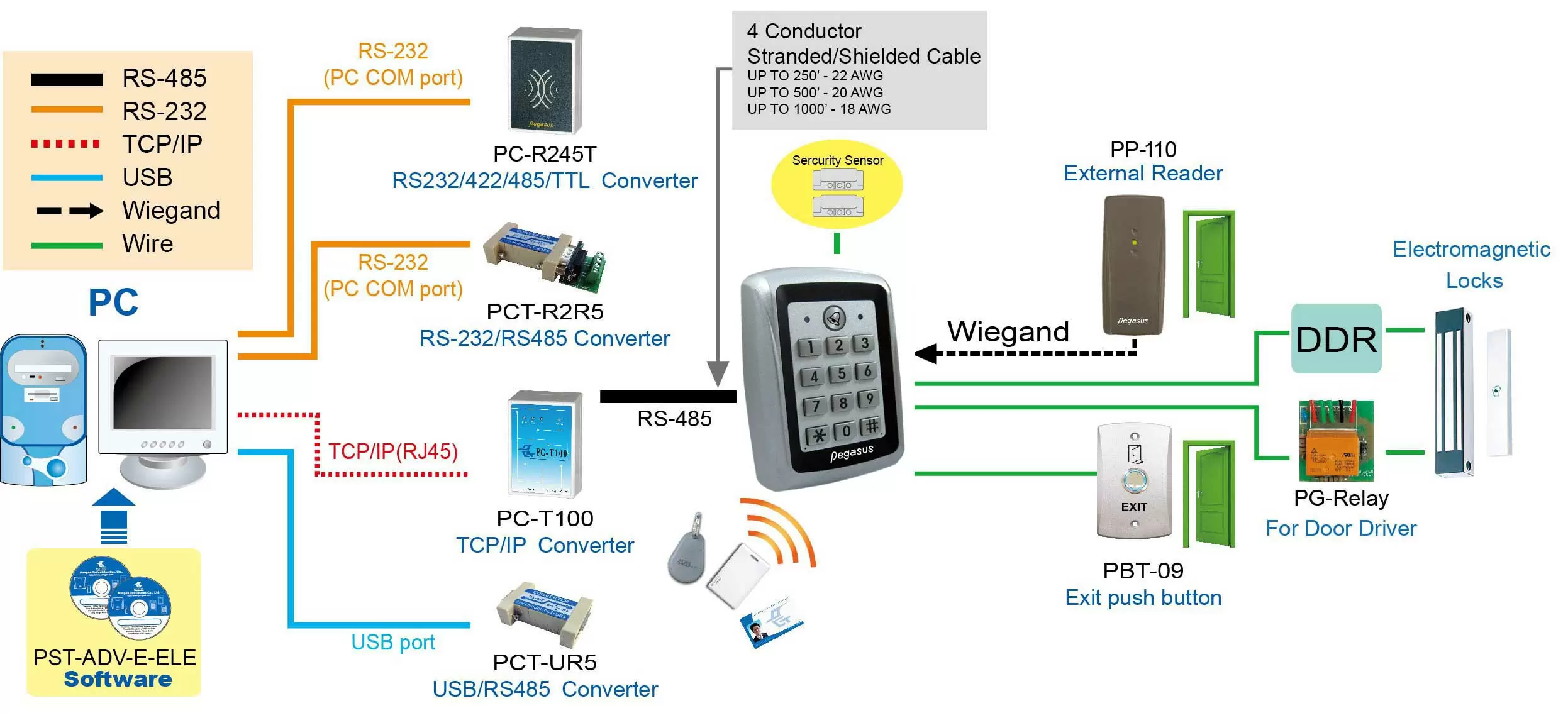

System configuration
Lift access controller system

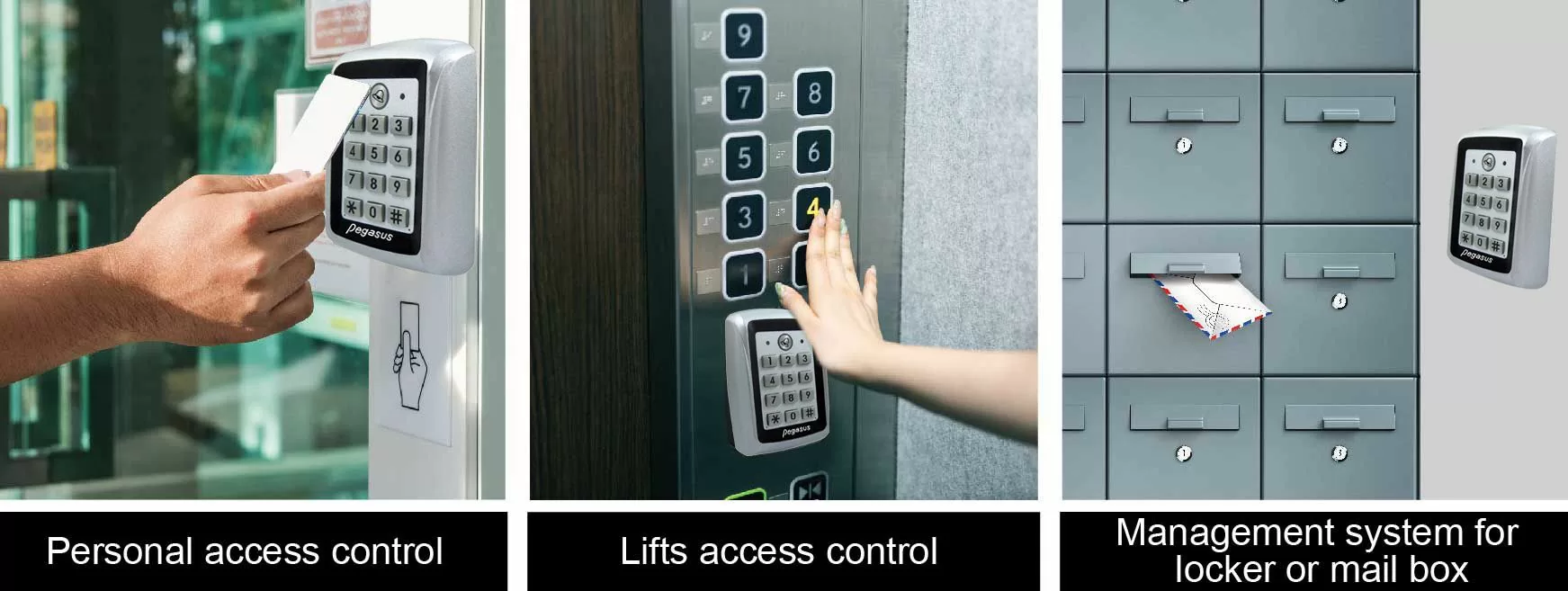

Application field

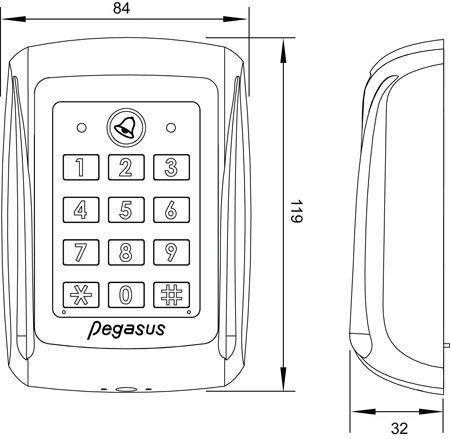

Dimensions : mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
