2.4GHz Long Range Active RFID Solutions

Features

• Hands-Free access, Long Range Identification
• Anti-collision function that simultaneously reads multiple cards (Up to 80 cards)
• Reduced unnecessary belongings such as keys and petty cash

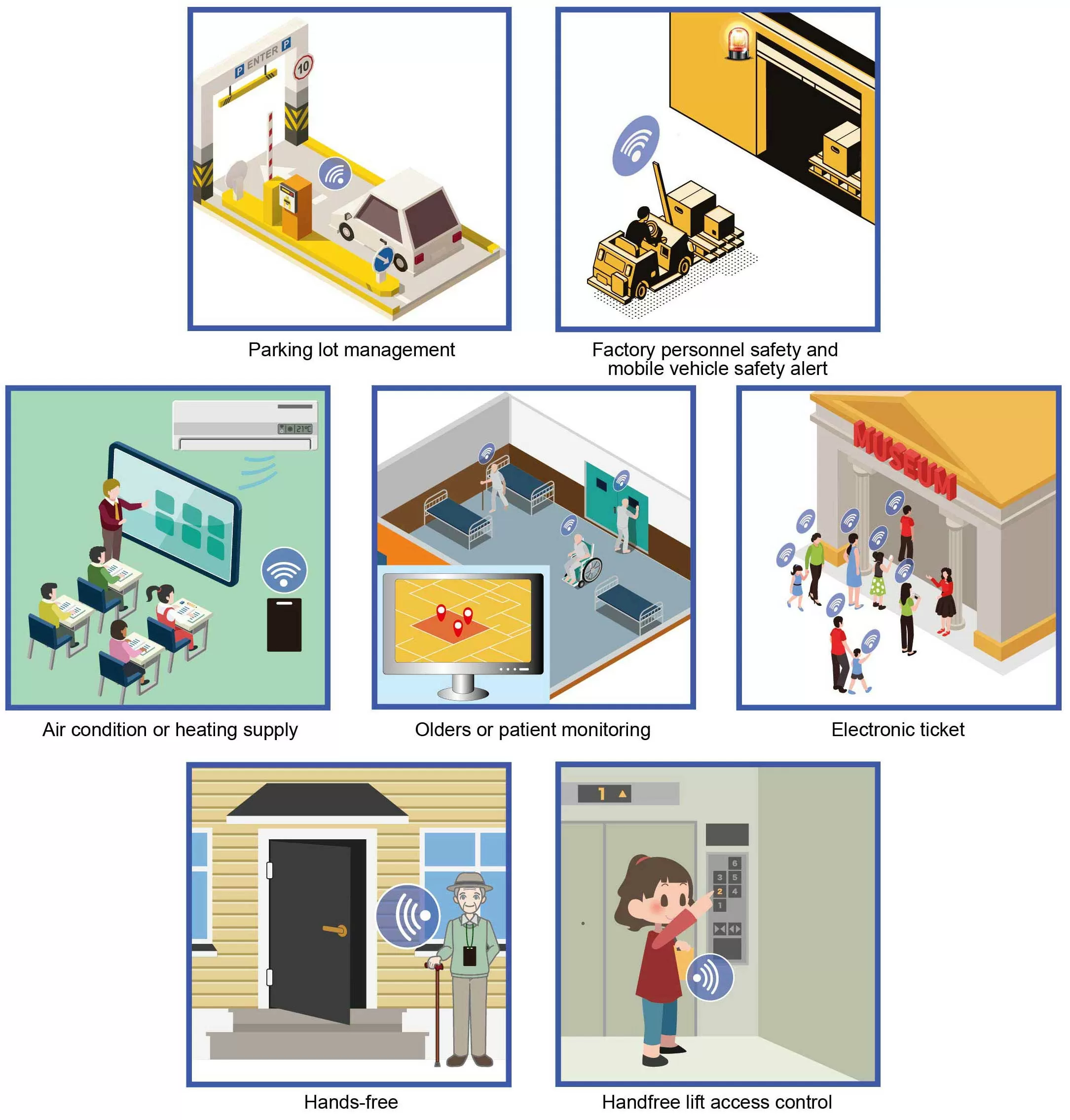

• Applications in Time & Attendance, Automation System, Logistics, Parking system,
  Personnel and Vehicle Safety Alert
• Applications in Residential Area: Lobby – Hands-free Access, Mailbox –Automatically unlock, Lift – Automation System with high security

Specification

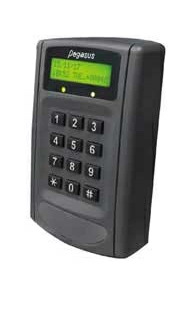

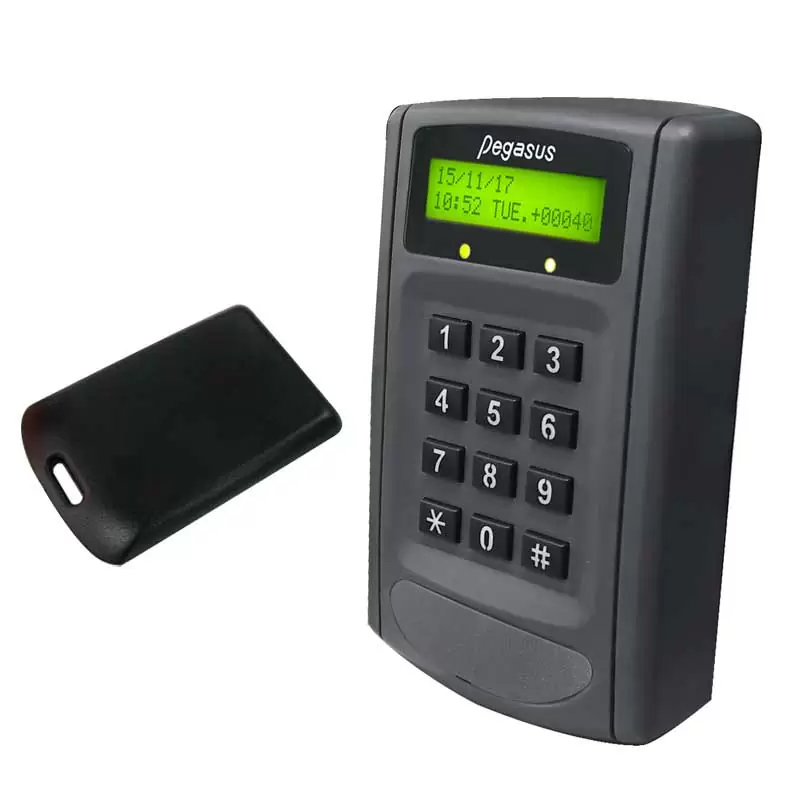

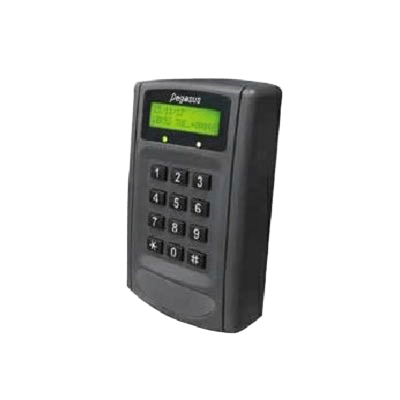

Model No	PFH-6750V (2.4GHz Active Controller )
Identification Angle	Horizontal 360, vertical 360
Reading Range	≧15M
Power Voltage	DC 12V±10%, 98mA(Standby) / 120mA(Operating)
Interface	RS-485 / RS-232(Optional)
Wiegand Input	Wiegand (26/34 bits)
MATERIAL	ABS
Dimensions(LxWxH)mm	137 x 85 x 29

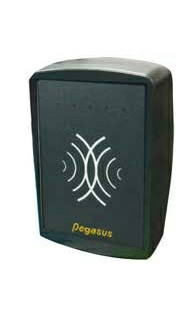

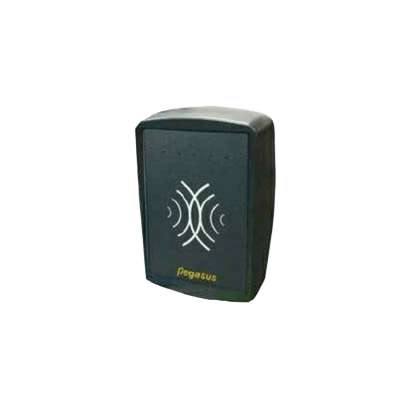

Model No	PFH-5210 (2.4GHz Active Reader)
Reading Range	≥15M(Depending on the environment)
Power Voltage	DC 12V±10%, 23mA(Standby) / 29mA(Operating)
Format	Wiegnad 26/34 bit, RS-485, RS-232 (can be interfaced with Pegasus or other standard access controller)
Material	ABS
Dimensions(LxWxH)mm	122 x 85 x 32
Model No	PFH-240 (2.4G Active Card)
RF Power	<1mW
Data Rate	≦2Mbps
Reading range	≥15M
Operating Mode	Reading only, with Anti-Collision
Capable of battery	Battery (CR2032)x 4 pieces
Material	PC
Dimensions(LxWxH)mm	87 x 55 x 7

Ordering information

PFH-6750VX/R5	2.4G Active RFID Access Control / Reader, Reading Range 15m
PFH-6750VXR5S3	2.4G Active RFID Access Control / Reader, Reading Range 3m
PFH-6750VXR5S5	2.4G Active RFID Access Control / Reader, Reading Range 5m
PFH-5210W	2.4G Reader, Wiegand 26/34bit & UART(TTL)
PFH-5210WS3	2.4G Reader, Wiegand 26/34bit & UART(TTL), Reading Range 3m
PFH-5210WS5	2.4G Reader, Wiegand 26/34bit & UART(TTL), Reading Range 5m
PFH-5210WR2	2.4G Reader, Wiegand 26/34bit & UART(TTL), RS-232
PFH-5210WR5	2.4G Reader, Wiegand 26/34bit & UART(TTL), RS-485
PFH-5210WT	2.4G Reader, Wiegand 26/34bit & UART(TTL), TCP/IP
PFH-240	2.4G Active Card
PST-ADV-E-ELE	Access Control / Time & Attendance Software



Specifications subject to change without notice for further modification.
