Model：PK-UHF101U
UHF 868MHz, 928MHz Long Range RFID Reader And Writer
Compare
Product
Product Description
PK-UHF101U is one of high-performance long range UHF reader, combining proprietary signal processing algorithms and efficient, with a high recognition rate processing performance and fast read and write, can be widely used in logistics, parking systems, access control systems, security systems and production process control, and other radio frequency identification (RFID) systems. In Pongee, you can also find other high-quality long range UHF reader!
- Protocol comply with UHF EPC Gen2(ISO18000-6C), ISO 18000-6B standard.
- Working frequency 902～928MHz(PK-UHF101U) / 865～868MHz(PK-UHF101E)
- Support adjustable frequency range (FHSS) or fixed specific working frequency.
- Power output 0-30dBm (adjustable)
- Built-in 8dBi linear polarized antenna as choice；Reading range 3~8M＊.
- Support operation Modes as Answer, Active, Trigger mode.
- Low power design, Input Power: DC +9V.
- Support RS-232, RS-485, Wiegand 26/34 Interface. Optional TCP/IP, POE, Wifi.
- * Effective distance depends on antenna, tag and environment.

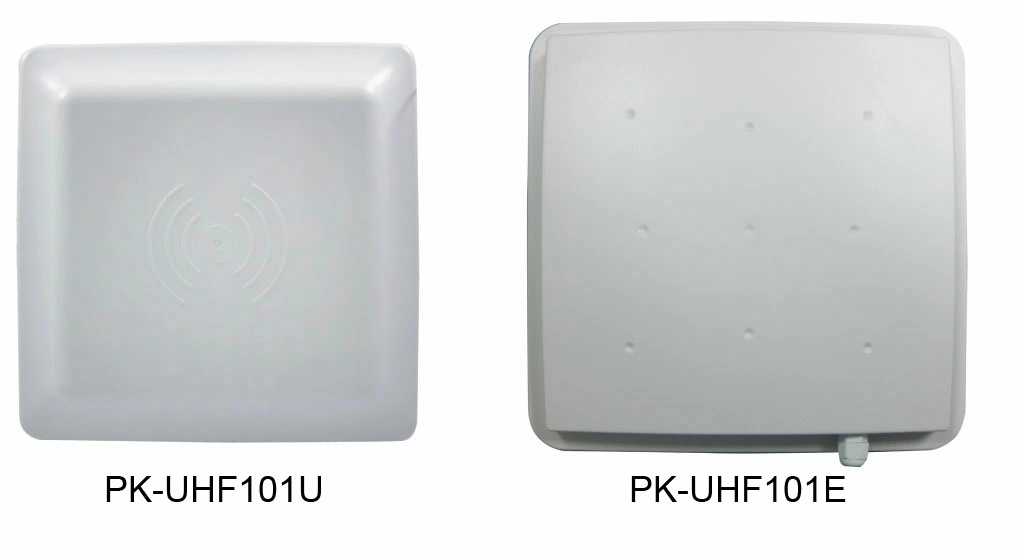

Appearance
UHF Label / Card
| Appearance |  |
 |
Card
|
| Model No. | PG-PROXL-6C-B2 | PG-PROXL-UHF-6C-A-B3 | PG-PROXC-UHF-B1 |
| Dimension(L x W)mm | 105 x 6.5 | 110 x 45 | 85 x 54 x 1 |
| Appearance |  |
 |
Anti-metal
|

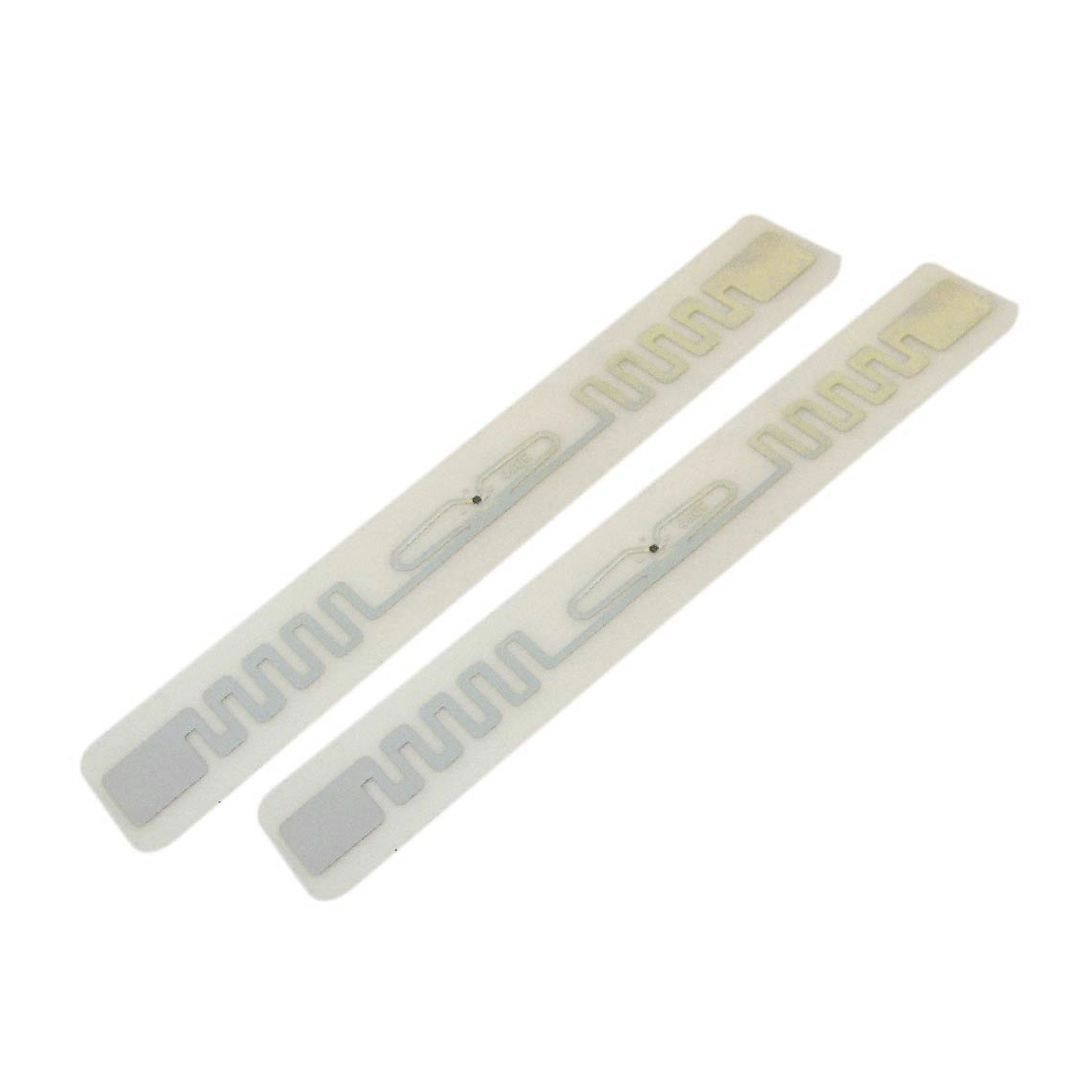

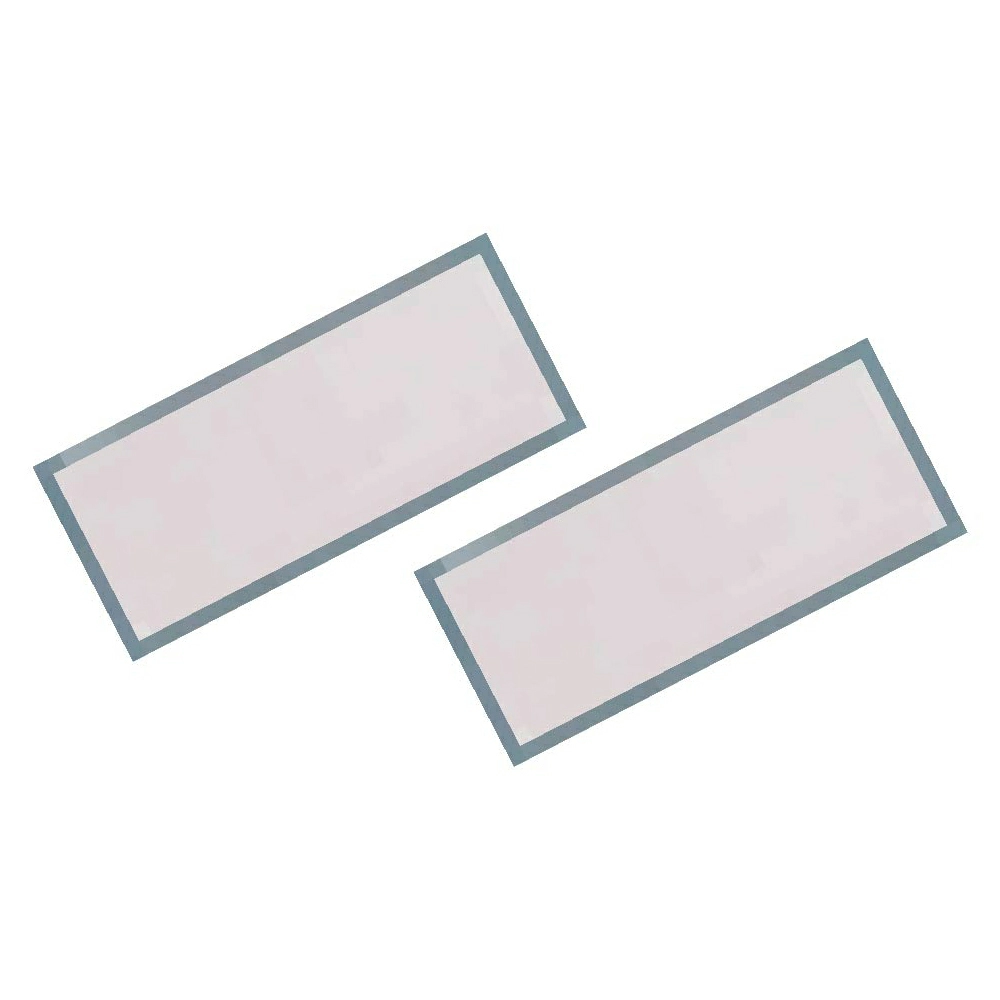

| Model No. | PG-UHFLW9811-B3 | PG-PROXL-6C-2-B1 | PG-UHFTM6025-B3 |
| Dimension(L x W)mm | 98 x 11 | 95 x 21 | 60×25 |

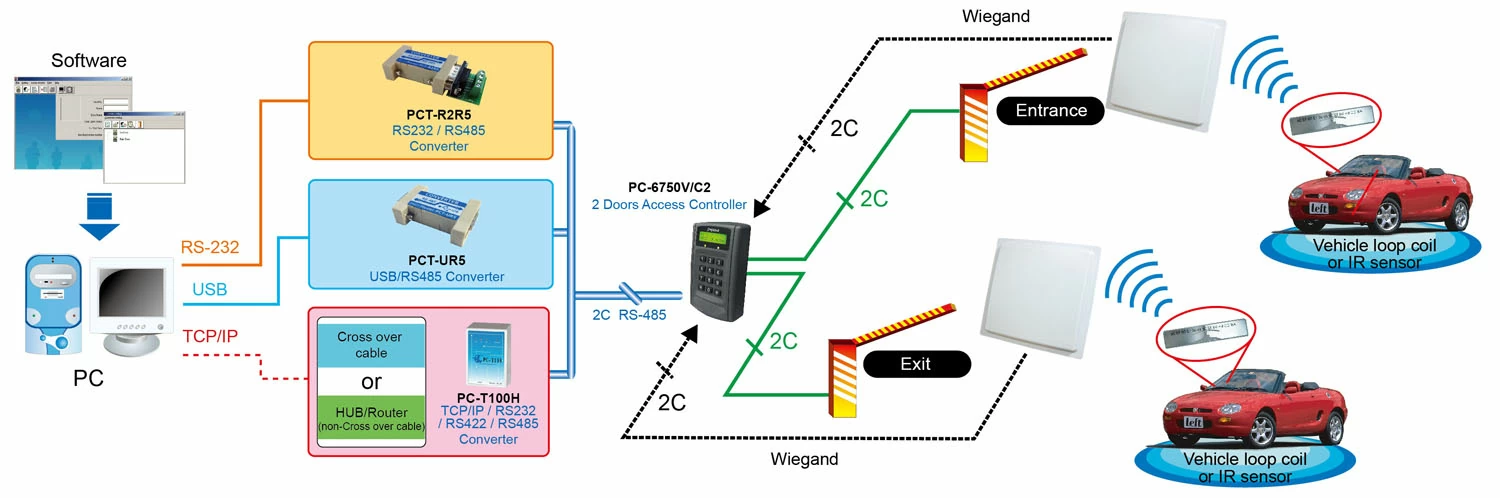

System Configuration
Optional Accessory

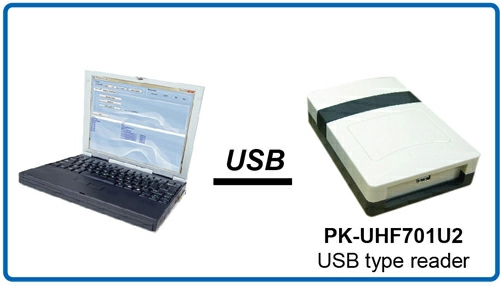

USB type reader support easier ID number collection & registration for access control system.

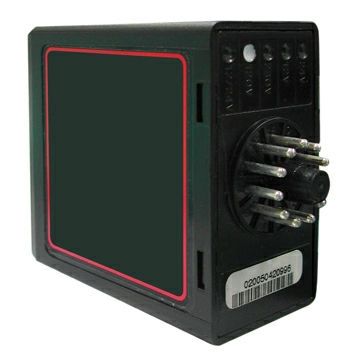

Vehicle loop detector: PK-PD-232

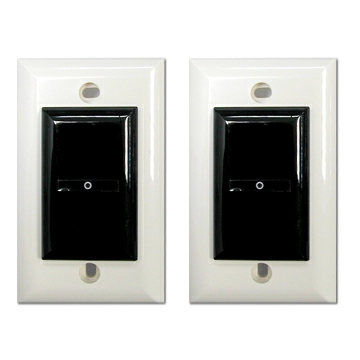

IR sensor: LK-12HD
How to assembly

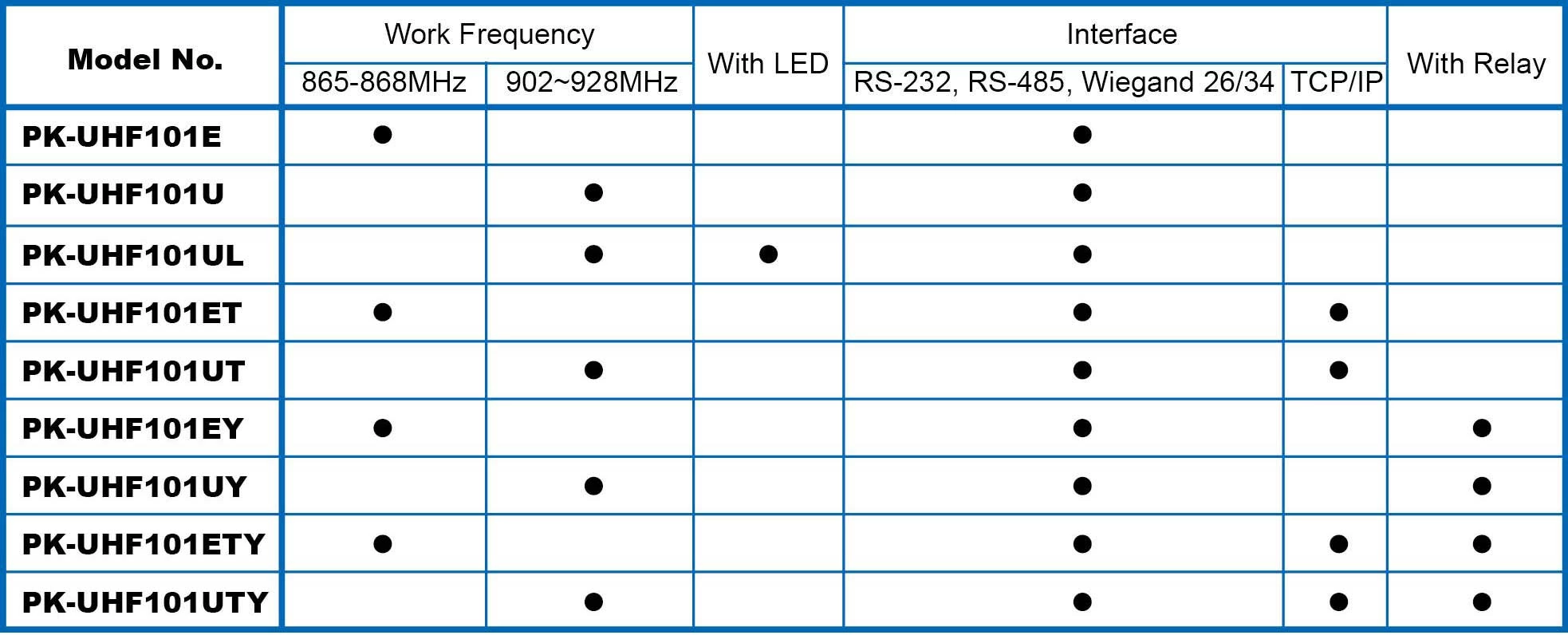

Ordering information
We reserve the right to change the specification without prior notice or obligation!
Specification
Net Weight
PK-UHF101U : 900g / PK-UHF101E:900g
Power consumption
1W
Humidity
80%
Read range
3~8m
Interface
RS232, RS485, wiegand 26/34(TCP/IP,Wifi can be customized）
Antenna
Built-in 12dBi linear polarized antenna (optional for circular antenna)
Protocol
ISO18000-6B, EPC Class 1 Gen2(ISO18000-6C)
Protection Grade
IP54
Work Frequency
Standard ISM 865-868MHz(PK-UHF101E), 902~928MHz(PK-UHF101U)
Frequency Hopping
FHSS
Power Output
0-30dBm(adjustable)
Operating Mode
Answer,Active,Trigger
Write Range
0~6m
Reading Clue
Buzzer
Input Power
100-240V,DC+9V (Power Adapter)
Operation Temp
-25°C~+60°C
Storage Temp
-25°C~+80°C
Regulatory
Compliant with CE,FCC
Dimension(L x W x H)mm
PK-UHF101U:230 x 230 x 57 / PK-UHF101E:255 x 255 x 35
Gross Weight
PK-UHF101U : 1700g / PK-UHF101E:2210g
