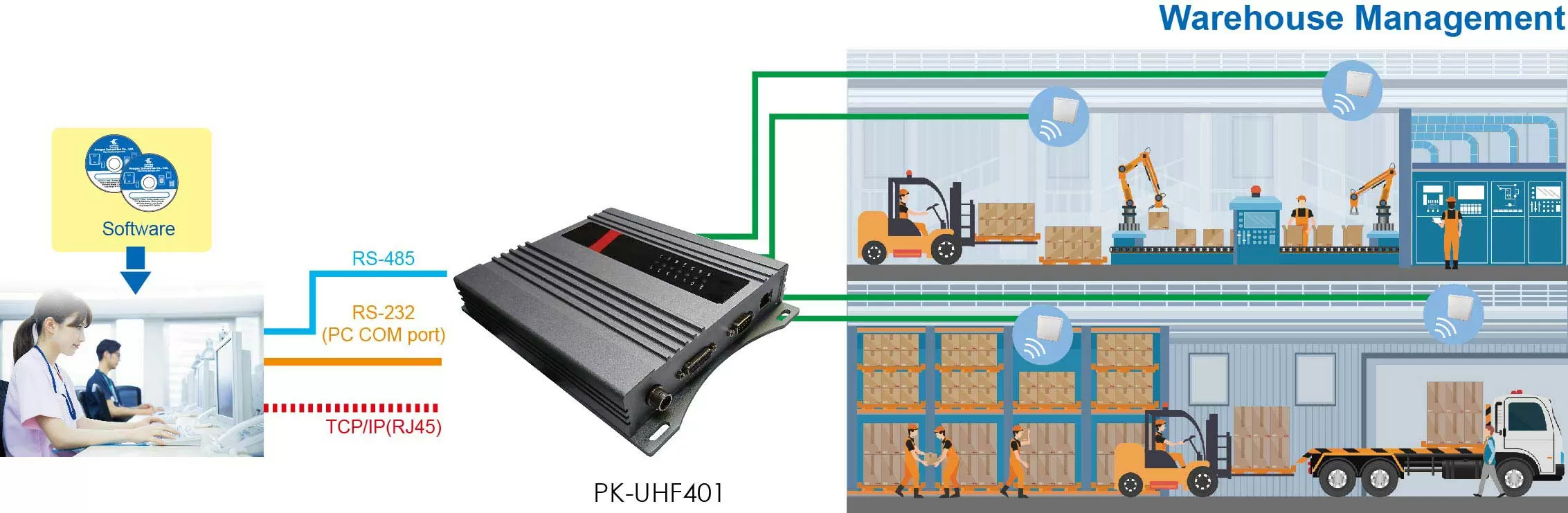

- PK-UHF401 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
- Provide Demonstration software and SDK for further development.
| Banking Management | Retail Management | Vehicle Management | Chip timing |
 |
 |
 |
 |
We reserve the right to change the specification without prior notice or obligation!

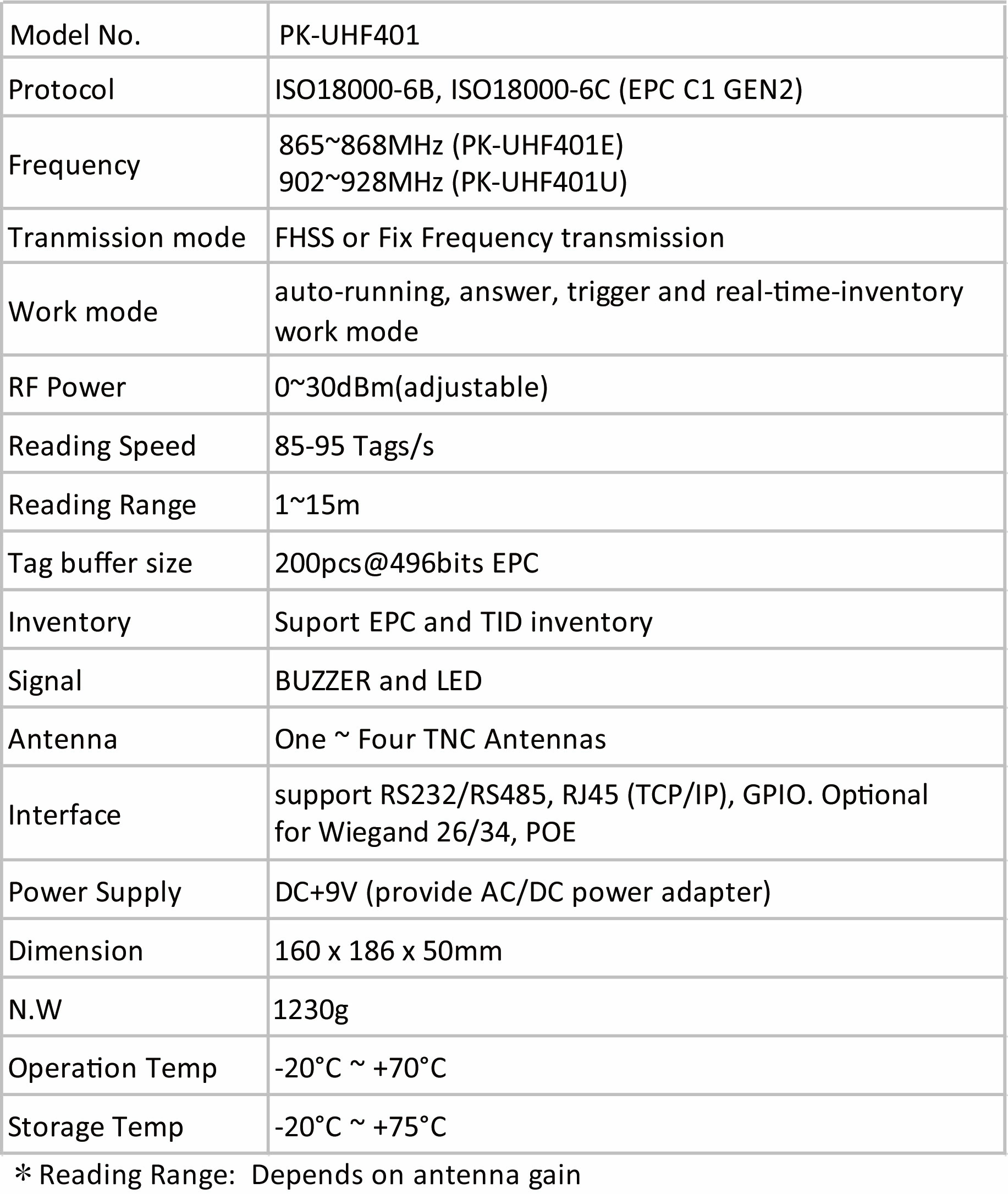

Specification
Model No
PK-UHF401
Protocol
ISO18000-6B, ISO18000-6C (EPC C1 GEN2)
Frequency
865~868MHz (PK-UHF401E) / 902~928MHz (PK-UHF401U)
Working Mode
Tranmission mode：FHSS or Fix Frequency transmission
Work mode
Auto-running, answer, trigger and real-time-inventory work mode
RF Power
0~30dBm(adjustable)
Reading technology
Reading Speed：85-95 Tags/s
Reading range
1~15m ( Depends on antenna gain )
Tag
Tag buffer size：200pcs@496bits EPC
System Support
Inventory：Suport EPC and TID inventory
Signals
BUZZER and LED

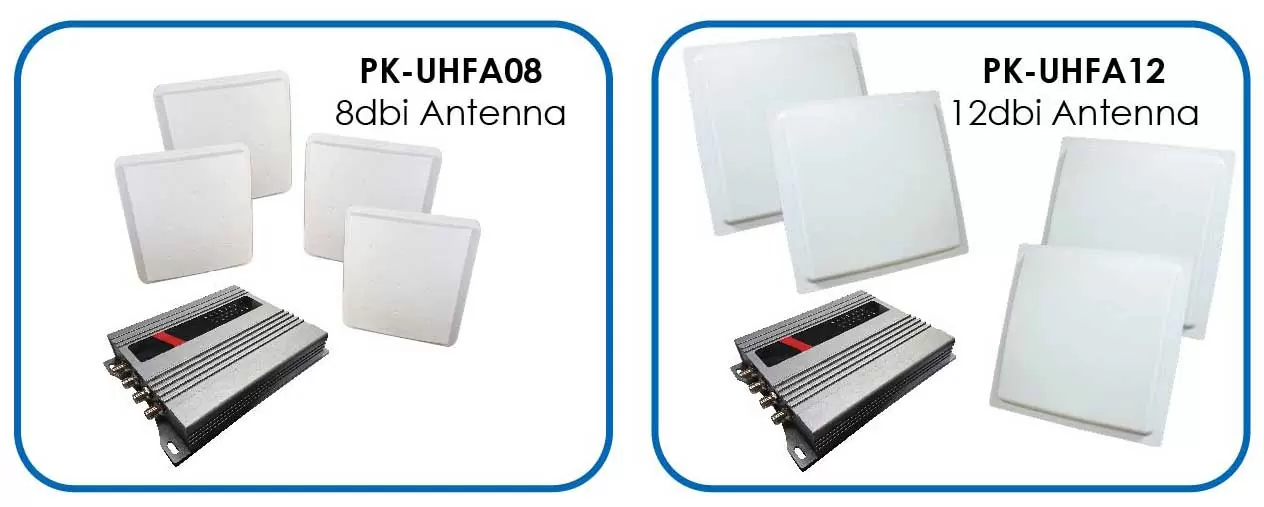

Antenna
One ~ Four TNC Antennas
Interface
Support RS232/RS485, RJ45 (TCP/IP), GPIO. Optional for Wiegand 26/34, POE
Power supply
DC+9V (provide AC/DC power adapter)
Dimension
160 x 186 x 50mm
Net Weight
1230g
Operation Temp
-20°C ~ +70°C
Storage Temp
-20°C ~ +75°C
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
