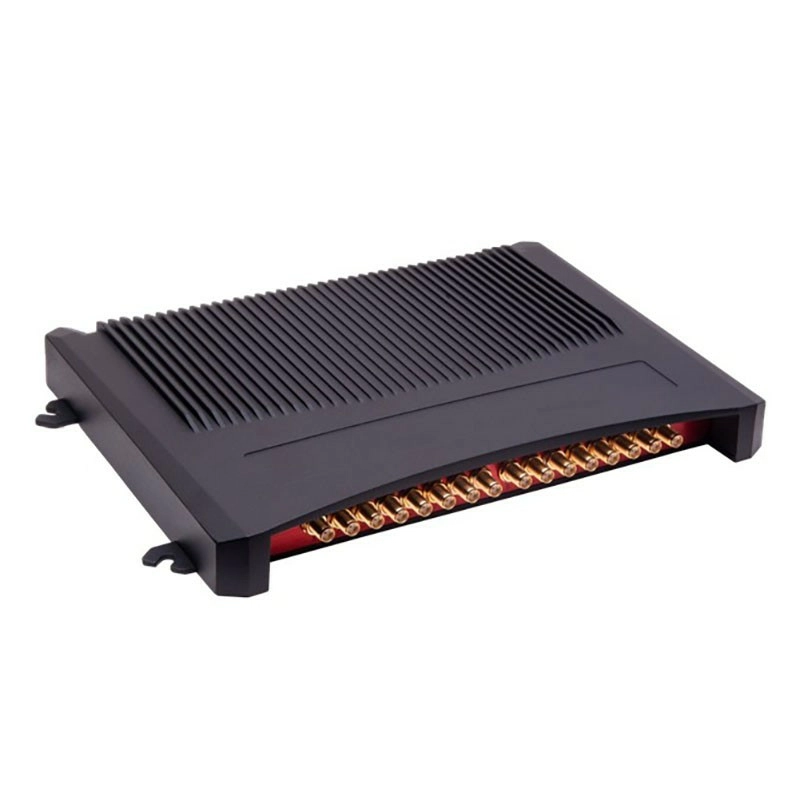

UHF High Performance Fixed Reader (16-Port)

Product Description

• PK-UHF4016 is a high-performance UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and industrial production process control systems.

Features

•  Self-intellectual property.
•  Designed with IMPINJ E710 and supports ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality.
•  865~868MHz/902~928MHz frequency band(frequency customization optional).
• FHSS or Fix Frequency transmission.
• RF output power up to 33dbm(adjustable).
• SMA sockets for 16 external antennae.
• Effective distance up to 12m*(with external 8dbi antenna and tag E41).
• Maximum inventory speed* up to 1000pcs/s.
• Support RSSI.
• Tag buffer size up to 1000PCS@96bits EPC.
• Low power dissipation with single +9 DC power supply, POE (Power over Ethernet) is optional.
• Support RS232, USB(Slave), RJ45 (TCP/IP), provide Wi-Fi and other interfaces for choice.
• High reliability design, meet the requirements of harsh working environment.
• Support on-the-site firmware upgrading.

We reserve the right to change the specification without prior notice or obligation!
