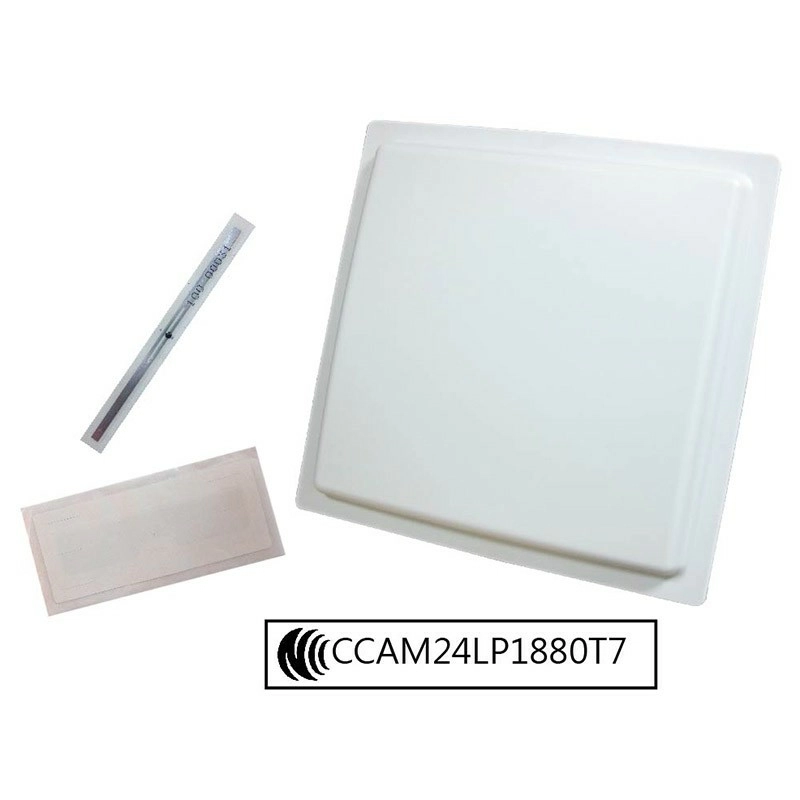

UHF 868MHz, 928MHz Long Range RFID Reader And Writer

Product Description

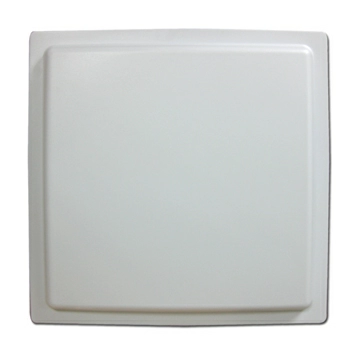

PK-UHF201 is one of high-performance long range UHF reader, combining proprietary signal processing algorithms and efficient, with a high recognition rate processing performance and fast read and write, can be widely used in logistics, parking systems, access control systems, security systems and production process control, and other radio frequency identification (RFID) systems.

Features

• Protocol comply with UHF EPC Gen2(ISO18000-6C), ISO 18000-6B standard.
• Working frequency 902～928MHz(PK-UHF201U) / 865～868MHz(PK-UHF201E)
• Support adjustable frequency range (FHSS) or fixed specific working frequency.
• Power output 0-30dBm (adjustable)
• Built-in 12dBi linear polarized antenna as choice；Reading range 25M＊.
• Support operation Modes as Answer, Active, Trigger mode.
• Low power design, Input Power: DC +9V.
• Support RS-232, RS-485, Wiegand 26/34 Interface. Optional TCP/IP, POE, Wifi.
• * Effective distance depends on antenna, tag and environment.

Specifications

UHF Label / Card

Appearance			Card

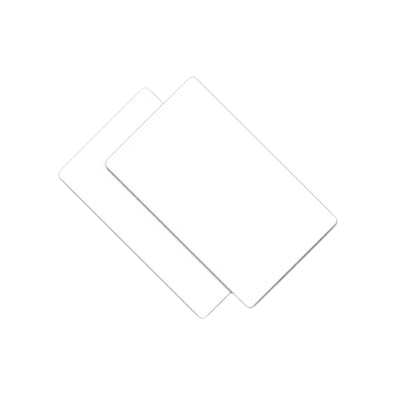

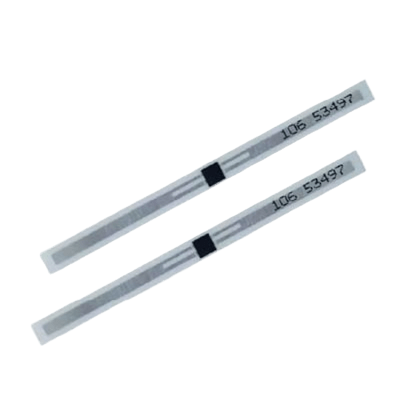

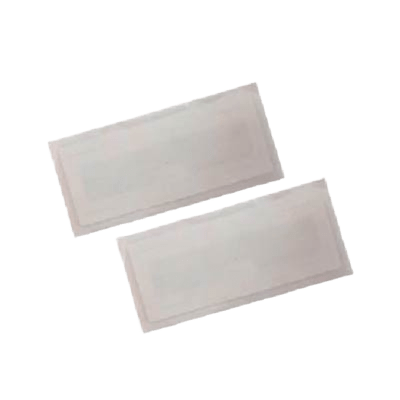

Model No	PG-PROXL-6C-B2	PG-PROXL-UHF-6C-A-B3	PG-PROXC-UHF-B1
Dimension (L x W)mm	105 x 6.5	110 x 45	85 x 54 x 1

Appearance			Anti-metal

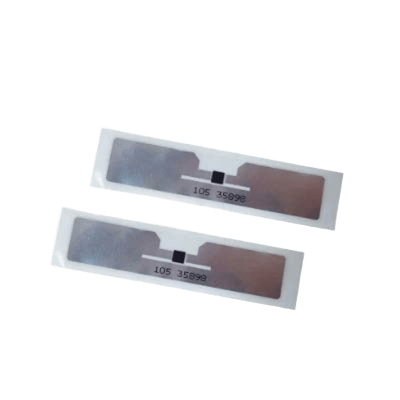

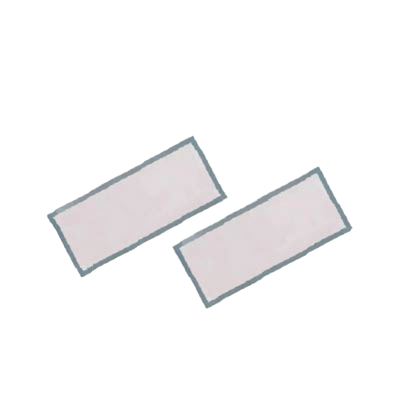

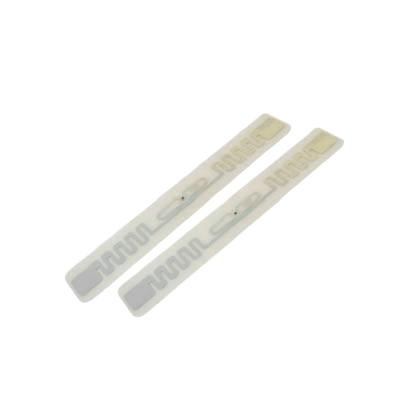

Model No	PG-UHFLW9811-B3	PG-PROXL-6C-2-B1	PG-UHFTM6025-B3
Dimension (L x W)mm	98 x 11	95 x 21	60×25

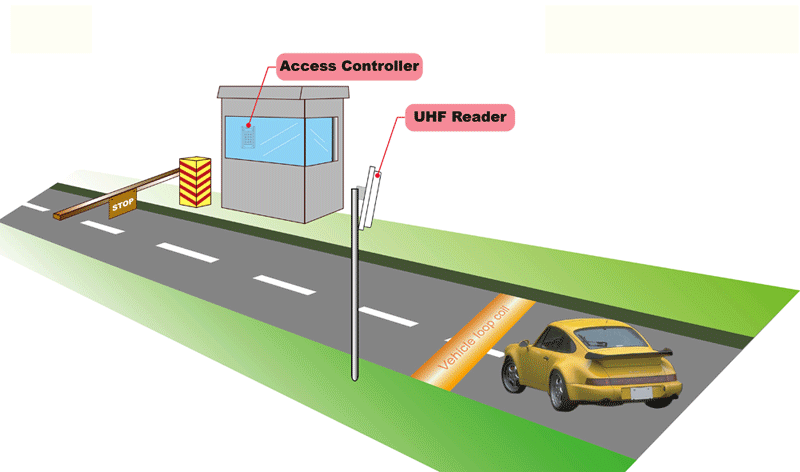

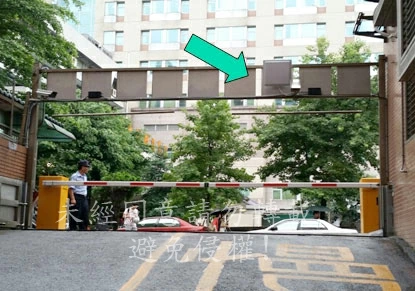

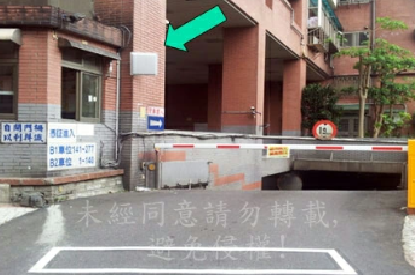

System Configuration

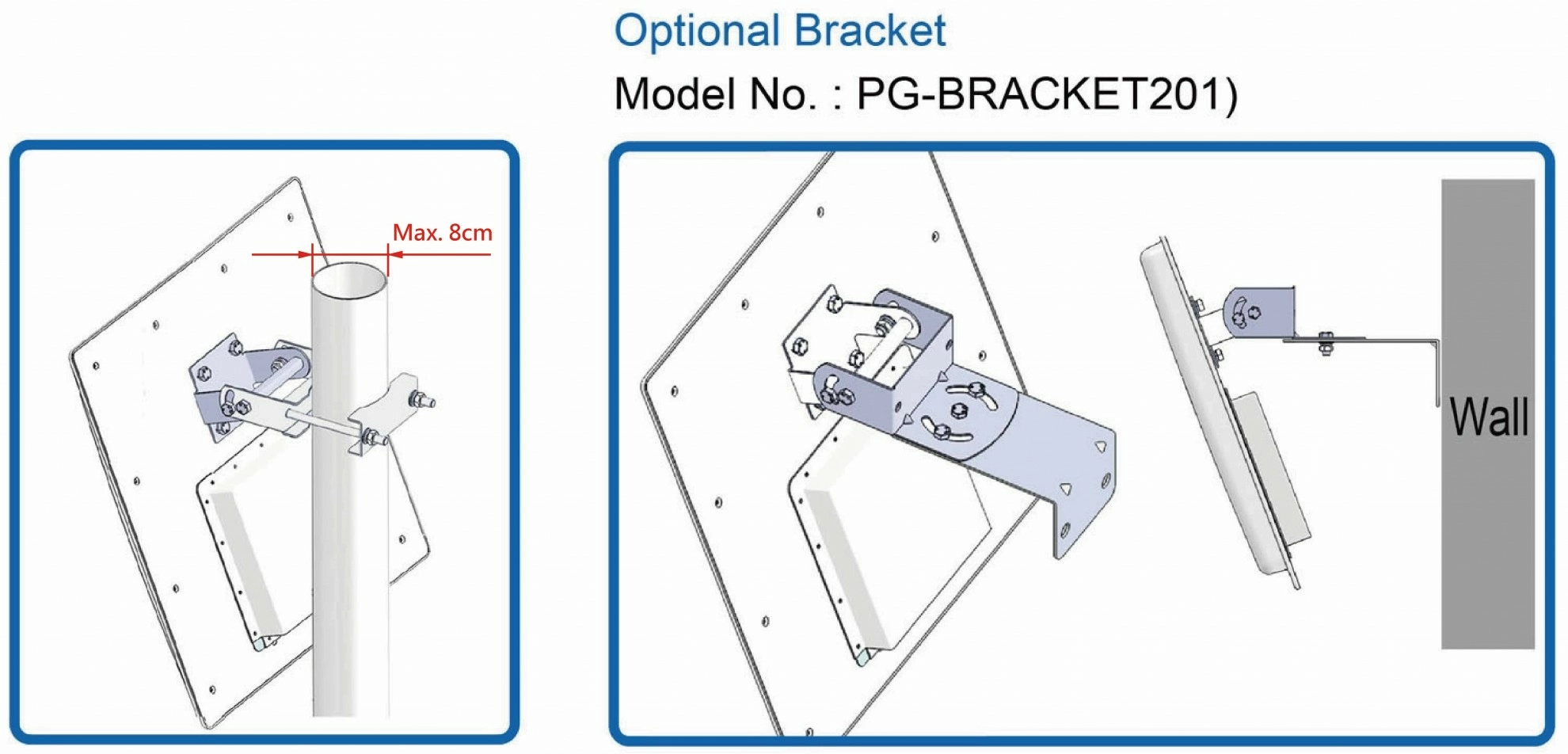

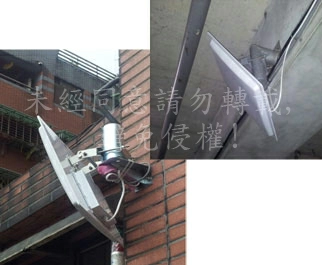

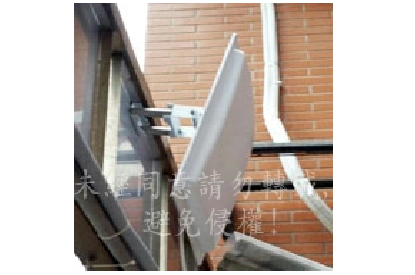

How to assembly

Optional Accessory

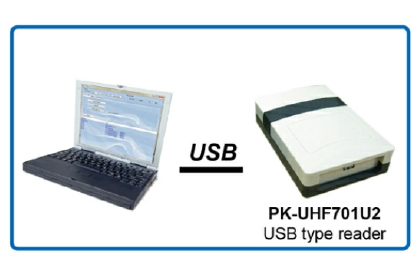

USB type reader support easier ID number collection & registration for access control system.

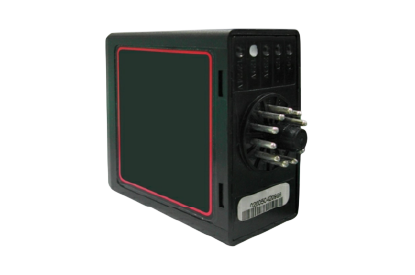

Vehicle loop detector: PK-PD-232

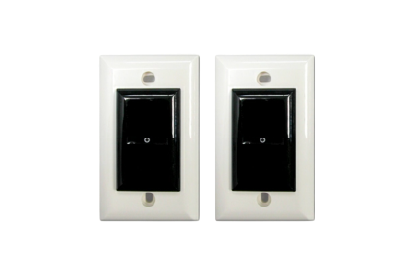

IR sensor: LK-12HD














We reserve the right to change the specification without prior notice or obligation!
