Model：PP-85
Multi-Function Networked controller
Compare
Product
Features
-
Single door (one-way or two-way control)
-
Classic Multi-Function Controller
-
Support 32000 Cards (Standalone/Networked)
-
Built-in LED and Buzzer indicator, door bell
-
Multiple access method: Card only, PIN code only, Card with PIN code
-
IP54 weatherproof for indoor/outdoor use

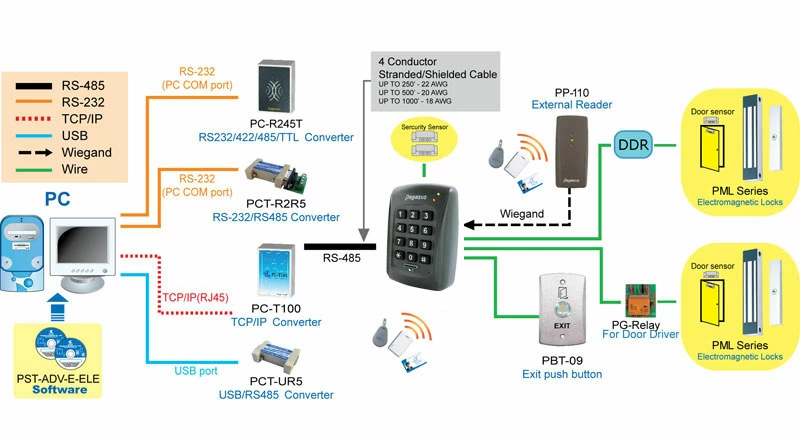

System configuration

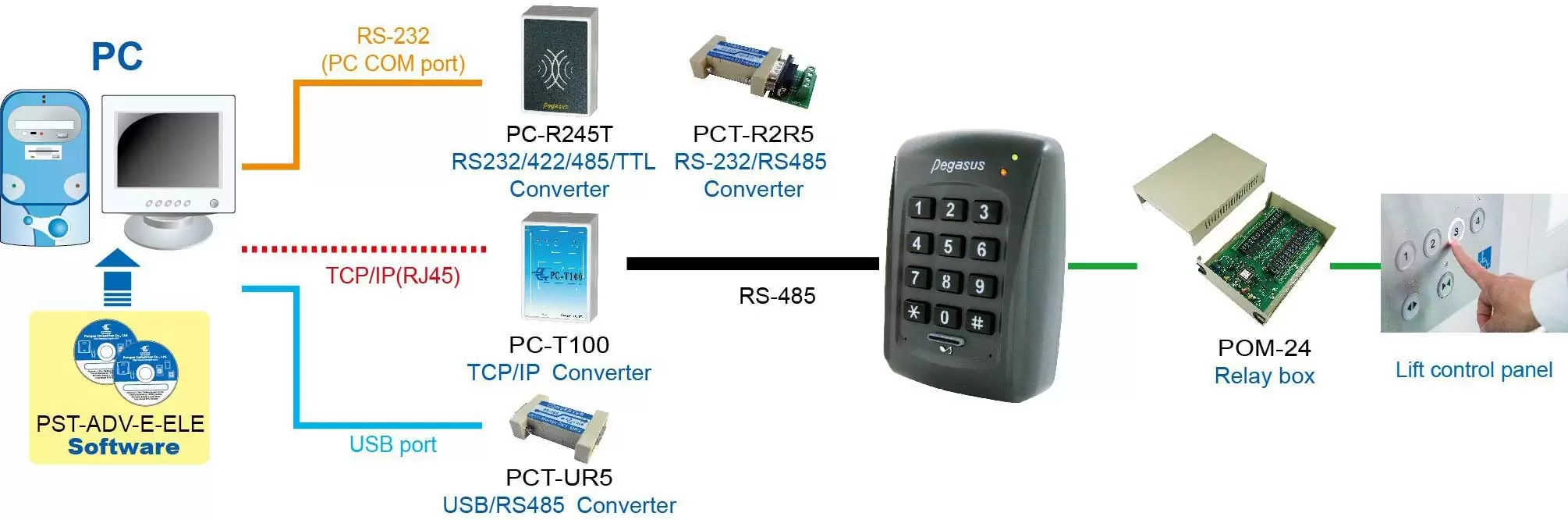

Lift access controller system
Application field

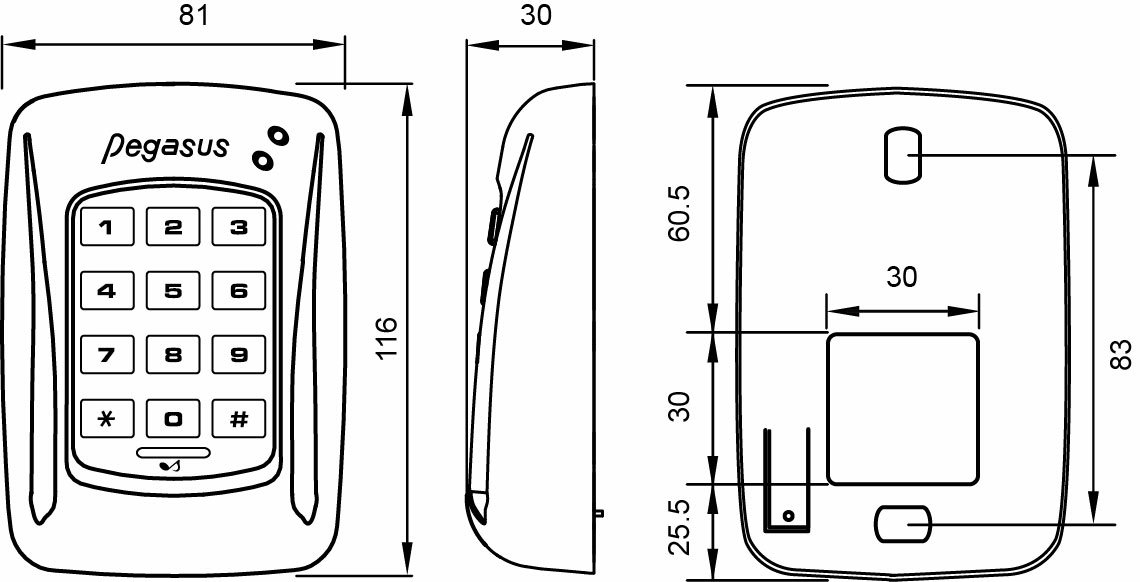

Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Specification
Material
ABS
IP Rating
IP54
Interface
RS-485, RS-232
User Capacity
32,000 card capacity, 32,000 events
Power Voltage
DC 12V
WIEGAND INPUT
Wiegand (26/34 bits)
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Keypad
YES
Dimensions (LxWxH)mm
116x81x30
