Elevator payment system

Introduction

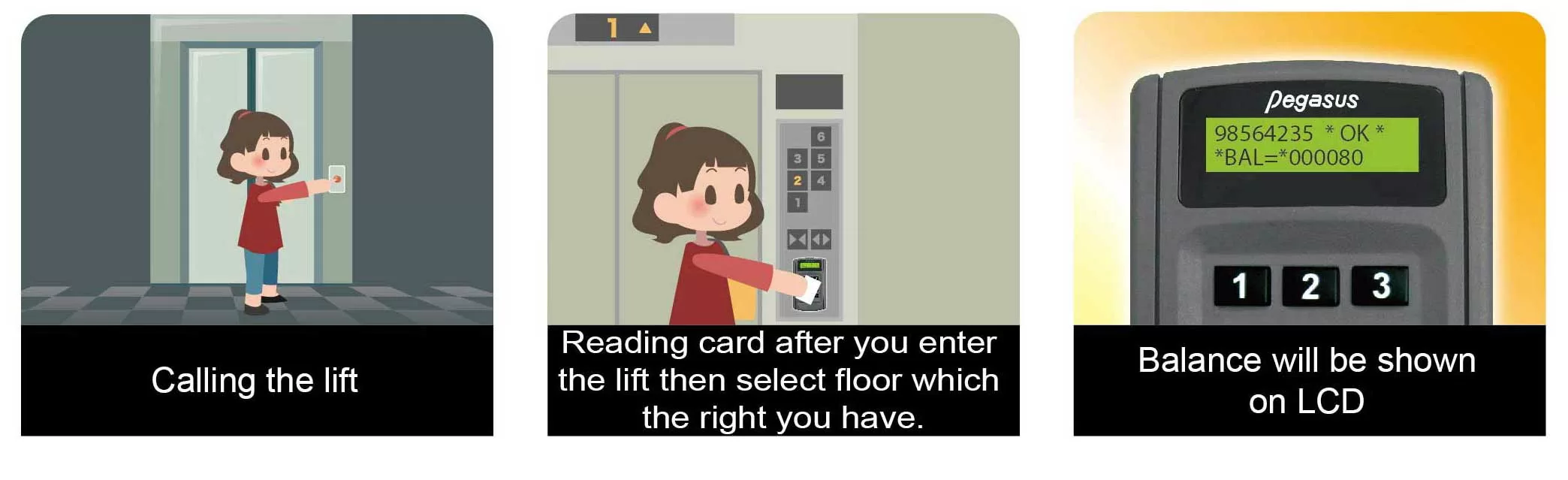

• This system is designed to pay elevator usage fees by contactless prepaid smartcard.
• Supporting on-line or standalone operation.

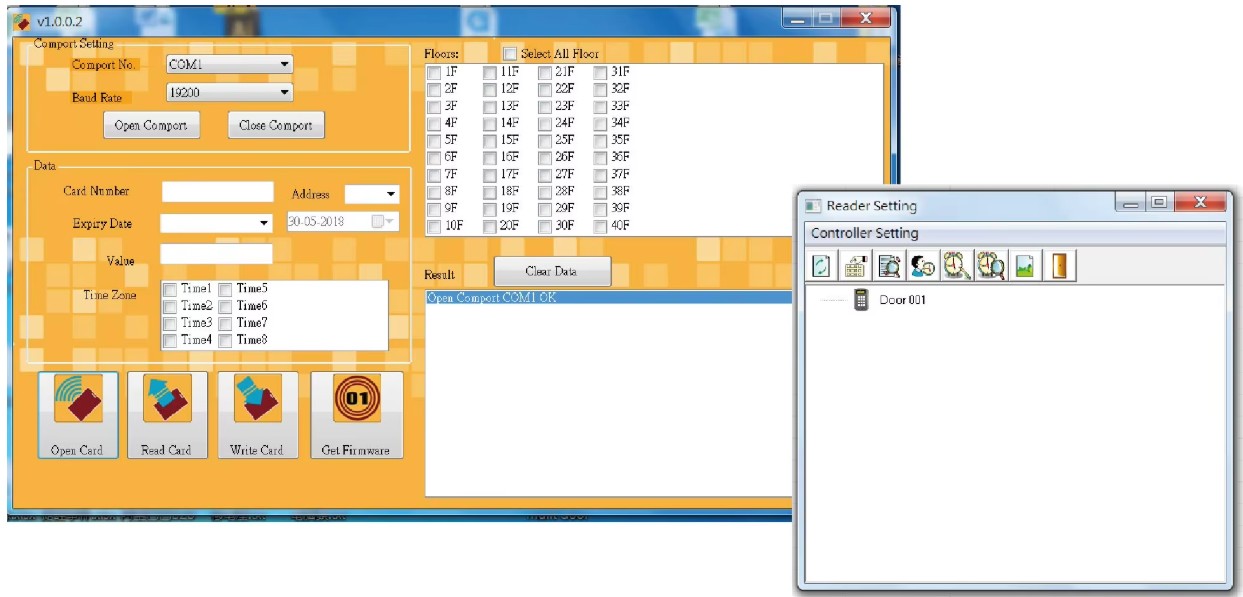

• The card dispensing software defines and stores the ID number, building number,
• expiry date, prepaid amount and accessible floors into the card.
• Supports access control for maximum 40 floors.
• The controller would alarm when the value is less than 15 units by error sound.
• Supports user card enrollment from controller operation or software upload.
• Prepaid card is locked with specific key to increase security of data.
• For easy different project management, the key can be specified according to request.

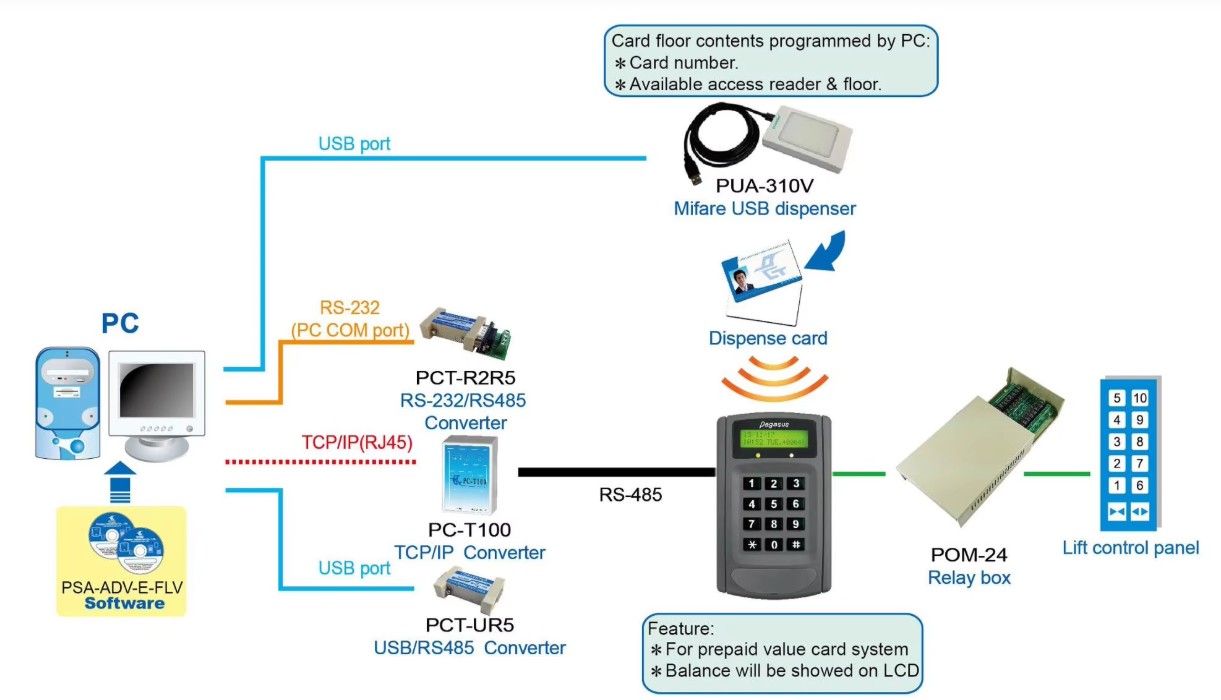

System configuration



Ordering information

We reserve the right to change the specification without prior notice or obligation!
