Model：PP-33XM0B

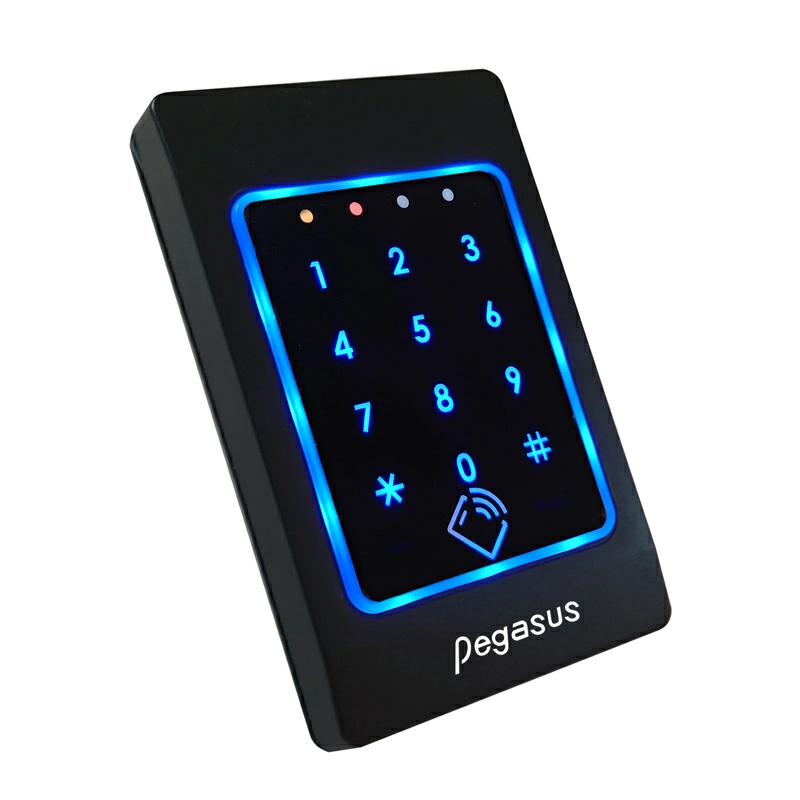

Touch Keypad Networked Controller
Product
Features
- Single door (one-way or two-way control)
- Classic and slim design, suitable for installation in narrow place
- Support 32000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Multiple access method: Card only, PIN code only, Card with PIN code
- IP54 weatherproof for indoor/outdoor use

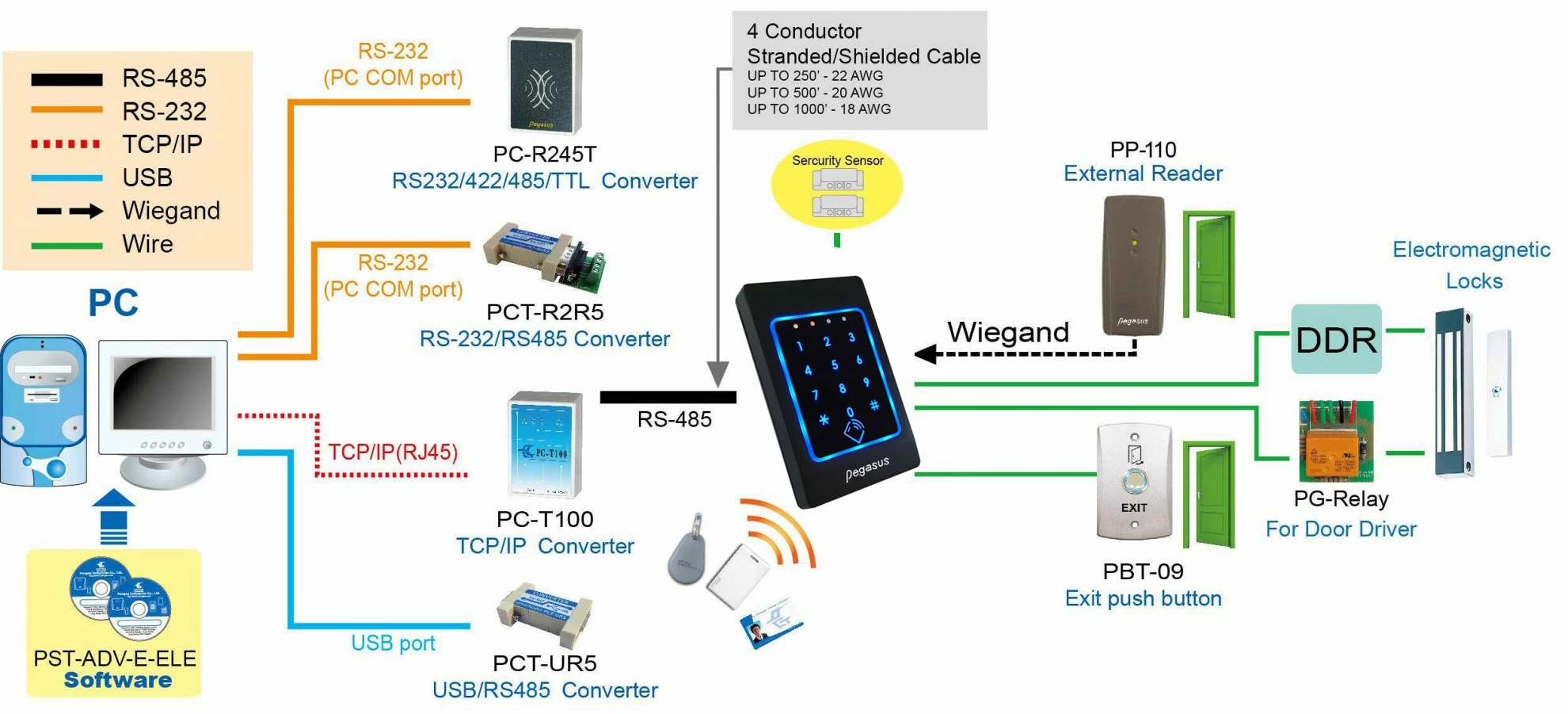

System configuration

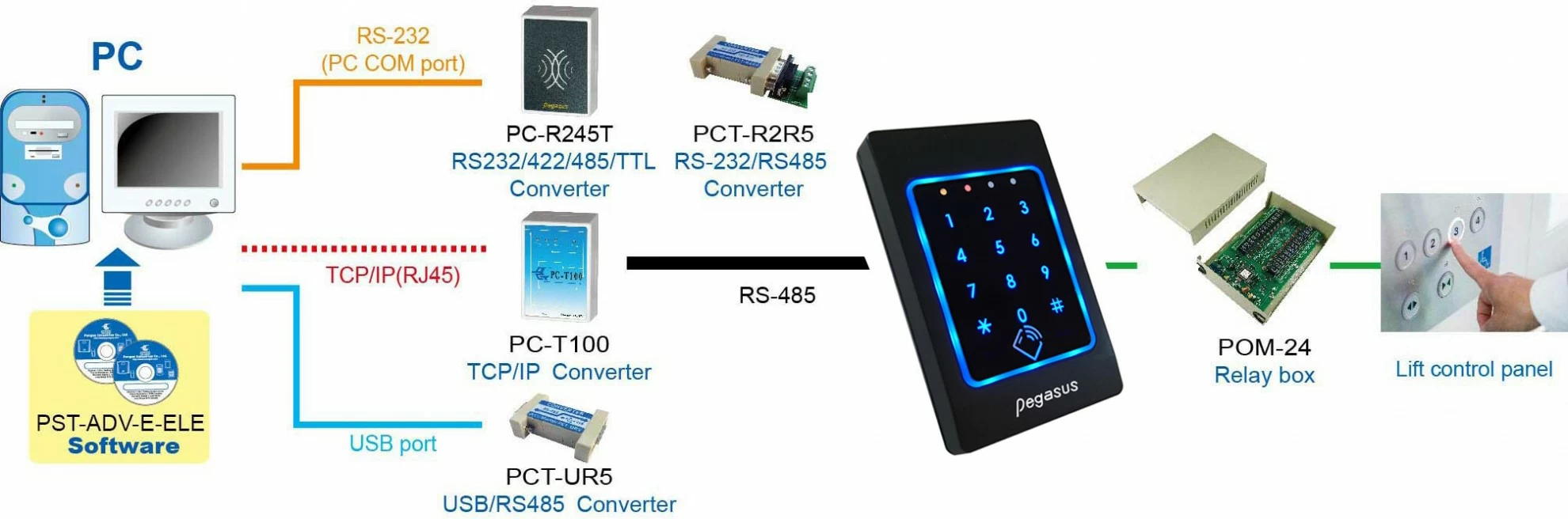

Lift access controller system

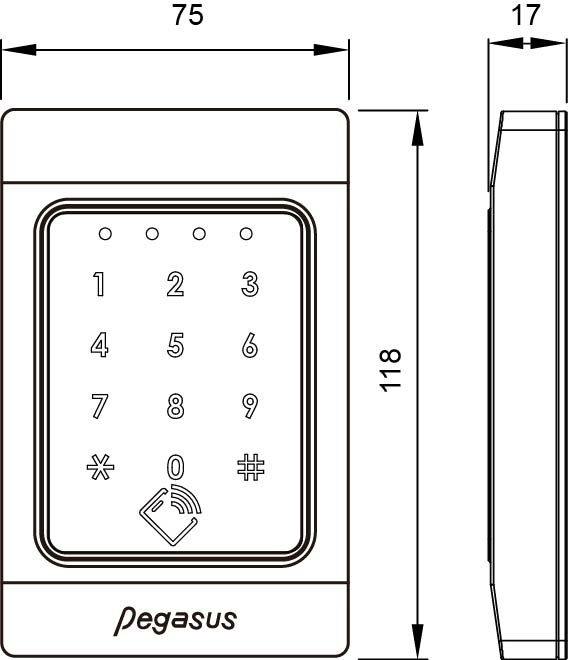

Dimension: mm

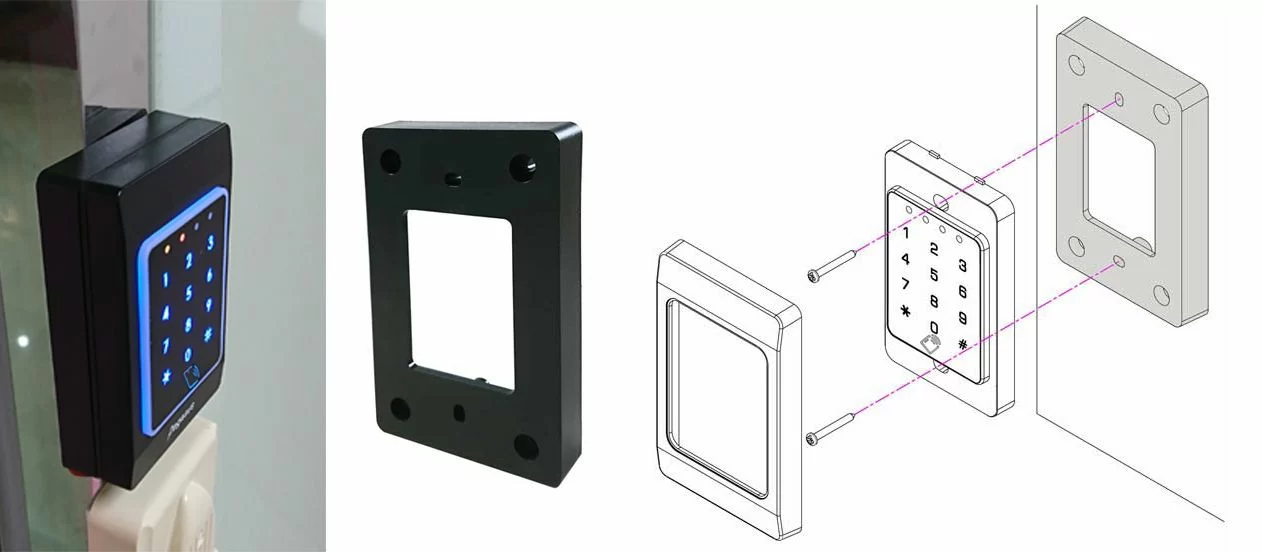

Accessories
| Model No. | R-21-310-3B |
| Feature | Avoid intervention |
| Dimension | 119.6(L) x 76.6(W) x 15(H)mm |
| Material | ABS |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PP-33XM0B
Frequency
13.56MHz
Compatibility
ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional)
User Capacity
32,000 card capacity, 32,000 events
Power Voltage
DC 12V
Interface
RS-485 / RS-232
Wiegand Input
Wiegand (26/34 bits)
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Keypad
Touch Keypad
Material
PC
Dimensions (L x W x D) mm
118 x 75 x 17
IP Rating
IP54
