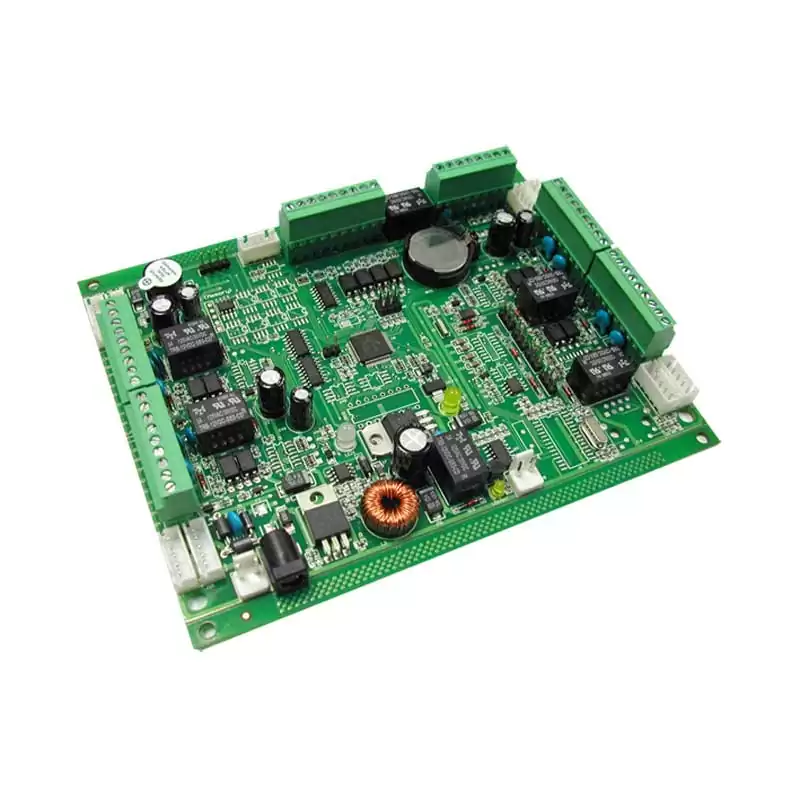

Model:PC-1074B
Four-doors or Eight-doors access controller
Product
Features
- Communications: Built-in RS485, RS-232 ; PC-1074T with TCP/IP
- Support Anti-Passback; be able to assign which door is for entry and which door is for exit.
- Built-in 4 Digital Input and 4 Digital Output.
- Support 8 Wiegand of 26/34 bits or RS485 (polling) reader.
Specification

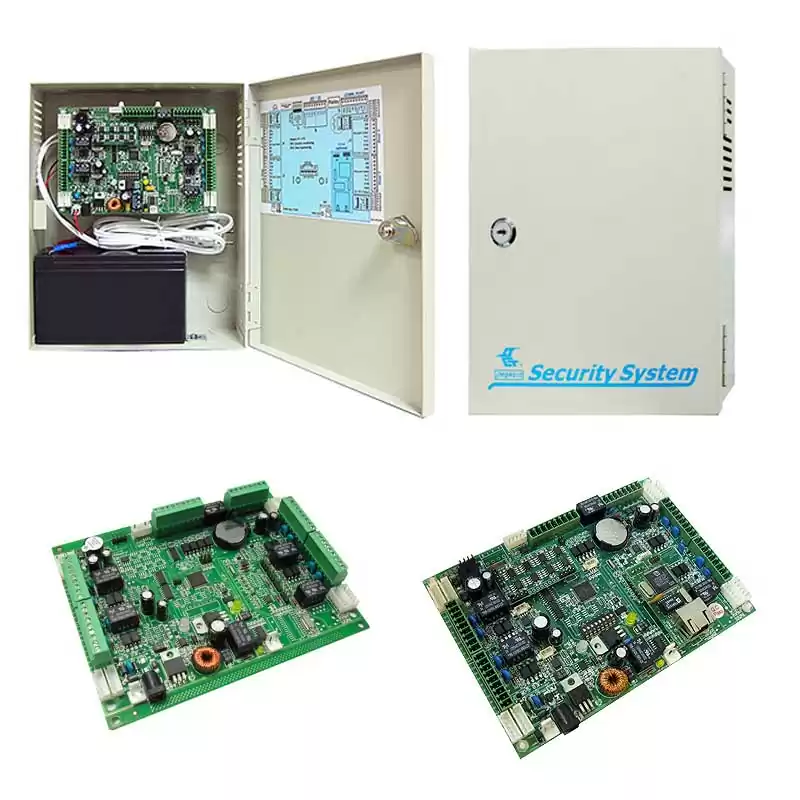

| Appearance | ![]() |
![]() |
![]() |
![]() |
|---|---|---|---|---|

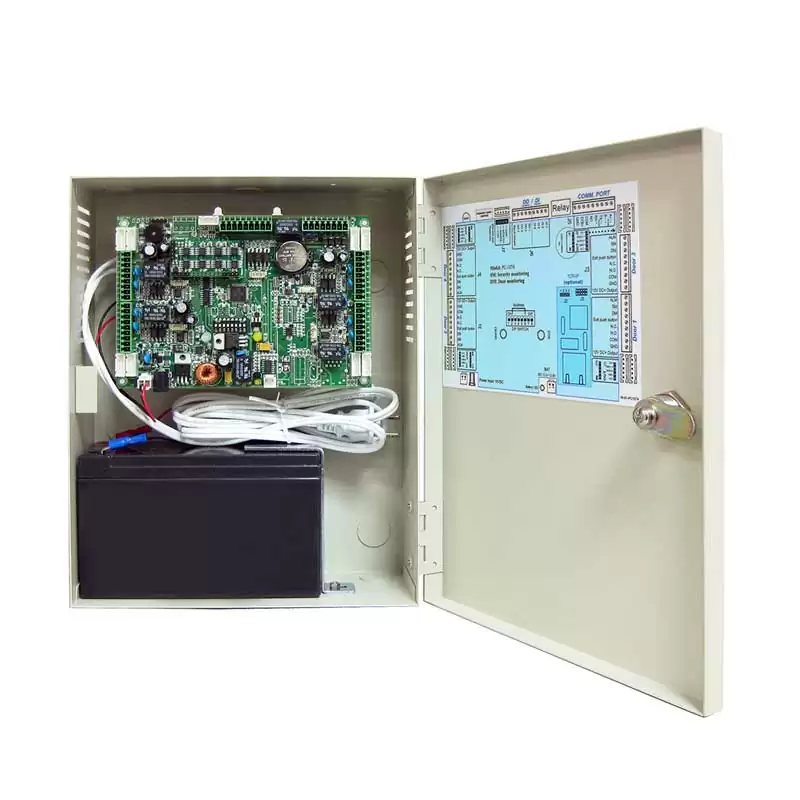

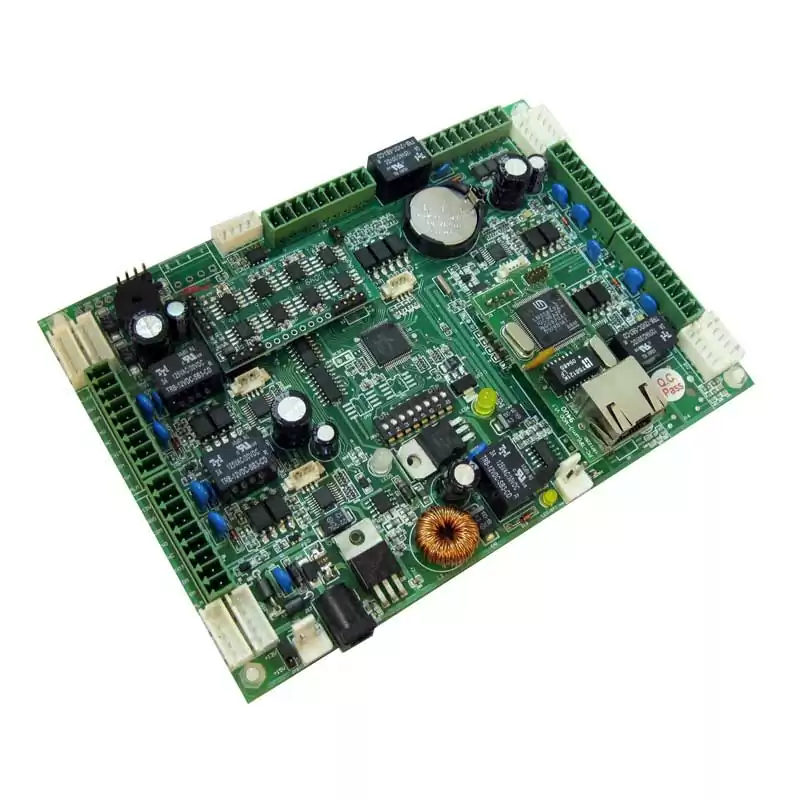

| Model No. | PC-1074 | PC-1074/T | PC-1074B | PC-1074B/T |
| Serial interface | RS-485, RS-232, RS-422(Optional) |
RS-485, RS-232, TCP/IP, RS-422(Optional) |
RS-485, RS-232, RS-422(Optional) |
RS-485, RS-232, TCP/IP, RS-422(Optional) |
| Events | 32,000 (64,000 <optional>) | |||
| Card capacity | 15,000 (64,000 <optional>) | |||
| Digital input(DI) | 4 Pieces | |||
| Digital outputs(DO) | 4 Pieces | |||
| Anti-pass back | YES | |||
| Global anti-pass back | YES | |||
| Printer output | YES | |||
| Door release time | YES | |||
| Door monitor time | YES | |||
| Push button | YES | |||
| Time zone | 8 personal time zones, 8 time zones for auto operation mode | |||
| Transmission rate | 9,600 bps, N,8,1 | 9,600 bps, N,8,1 TCP/IP: 10/100M |
9,600 bps, N,8,1 | 9,600 bps, N,8,1 TCP/IP: 10/100M |
| UPS | 7.2A/H | --- | ||
| Power supply/ Consumption current |
DC 15V / 0.05A | DC 12V / 0.05A | ||
| External reader | Wiegand 26/34 bits, RS-485(Polliing) | |||
| Material | Metal case | PCB Only | ||
| Dimensions (L×W×H)MM |
273x218x80 | 160x115x24.5 | ||

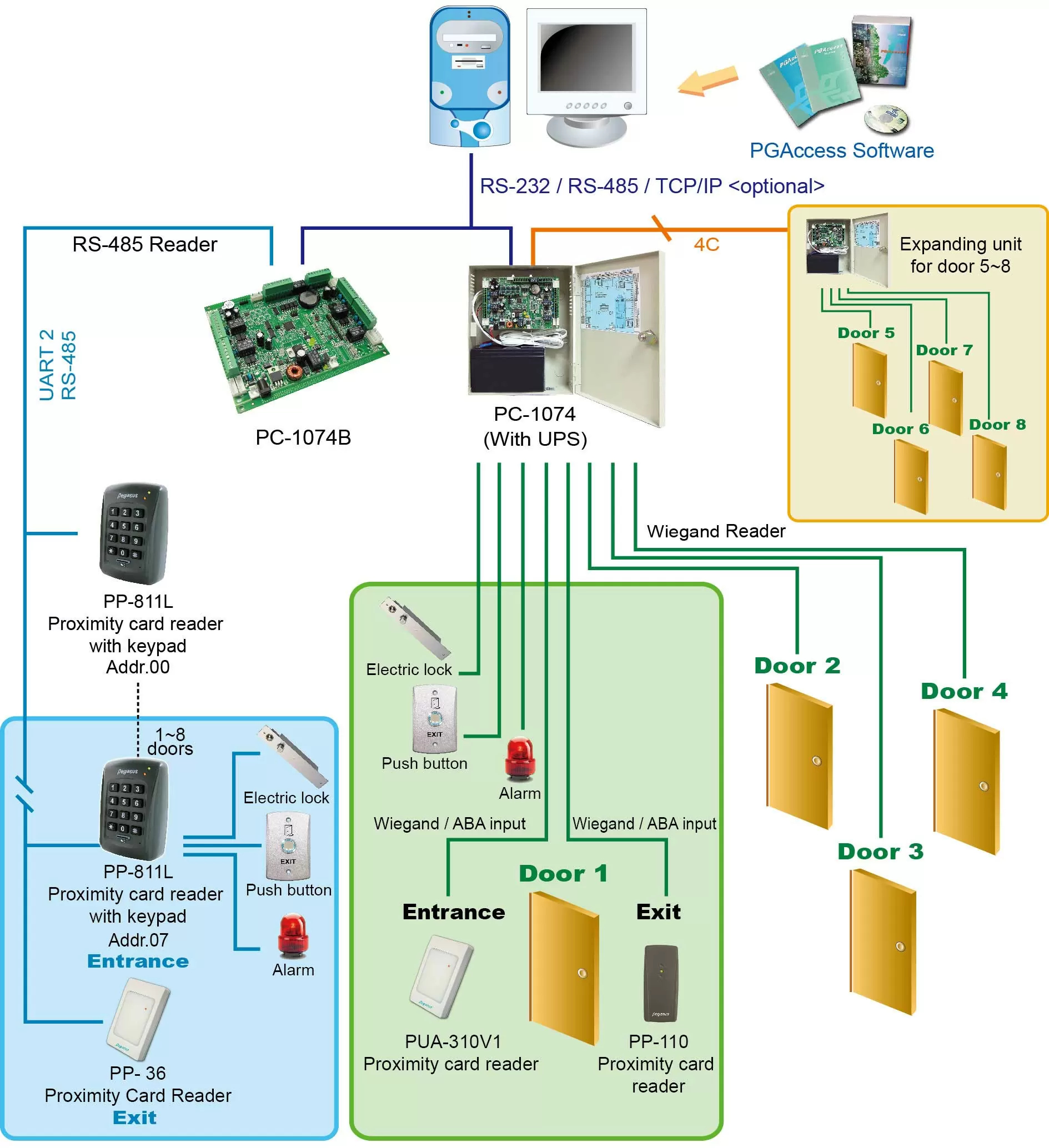

System configuration
We reserve the right to change the specification without prior notice or obligation!
Specification
Events
32,000 (64,000 )
Card capacity
15,000 (64,000 )
Digital input(DI)
4 Pieces
Digital outputs(DO)
4 Pieces
Anti-pass back
YES
Global anti-pass back
YES
Printer output
YES
Door release time
YES
Door monitor time
YES
Push button
YES
Time zone
8 personal time zones, 8 time zones for auto operation mode
External reader
Wiegand 26/34 bits, RS-485(Polliing)
