Model：PC-6750VXC2
Two-doors access controller
Compare
Product
Features
- Communications: Built-in RS485, RS-232 ; PC-3702/TC2 with TCP/IP
- Support Anti-Passback; be able to assign which door is for entry and which door is for exit.
- Support 2 Wiegand readers.
Specification
| Appearance |  |
 |
 |
|---|---|---|---|

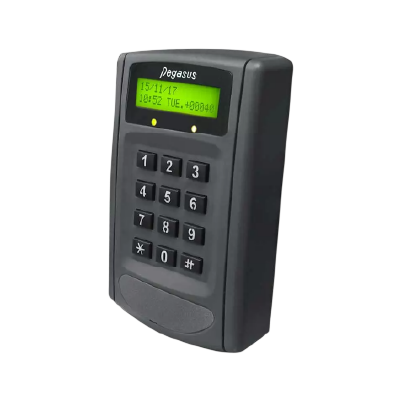

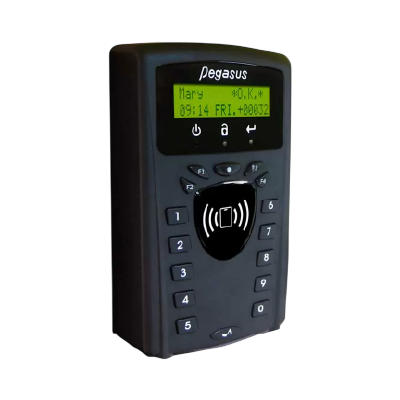

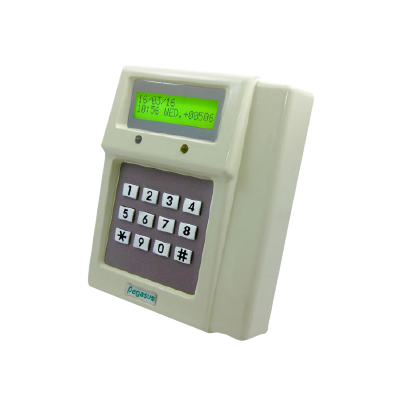

| Model No. | PC-6750VX/C2 | PC-2750VX/C2 | PC-3702T/C2 |
| Serial interface | RS-485, RS-232(Optional) |
RS-485, RS-232(Optional) |
RS-485, TCP/IP |
| Events | 32,000 | ||
| Card capacity | 32,000 | ||
| Anti-pass back | YES | ||
| Power supply/ Consumption current |
DC 12V / 0.07A | ||
| External reader | Wiegand 26/34 bits | ||
| Material | ABS | Zinc alloy | ABS |
| Dimensions (L×W×H)mm |
138x85x29 | 157x124x42 | 174x100x45 |
System configuration
We reserve the right to change the specification without prior notice or obligation!
Specification
Events
32,000
Card capacity
32,000
Anti-pass back
YES
External reader
Wiegand 26/34 bits
