Model：PC-30

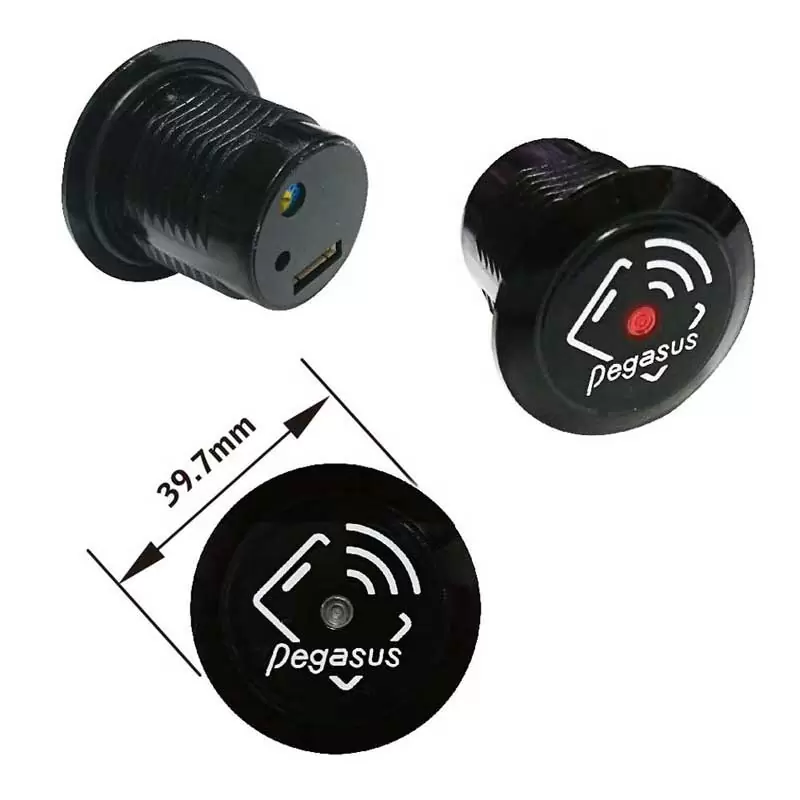

Mini Standalone controller, Installation diameter 31mm
Product
Features
Specification
- Flush-Mount mini controller, Compact size, Easy to install
- Support 1000 Cards (Standalone)
- Built-in LED and Buzzer indicator
- Built-in Form A Relay and Adjustable output time 0.5~106 sec.
- Front panel IP54 weatherproof for outdoor use
- Support 125KHz(EM / H.I.D.) & 13.56MHz(Mifare / DESFire / FeliCa / NFC (card simulation))
Specification
| Model No. | PC-30N | PC-30H | PC-30M0 | PC-30F |
|---|---|---|---|---|
| Frequency | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 |
H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC Ntag213/215/216 |
ISO 14443 A MIFARE® Classic, Plus, Ultralight, ISO 18092 FeliCa, NFC Ntag213/215/216 |
| User Capacity | 1,000 Users | |||
| Power Input | DC 12V | |||
| Relay | One ( N.O. / N.C. / COM. ) | |||
| Housing Material | PC (Polycarbonate) | |||
| Dimensions (Dia.) | Ø 39.7 mm | |||
| IP Rating | IP54 | |||

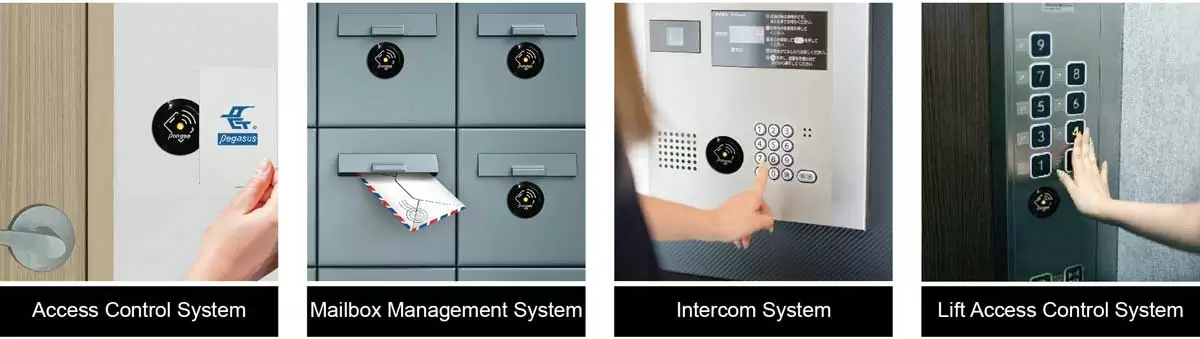

Application field
- Low cost and simple access controller for door, lift, cabinets, drawers, coffer, handle locks, intercom.
- For small area installation.
- Any access control application by RFID cards.

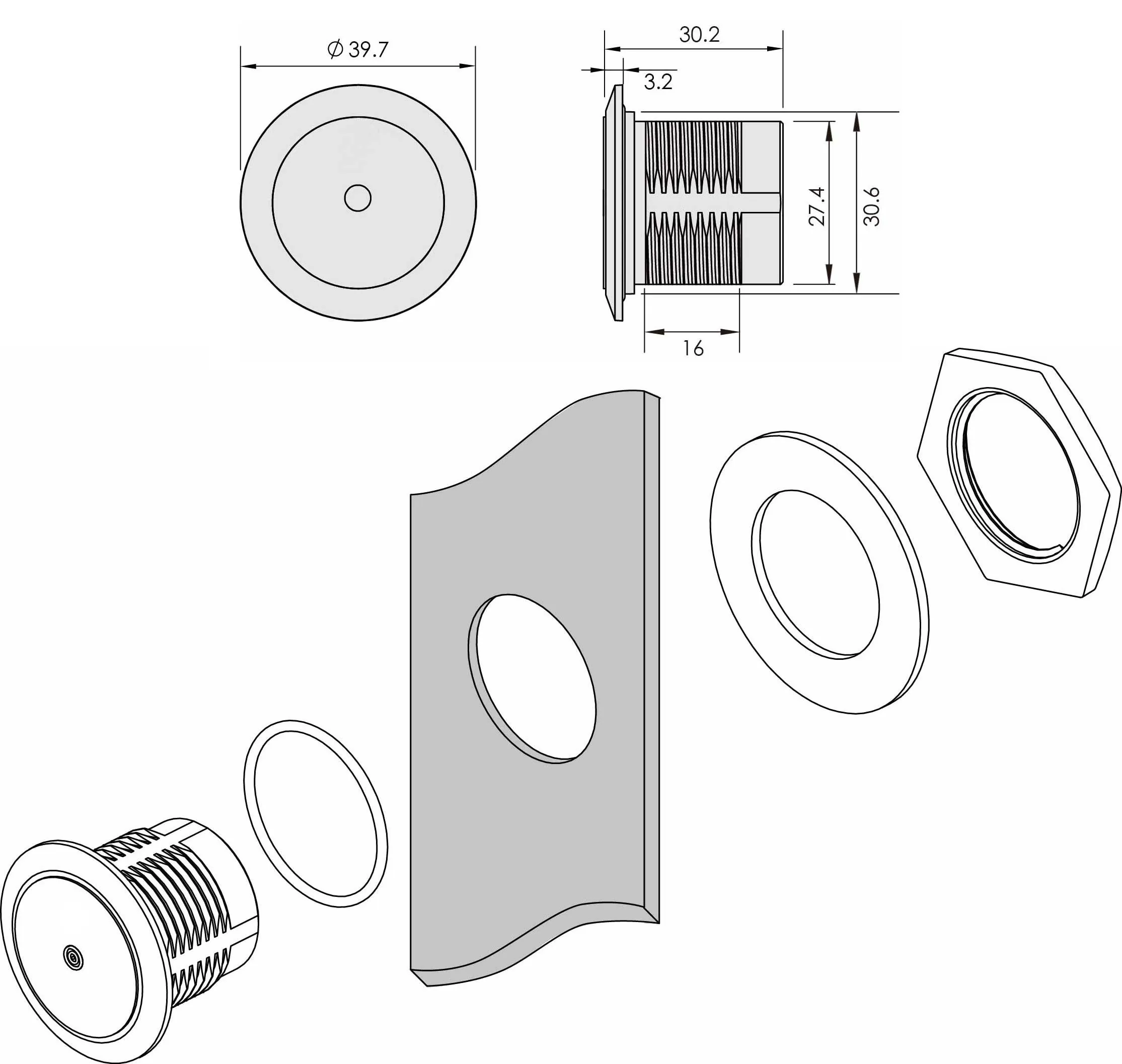

Dimension: mm
Ordering information
| PC-30N | 125KHz ASK EM standalone access controller |
|---|---|
| PC-30H | 125KHz FSK H.I.D. standalone access controller |
| PC-30NH | 125KHz ASK EM & FSK H.I.D. standalone access controller |
| PC-30F | 13.56MHz Multi Mifare & Felica, NFC standalone access controller |
| PC-30M0 | 13.56MHz Multi Mifare, NFC standalone access controller |
* Other customer request specifications are welcomed.
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specification
Model No
PC-30N ; PC-30H ; PC-30M0 ; PC-30F
Frequency
125KHz ASK ; 125KHz FSK ; 13.56MHz ; 13.56MHz
Compatibility
ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 ; H.I.D. ; ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation) ; ISO 14443 A MIFARE® Classic, Plus, Ultralight, ISO 18092 FeliCa and NFC (card simulation)
User Capacity
1000
Power Voltage
DC 12V
Relay
One (N.O./N.C./COM.)
Material
PC
Dimensions (LxWxH)mm
Φ 39.7
IP Rating
IP54
