Product
Features
- Classic and popular multi-functional Standalone controller
- Support 9999 Cards (Standalone)
- Built-in LED and Buzzer indicator
- Built-in Form A Relay
Specification
| Model No. | PP-5878G/P | PP-5878G/N | PP-5878G/M0 |
| Frequency | 125 KHz ASK | 125 KHz ASK | 13.56 MHz |
| Compatibility | ISO18000-2 EM4001, 4100, 4102 Pegasus Format | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation) |
| User Capacity | 9,999 | ||
| Power Voltage | DC 12V | ||
| Input | Exit push button / Door monitor / Security sensor | ||
| Output | Alarm output / Tamper switch output / Electric lock output | ||
| Material | ABS | ||

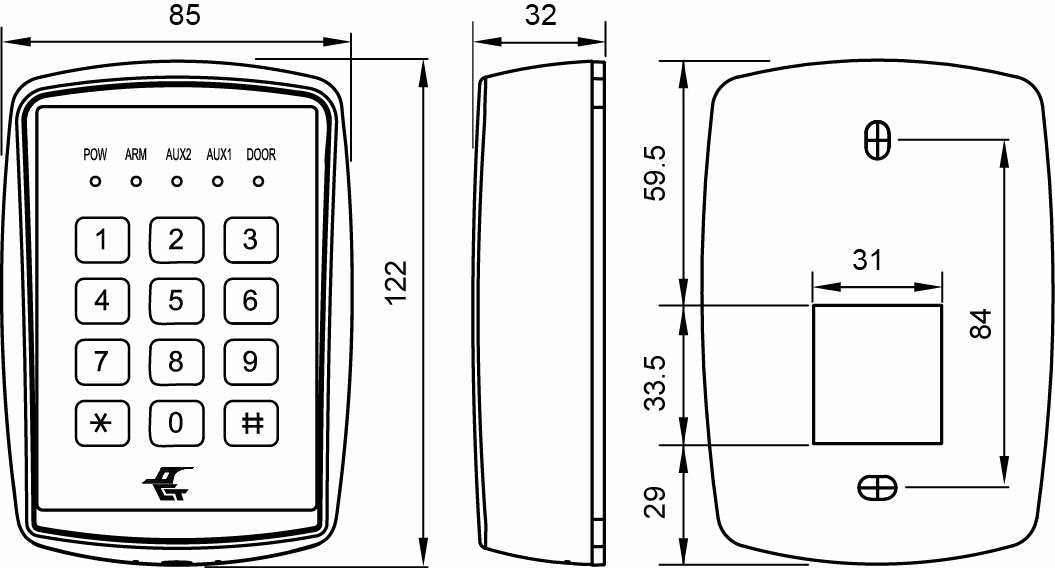

| Dimensions (L x W x H) | 122 x 85 x 32 mm | ||
| IP Rating | IP54 | ||
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
