Model：PG-105K
Digital Access Control Keypad
Compare
Product
Features
- ABS case with plastic keypad, compact and low profile.
- With tamper switch and one loop sensor input to trigger alarm when case is tampered or loop is intruded.
- Non-volatile memory for 10-100 years data retention without any battery backup.
- DC 12V operated therefore battery operation is possible when AC power is interrupted.
- Intelligent programmable functions through keypad by LED's and audible beep's indication.
- 7 (optional 99 groups) independent codes from 4 to 8 digits, up to 99,999,999 combinations.
- 150 door codes(PG-105KC) / 150 door codes for two doors access control(PG-105KD) / 1000 door codes(PG-105KE)
- Programmable door release time, alarm time from 1 to 99 period through keypad.
Specification
Ordering information

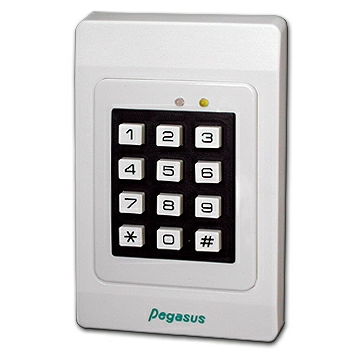

| PG-105K | Digital Access Control Keypad, 7 door codes, white case |
|---|---|

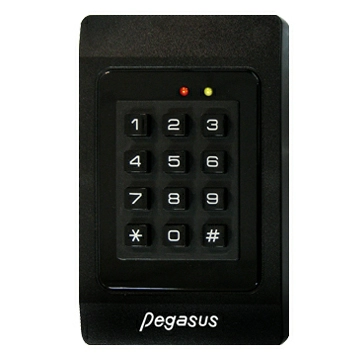

| PG-105KB | Digital Access Control Keypad, 7 door codes, black case |
We reserve the right to change the specification without prior notice or obligation!
Specification
Dimensions
118(L) x 75(W) x 16(H)mm
Weight
250g ± 5%
Humidity
20%~90% RH, Non condensation
Operation temperature
0°C ~ 50°C
Power supply
DC 12V, 18.2~20.2mA standby / 49.7~54.9mA on relay operation
Monitor inputs
Door contact, Exit push button, Case tamper
Passcode
Programmable from 4 to 8 digits
