DA-62B Electric Deadbolt Lock (Drop to hold position by board)

Model number: DA-62B

Inquiry
Quantity

Product Description

  • Door position status monitor output contact
  • Adjustable door lock delay timer
  • For emergency door, glass door and frameless glass door. Wooden door

Specifications

Model No.DA-62B
TypeFail safe
Voltage / CurrentDC12V(Standby:310mA , Working:1040mA)
Time Delay10 Sec. / 6 Sec. / 3 Sec.
LED indicator---
Door position sensorYES
Dimensions(LxWxD)mmFaceplate222x33x3
Lock189x32x40
Net Weight (g)1000g±1%
BracketSurface Mount Bracket: PG-STC

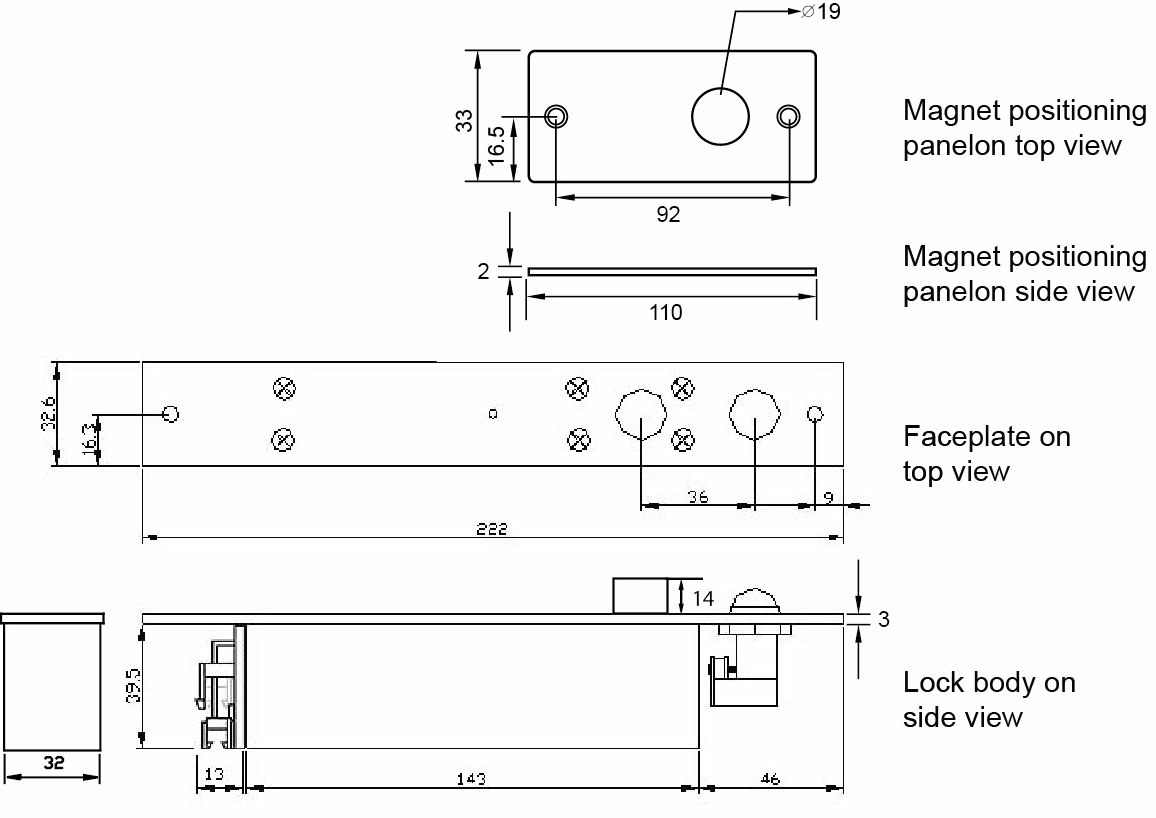

Dimension: Unit(mm)

Electric Bolt Lock – Fail Safe

We reserve the right to change the specification without prior notice or obligation!
