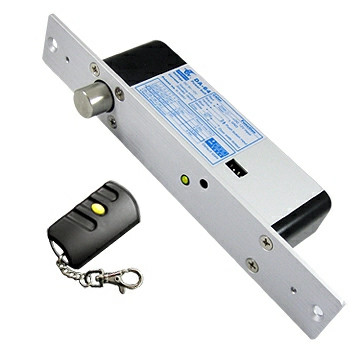

Model：DA-64RAD
Wireless Electric Dropbolt– Fail Safe
Product
Features
- Door position status monitor output contact
- Adjustable door lock delay timer

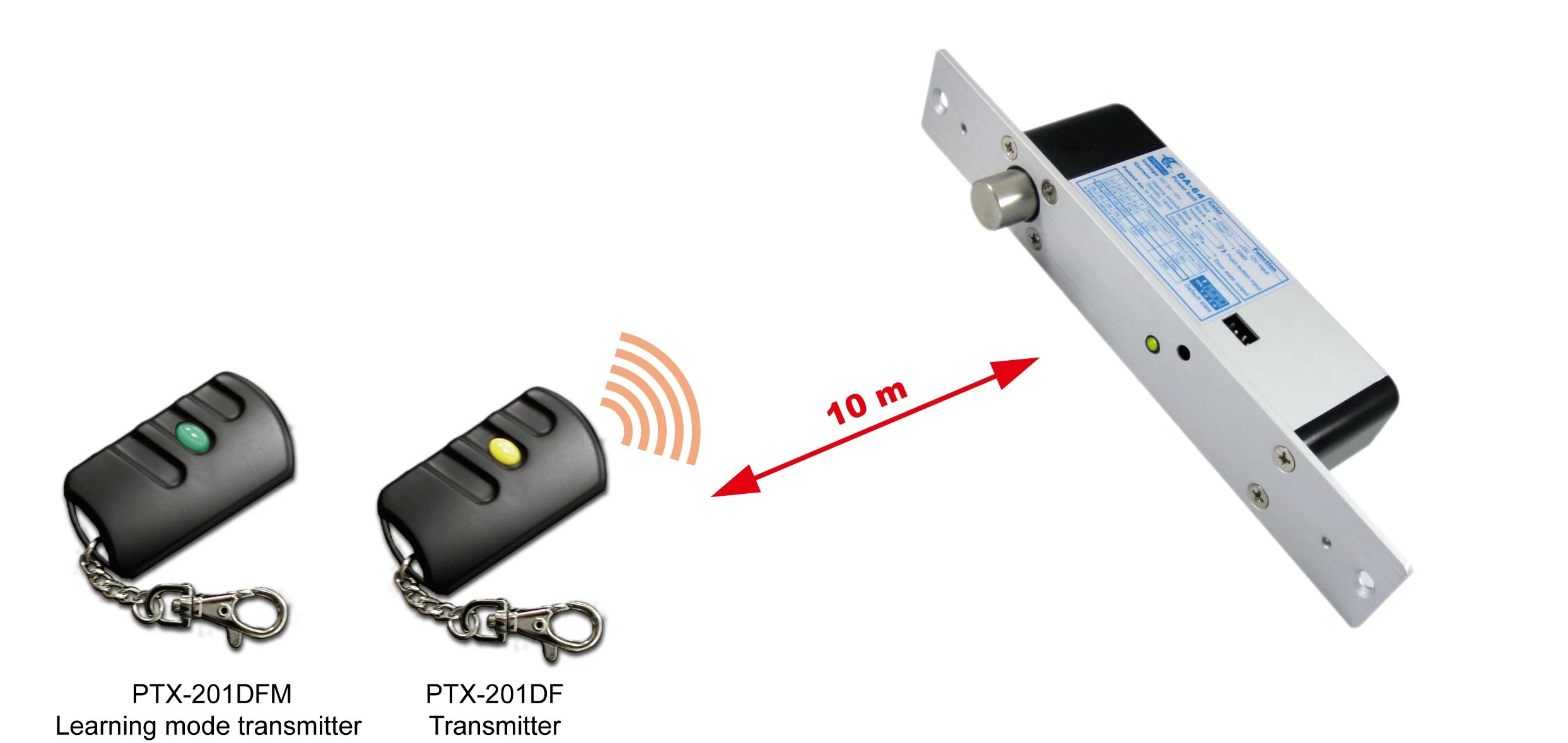

- Remote control ranges up to 10m
- Transmitter ID's up to 40 pieces(PTX-201DF)
DA-64RA/D by DIP Switch for learning mode
DA-64RDA/D by Master Transmitter (PTX-201DFM) for learning mode - For emergency door, glass door and frameless glass door. Wooden door
Specification
| MODEL NO. | DA-64RA/D | DA-64RDA/D | |
| TYPE | Fail safe | ||
| VOLTAGE / CURRENT | DC11~16V(Standby:100mA, Working:850mA) | ||
| TIME DELAY | 10 Sec. / 6 Sec. / 3 Sec. | ||
| LED INDICATOR | YES | ||
| DOOR POSITION SENSOR | YES | ||
| DIMENSION (LXWXD)MM | FACEPLATE | 204x33x3 | |
| LOCK | 132x30x42 | ||
| NET WEIGHT (G) | 687g±1% | ||
| BRACKET | Surface Mount Bracket: PG-B64 Glass Door U-Bracket: PG-DASTC-2 |
||
Accessories

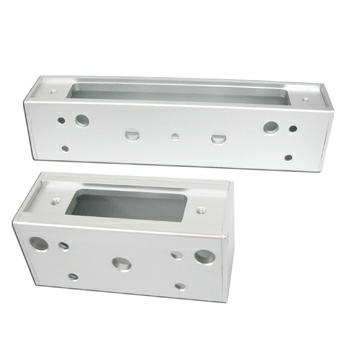

External hanging bracket - PG-B64
For glass door without frame
External hanging bracket - PG-B64 + Glass jig - PG-DASTC-2
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
DA-64RA/D ; DA-64RDA/D
Type
Fail safe
Voltage / Current
DC11~16V (Standby:100mA, Working:850mA)
Time Delay
10 Sec. / 6 Sec. / 3 Sec.
LED indicator
YES
Door position sensor
YES
Dimensions (L x W x D) mm
Faceplate：204x33x3 / Lock：132x30x42
Net Weight (g)
687g±1%
Bracket
Surface Mount Bracket: PG-B64 / Glass Door U-Bracket: PG-DASTC-2
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
