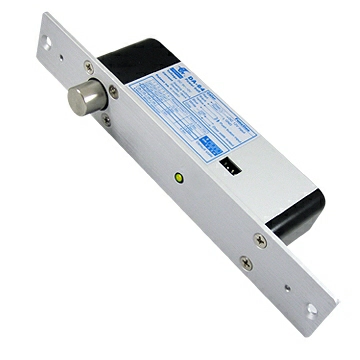

Model：DA-64AD
Electric Dropbolt – Fail Safe
Product
Features
- Door position status monitor output contact
- Adjustable door lock delay timer
- For emergency door, glass door and frameless glass door. Wooden door
Specification
| Type | Fail-Safe | |
| Voltage / Current | DC 11 ~ 16V (Standby: 110 ~ 90 mA / Working: 1,000 ~ 900 mA) | |
| Time Delay | 3 / 7 / 8 sec. | |
| LED Indicator | YES | |
| Door Position Sensor | YES | |
| Dimensions (L x W x D) | Faceplate | 204 x 33 x 3 mm |
| Lock Body | 132 x 30 x 42 mm | |
| Net Weight | 687 g ± 1% | |

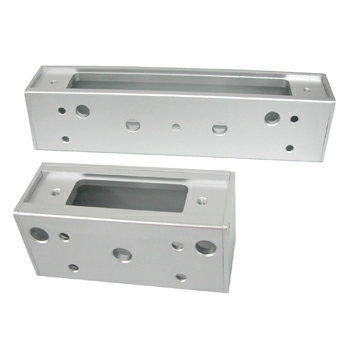

| Bracket | • Surface Mount Bracket: PG-B64 • Glass Door U-Bracket: PG-DASTC-2 |
|

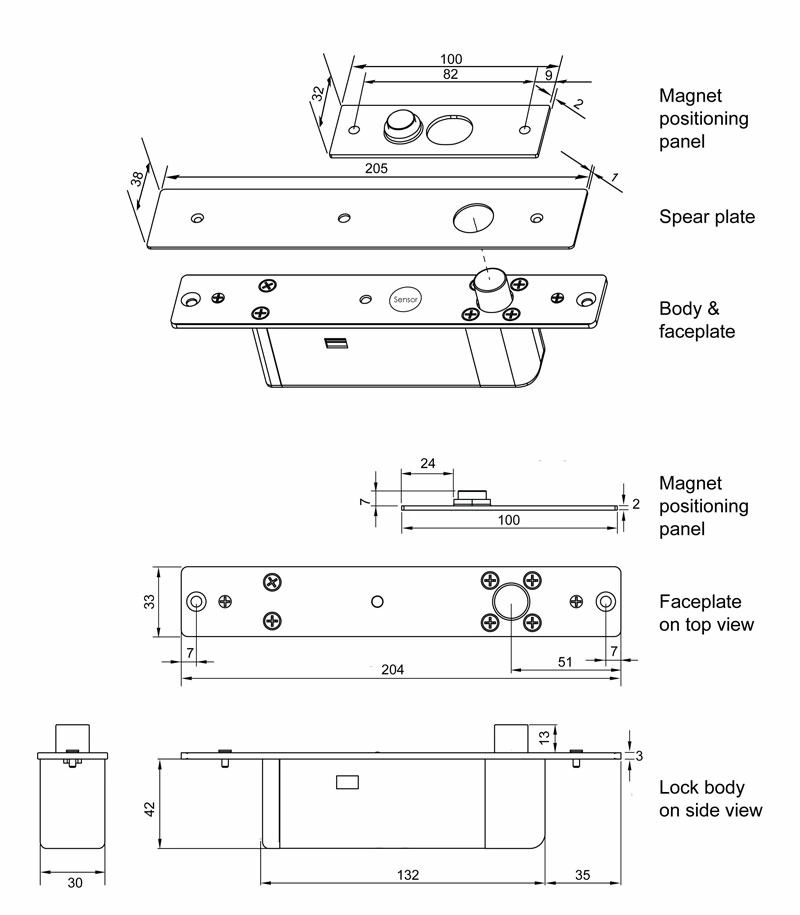

Dimension: Unit(mm)
Accessories

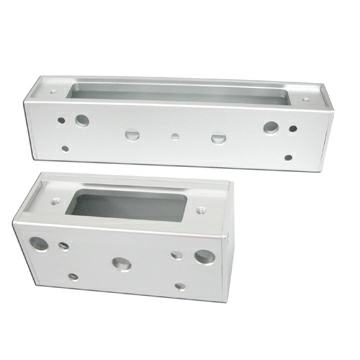

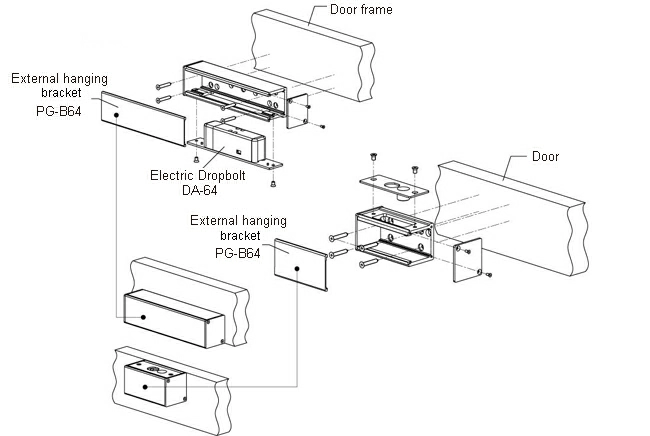

External hanging bracket - PG-B64

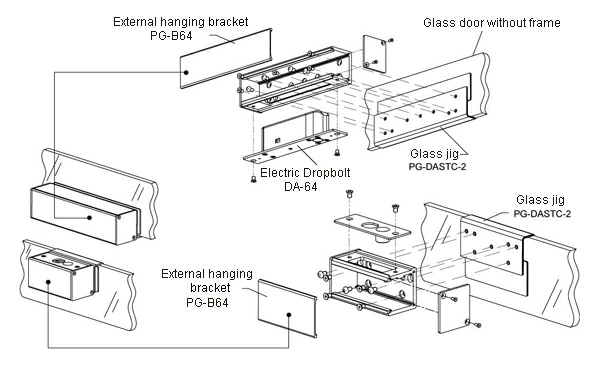

For glass door without frame
External hanging bracket - PG-B64 + Glass jig - PG-DASTC-2
Ordering information
| DA-64A/D | Fail safe type electric deadbolt, DC11V~16V |
|---|---|
| DA-64AD2 | Fail safe type electric deadbolt, DC11V~16V, with COM. & N.O. & N.C. & Door monitor |
We reserve the right to change the specification without prior notice or obligation!
Specification
Type
Fail safe
Voltage / Current
DC11~16V(Standby:110~90mA , Working:1000~900mA)
Time Delay
8 Sec. / 7 Sec. / 3 Sec.
LED indicator
YES
Door position sensor
YES
Dimensions (L x W x D) mm
Faceplate：204x33x3 / Lock：132x30x42
Net Weight (g)
687g±1%
Bracket
Surface Mount Bracket: PG-B64 / Glass Door U-Bracket: PG-DASTC-2
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
