Model：DA-15

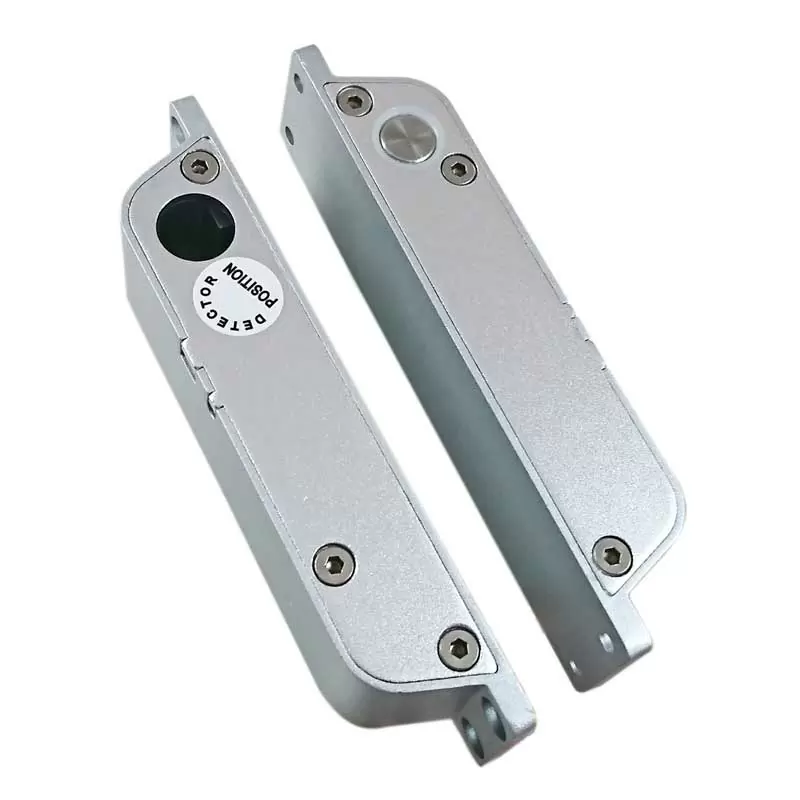

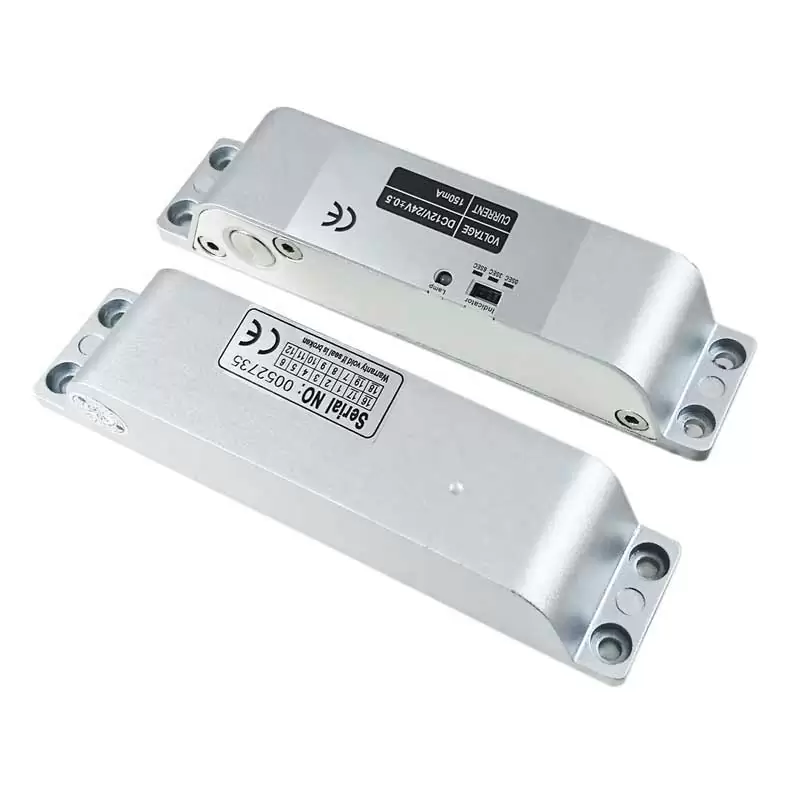

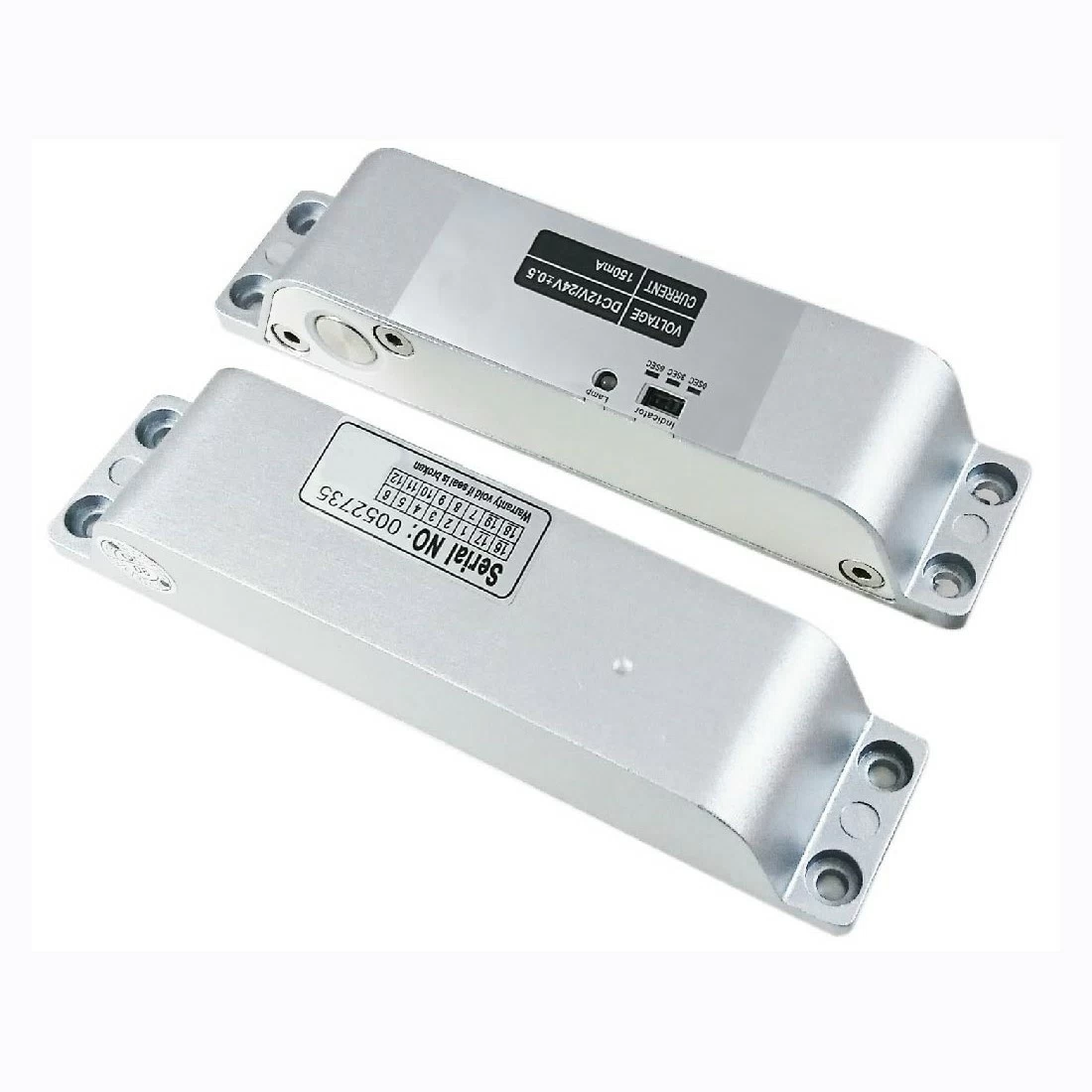

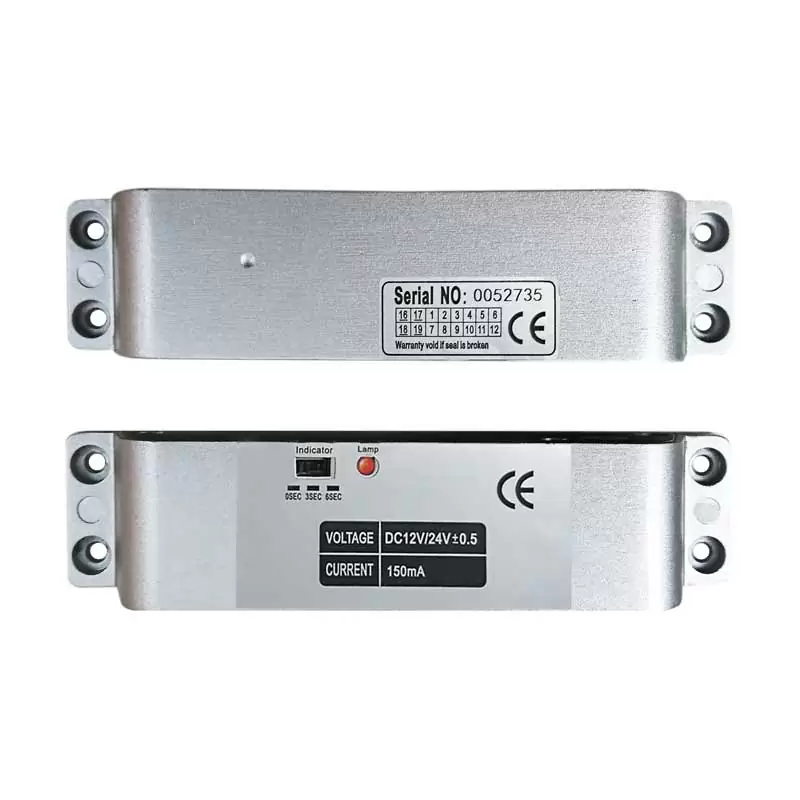

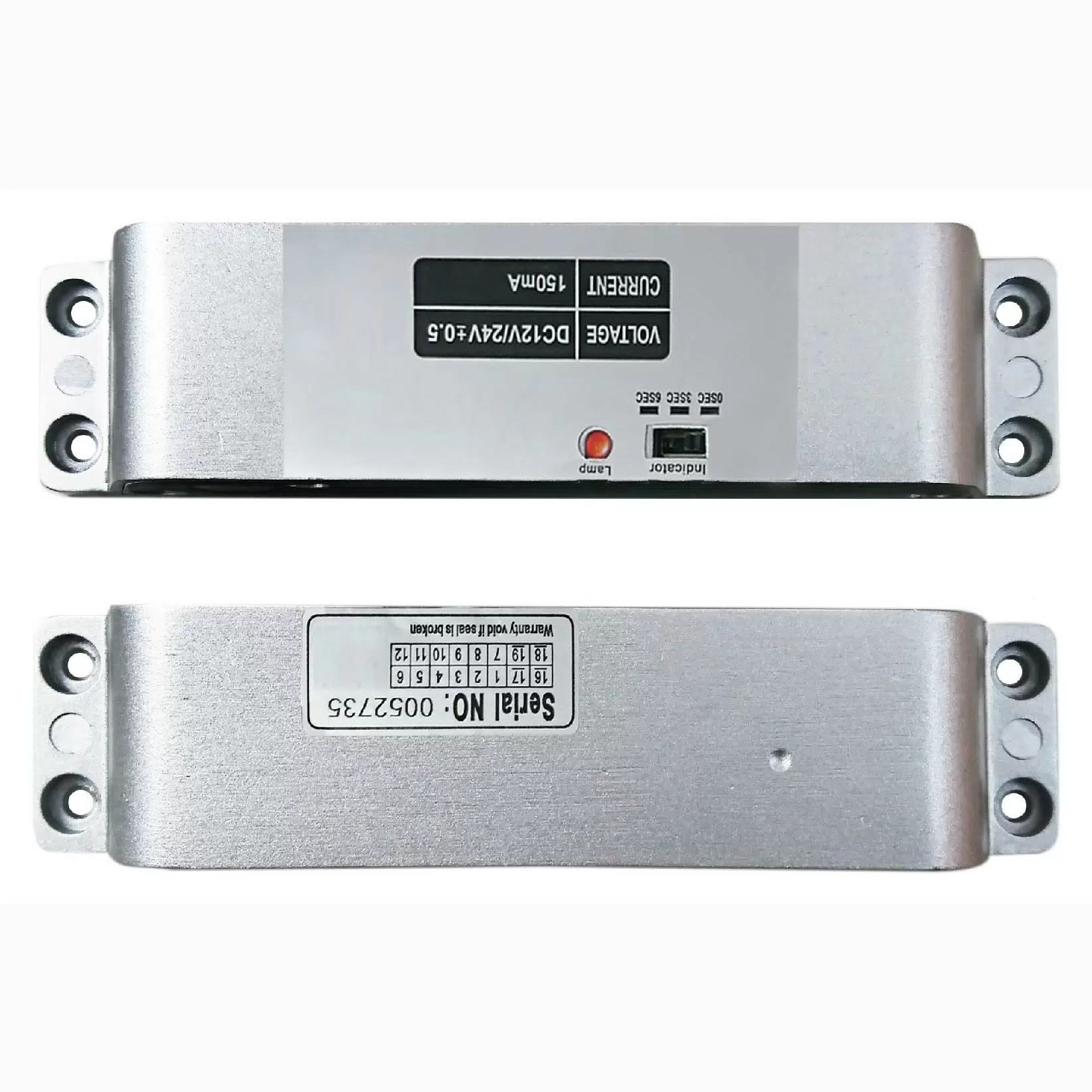

Surface Mount Electric Dropbolt – Fail Safe
Product
Features
- Door position status monitor output contact and indicator
- Adjustable door lock delay timer
- For emergency door, glass door and frameless glass door. Wooden door
Specification
| MODEL NO. | DA-15 | DA-15-24V |
| TYPE | Fail Safe | |
| VOLTAGE / CURRENT | DC12V(150mA) | |
| TIME DELAY | 6 Sec. / 3 Sec. / 0 Sec. | |
| LED INDICATOR | YES | |

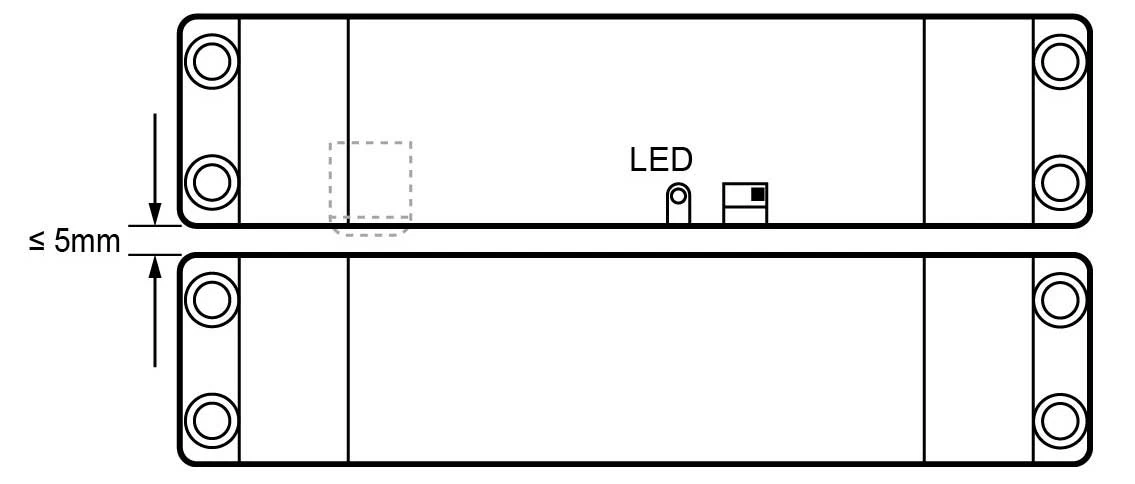

| DOOR POSITION SENSOR | YES | |
| DIMENSION (LXWXD)MM | 150x34x5.6 | |
| NET WEIGHT (G) | 520g±1% | |
| BRACKET | --- | |

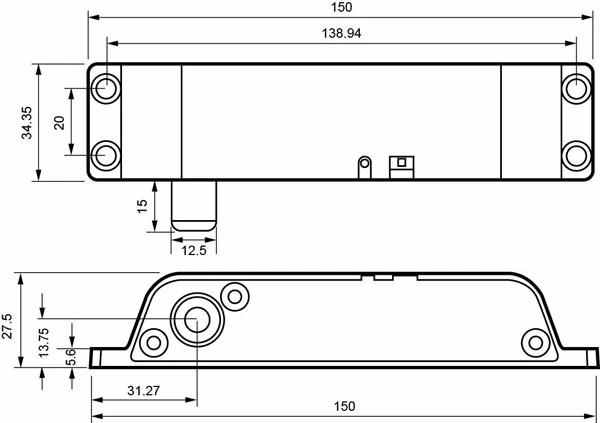

Dimension: Unit: mm
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
DA-15 ; DA-15-24V
Voltage / Current
DC12V(150mA)
Time Delay
6 Sec. / 3 Sec. / 0 Sec.
LED indicator
YES
Door position sensor
YES
Dimensions (L x W x D) mm
150x34x5.6
Net Weight (g)
520g±1%
Bracket
---
