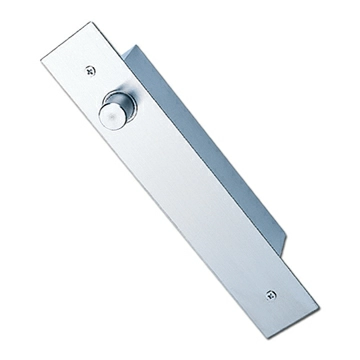

Model：DA-62AD
Electric Dropbolt(Drop to hold position by magnetic)
Product
Product Description
•For access control systems with high traffic doors which are fail-safe operation.
•Operation: Drop to hold position by magnetic.
•Release as power off.
•With magnetic switch for sensoring door position.
•With door monitoring and adjustable door release monitoring time.(3, 6, 10sec.)
•With adjustable timer to lock.
•With electronics control for over heating.
Specifications
| Approx. Weight | 750 g |
| Nominal Voltage | DC 12V |
| Voltage Tolerance | ±10% |
| Standby Current | 290 mA |
| Working Current | 950 mA |
| Power Consumption | 3.2W (Standby) / 11W (Work) |
| Operating Temperature | -20°C ~ 70°C |
Application
For emergency door, swing glass door, wooden door

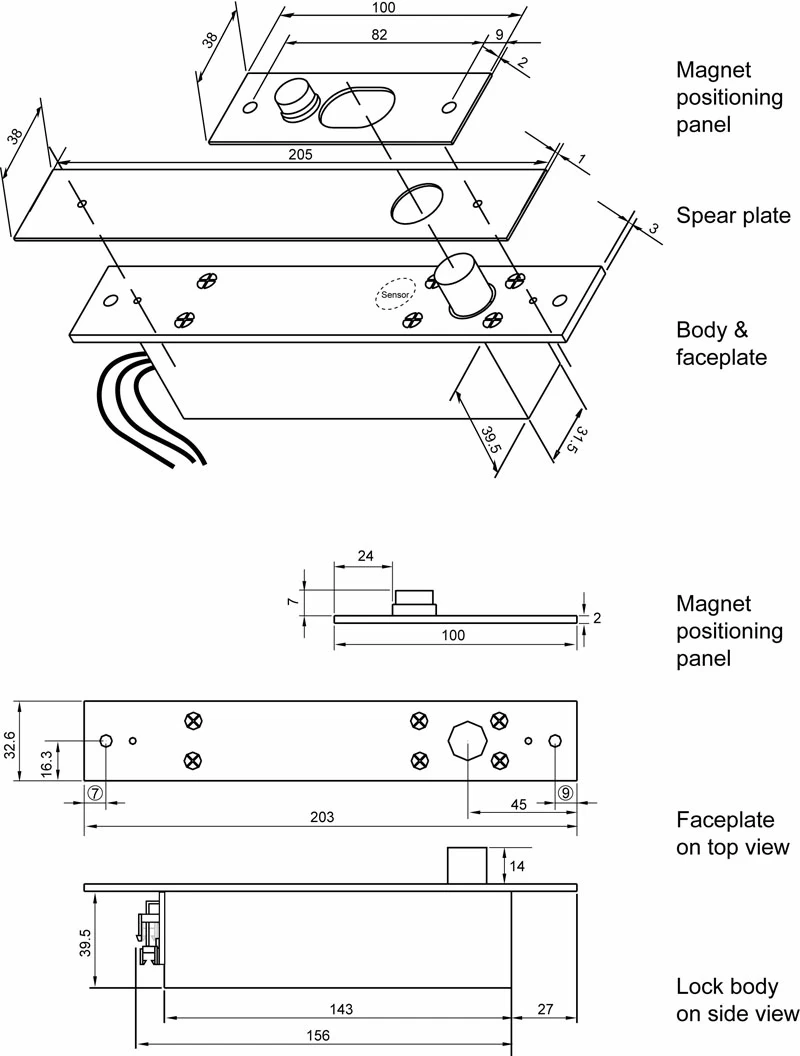

Dimension:Unit(mm)
Accessories

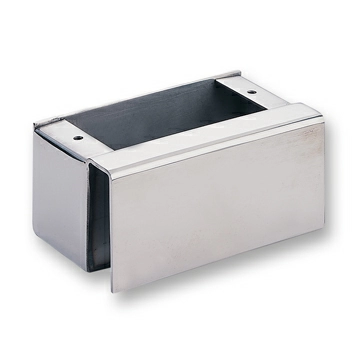

Fixed bracket PG-STC
How to order
DA-62A/D:Fail safe type electric drop bolt, DC12V
DA-62A/D-24V:Fail safe type electric drop bolt, DC24V
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
DA-62AD
Approx. weight
750g
Nominal voltage
DC12V
Voltage tolerance
10%
Standby current
290mA
Working current
950mA
Temp. range
-20°C ~ 70°C
Power consumption
3.2W(standby) / 11W(work)
