Model：DA-70
Electric Dropbolt for Automatic Door - Fail-Safe
Product
Features

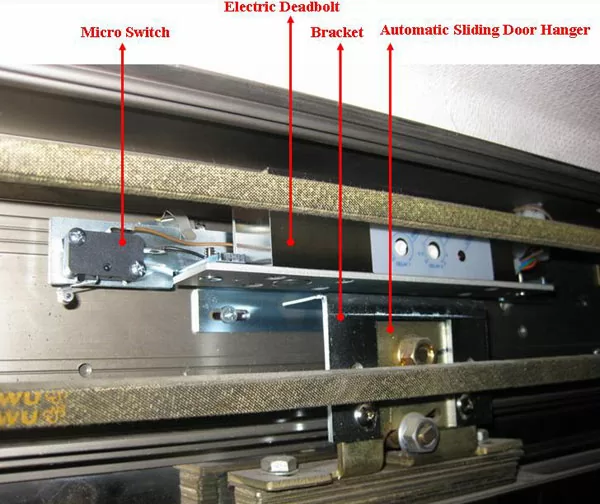

- With micro switch door position sensor
- Door position status monitor output contact
- Support Time Delay Setting
Specification
| Model No. | DA-70 | |
| Voltage / Current | DC 12V (Standby: 250 mA / Working: 900 mA) | |
| Time Delay | 1 / 2 / 3 / 4 / 5 sec. | |
| LED Indicator | — | |

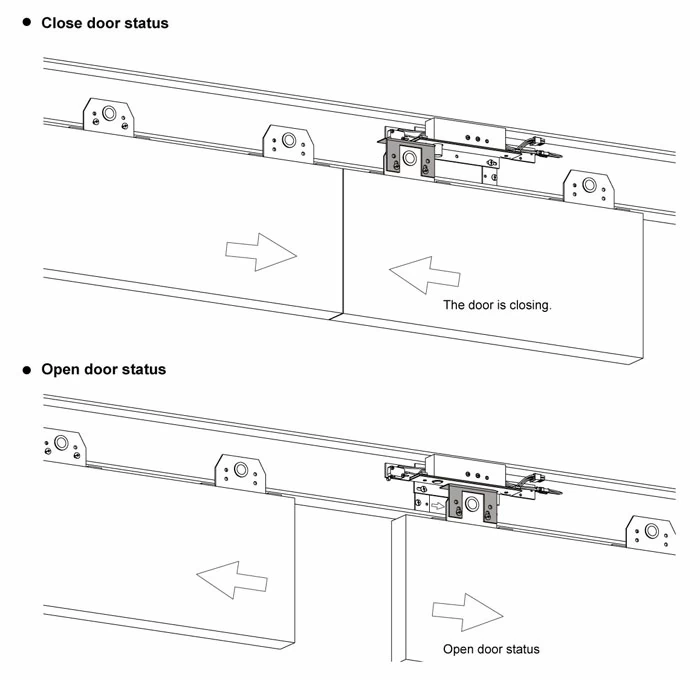

| Door Position Sensor | YES | |
| Dimensions (L x W x D) | Faceplate | 203 x 33 x 3 mm |
| Lock Body | 143 x 32 x 40 mm | |
| Net Weight | 2,000 g ± 1% | |

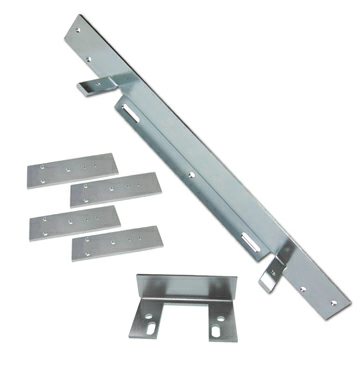

| Bracket | Included | |

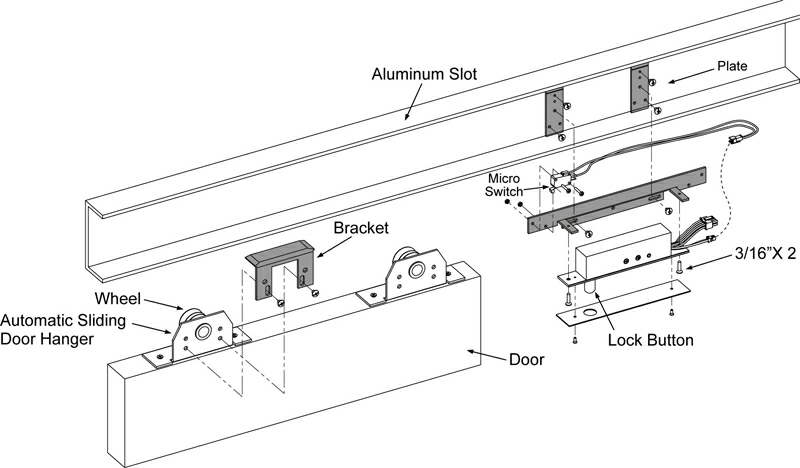

Dimension: Unit(mm)
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
DA-70
Type
Fail-Safe
Voltage / Current
DC12V(Standby:250mA, Working:900mA)
Time Delay
5 Sec. / 4 Sec. / 3 Sec. / 2 Sec. / 1 Sec.
LED indicator
---
Door position sensor
YES
Dimensions (L x W x D) mm
Faceplate：203x33x3 / Lock：143x32x40
Net Weight (g)
2000g±1%
Bracket
Included
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
