Model：DA-66S

Electric Dropbolt – Fail Safe (Ultra Narrow)

Selection Guides For Electric Dropbolt

Compare Inquiry (0)

Product
Specification
Download

Product

Features

Ultra Thin & Narrow innovative design, Smart / Simple / Elegant
Door position status monitor output contact
Adjustable door lock delay timer
For emergency door, glass door and frameless glass door. Wooden door

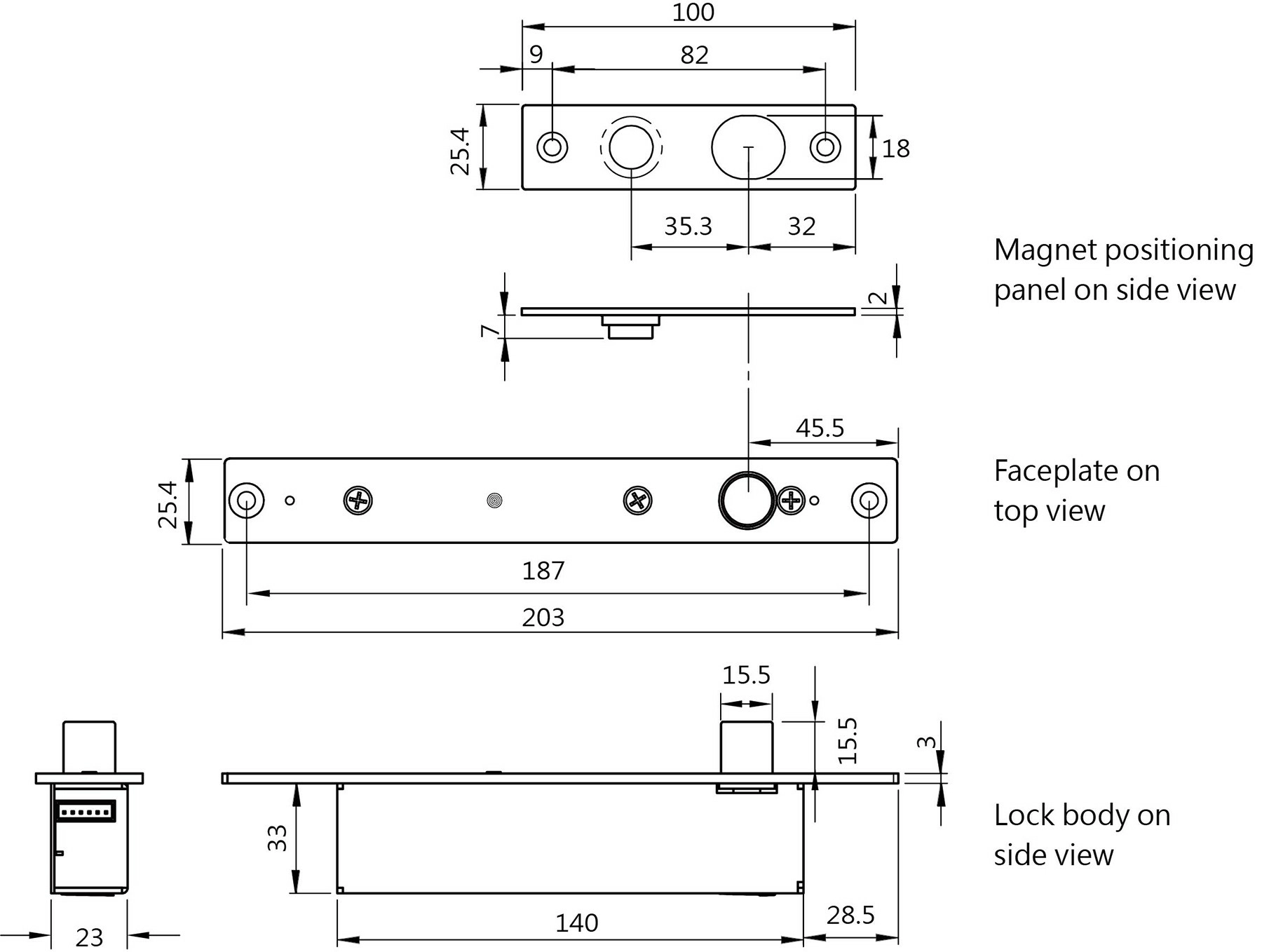

Dimension: Unit(mm)

Ordering information

DA-66S	Fail safe type Flush Mounted Electric Drop Bolt, Door Release Time(4, 5, 10sec.)
DA-66S-I	Fail safe type Flush Mounted Electric Drop Bolt, Lock immediately

We reserve the right to change the specification without prior notice or obligation!

proimages/declaration-from-Pongee-Taiwan.jpg

Specification

Net Weight (g)

570g±1%

LED indicator

YES

Model No.

DA-66S

Type

Fail Safe

Voltage / Current

DC12V(Standby:120mA, Working:1000mA)

Time Delay

10 Sec. / 5 Sec. / 4 Sec.

Door position sensor

YES

Lock

140x23x33

Bracket

---

Download

DA-64

Download

※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.

Electric Dropbolt – Fail Safe (Ultra Narrow)

Features

Dimension: Unit(mm)

Ordering information

DA-64
