Product
Features
- RFID reader with keypad
- Support 13.56MHz

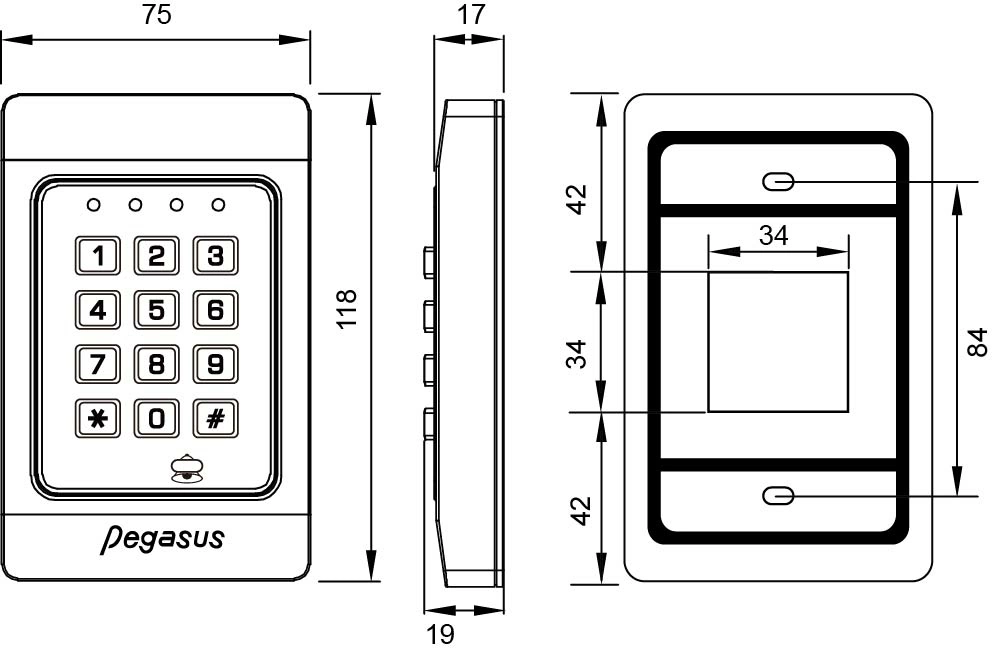

Dimension: mm
Application field
 |
 |
 |
 |
| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |
 |
 |
| Kiosk/POS System | Membership System | Library automation |
Ordering information
| PP-311DM0R2H05 | 13.56MHz Mifare card reader with keypad, RS-232, Hexadecimal, 8 digits, with checksum |
|---|---|
| PP-311DM0R5H04 | 13.56MHz Mifare card reader with keypad, RS-485, Hexadecimal, 10 digits, card number: in positive |
Accessories
| Feature | Avoid intervention |
|---|---|
| Model No. | R-21-310-3N(White) / R-21-310-3B(Black) |
| Dimension | 119.6(L) x 76.5(W) x 15(H)mm |
| Material | Acrylic |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Specification
Frequency
13.56MHz
IP Rating
IP54
Power Voltage
DC 12V
Dimensions (LxWxH)mm
118x75x17
Compatibility
ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional)
Output Format/ Interface
RS-232 /RS-485
