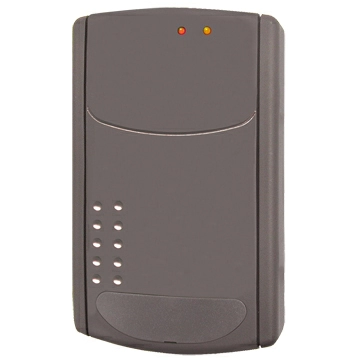

Model:PP-690M2

RFID Card Reader and Writer / Programmer

compare Compare Request a Quote (0)
Product

Features

  • PP-690/M2 Mifare® Reader/Writer with contactless smart cards are mostly applied in stored value or data applications, such as in access control, vending, toll road, ticketing, bank card, transit card, ID card, phone card, and various prepaid cards.

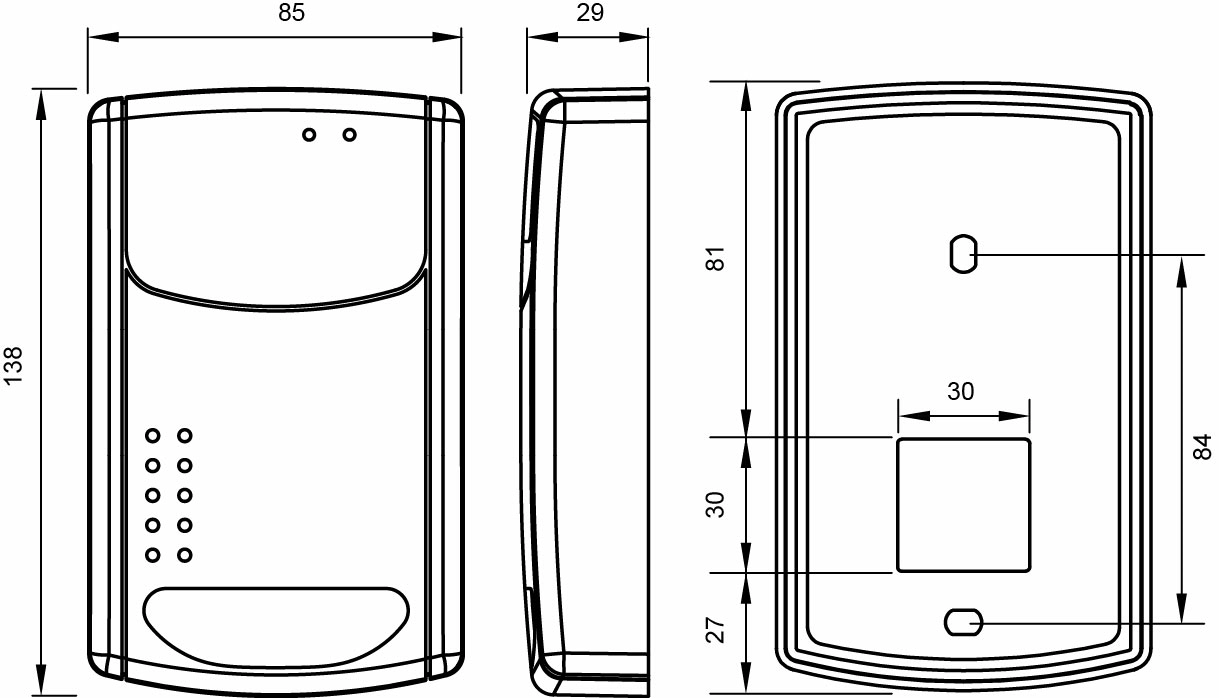

Dimension: Unit(mm)



Mifare is a registered trademark of NXP B.V.


We reserve the right to change the specification without prior notice or obligation!


proimages/declaration-from-Pongee-Taiwan.jpg
Specification
Frequency
13.56MHz
Compatibility
13.56MHz Mifare (ISO 14443A / 14443B / 15693)
Power Voltage
DC 12V
Interface
USB, RS-232, RS-485
System Support
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional)
IP Rating
IP54
Dimensions (L x W x D) mm
138x85x29
