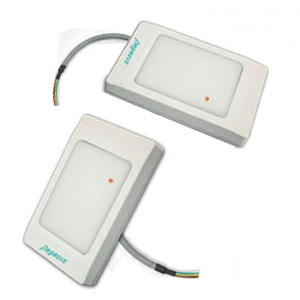

Model：PUA-310VM2
RFID Card Reader and Writer / Programmer
Compare
Product
Features

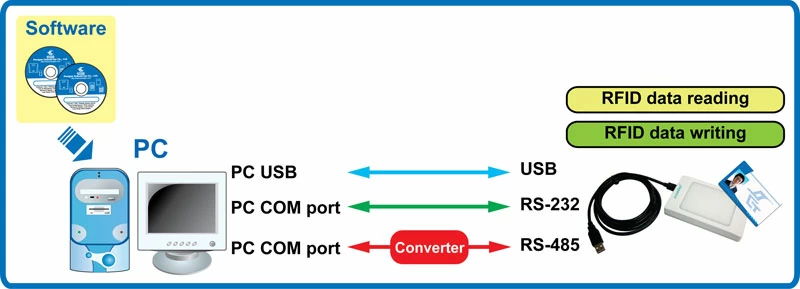

The RFID smart card reader and writer is designed to comply with ISO14443A / B、ISO15693 standard for reading and writing the smart card for various applications. such as prepaid value system for vehicle, ticket, membership club, dining, laundry, etc. it's easily to communicate with PC by USB or RS-232, RS-485 interface.

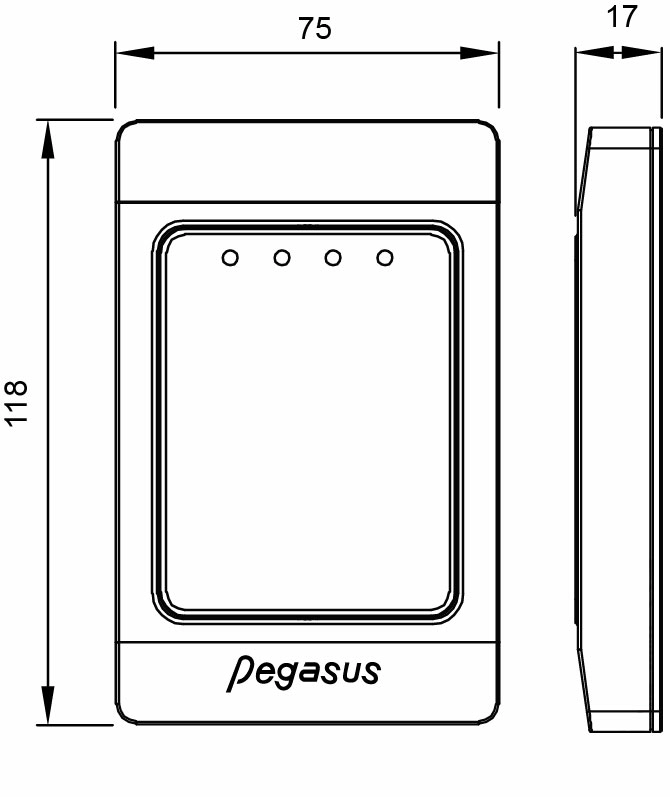

Dimension: Unit(mm)
Ordering information
| PUA-310V-0/M2R2/Y4 | Desktop, RS-232 interface , reader and writer , support ISO 14443A |
|---|---|
| PUA-310V-0/M2R2/Y4S | Desktop, RS-232 interface , reader and writer ,support ISO 14443A, Card number: in positive |
| PUA-310V-0/M2U2/Y4 | Desktop, USB interface , reader and writer , support ISO 14443A |
| PUA-310V-0/M2U2/Z2 | Desktop, USB interface , reader and writer , support ISO 15693 |
| PUA-310V-0/M2U2/Z1 | Desktop, USB interface , reader and writer , support ISO 14443A / 14443B / 15693 |
| PUA-310V1-0M2R2Y4 | Surface mounting, RS-232 interface , reader and writer, support ISO 14443A |
| PUA-310V1-0/M2R5/Y4 | Surface mounting, RS-485 interface , reader and writer, support ISO 14443A |
| PUA-310V1-0M2R2Y4-5V | Surface mounting, RS-485 interface , reader and writer, support ISO 14443A, DC 5V |
| PUA-310V1-1/M2U2/Y4B | Surface mounting, USB interface , reader and writer, support ISO 14443A, with epoxy, black |
Optional Accessories

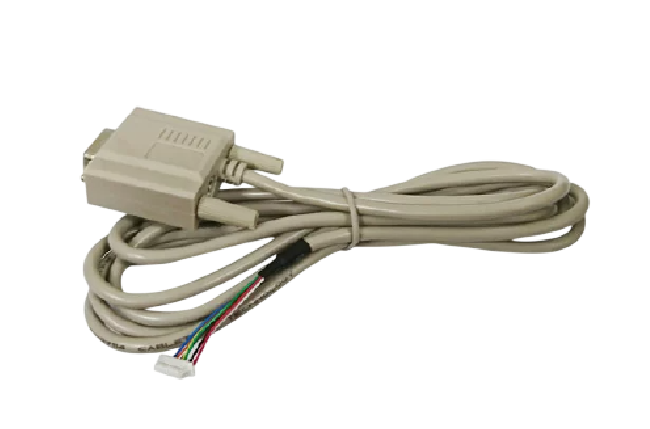

R-12-310R2-1800-1 : RS-232 Cable

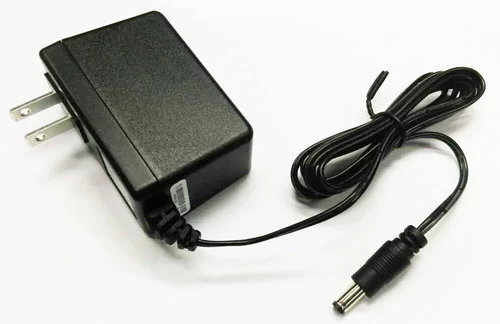

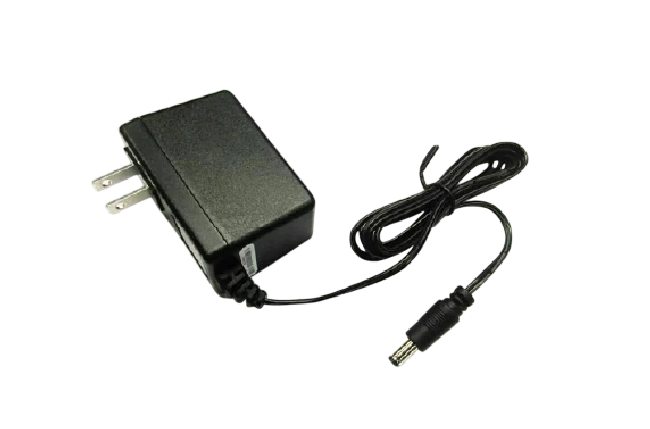

PG-ADAPTER/100-240-3 :100-240V Adapter

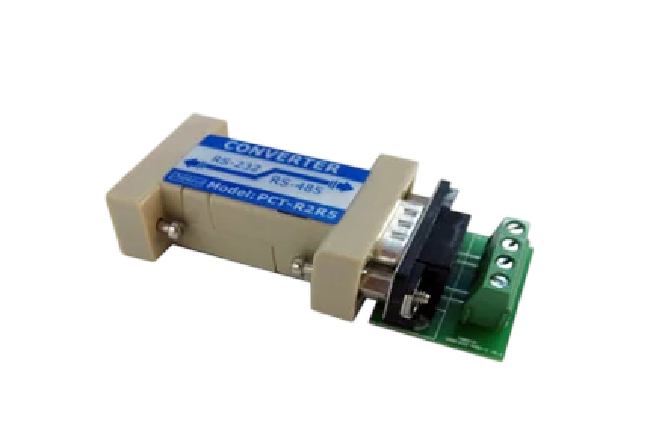

PCT-R2R5: RS-232 to RS-485 Interface Converter

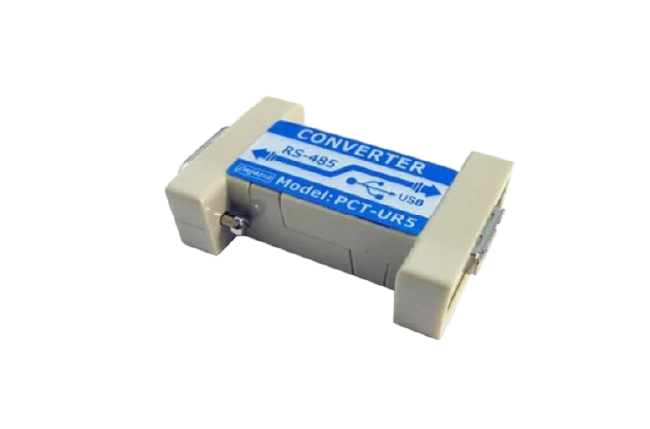

PCT-UR5: USB to RS-485 Interface Converter

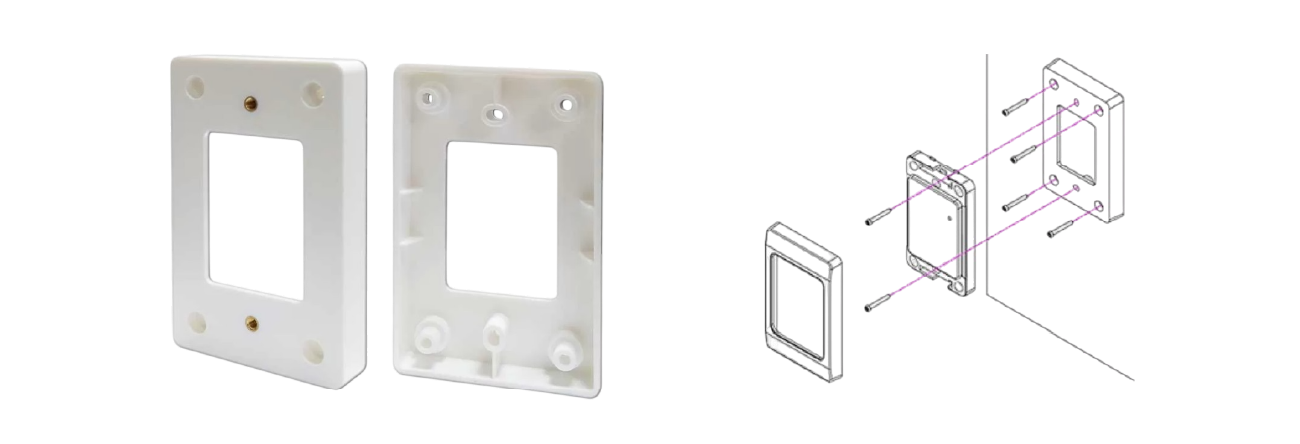

R-21-310-3N : Insulator for PUA-310V1
- Dimension : 119.6(L) x 76.5(W) x 15(H)mm
- Feature : Avoid intervention
- Material : Acrylic
Mifare is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Specification
Frequency
13.56MHz
IP Rating
IP54
Model No.
PUA-310VM2
Interface
USB, RS-232, RS-485
Power Voltage
DC 5V / DC 12V
Compatibility
13.56MHz Mifare (ISO 14443A / 14443B / 15693)
DIMESIONS(LXWXD)MM
118x75x17
