Model：PW-710
Desktop RFID Card Reader and Writer / Programmer
Product
Features
- The RFID smart card reader and writer is designed to comply with ISO14443A / B、ISO15693 standard for reading and writing the smart card for various applications. such as prepaid value system for vehicle, ticket, membership club, dining, laundry, etc. it's easily to communicate with PC by USB interface.
- LED's normal state is in oragne when it’s power on, but LED will be changed to Green when the legal card is read and beeps twice.

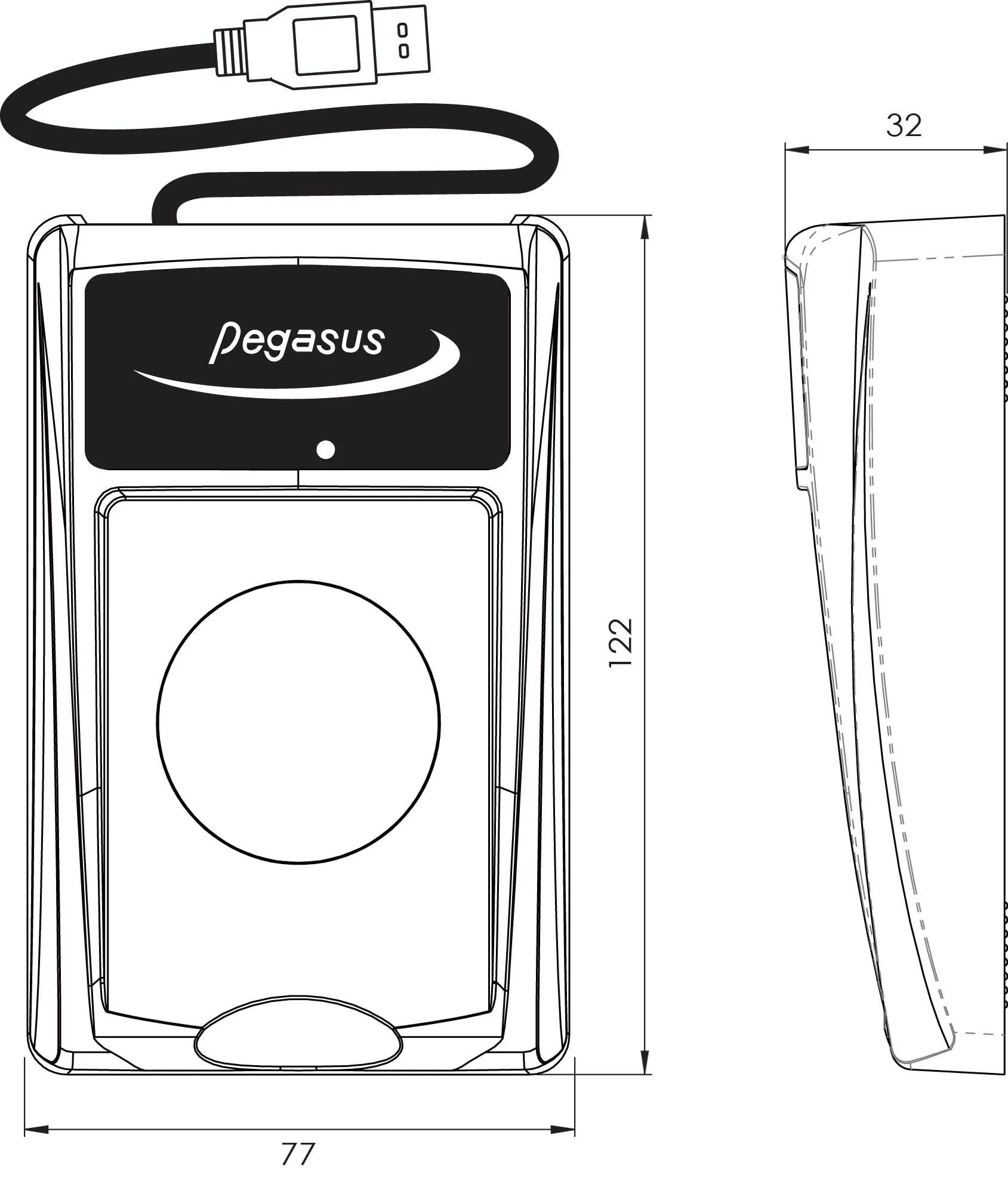

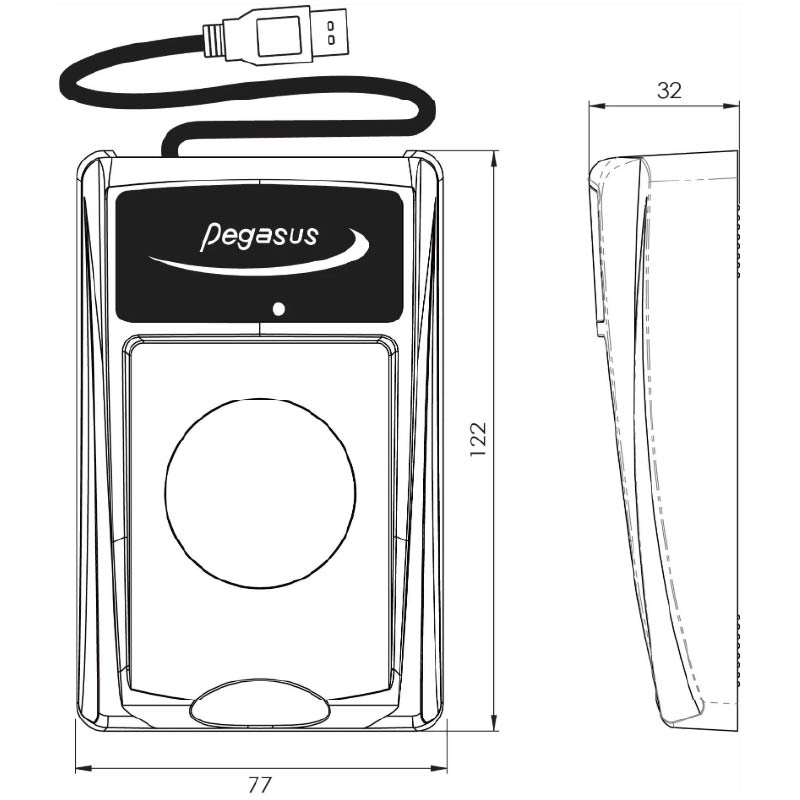

Dimension: Unit: mm

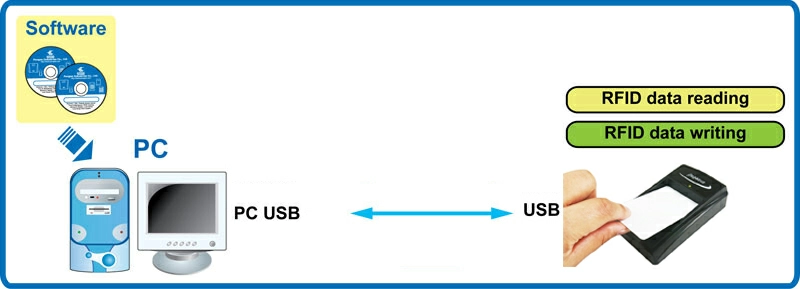

Application field
- Prepaid value function.
- Member system.
- RFID data reading.
- RFID data writing.
Ordering information
| PW-710-0M2U2Y4 | Desktop, USB interface , reader and writer , support ISO 14443A |
|---|---|
| PW-710-0M2U2Z2 | Desktop, USB interface , reader and writer , support ISO 15693 |
| PW-710-0M2U2Z1 | Desktop, USB interface , reader and writer , support ISO 14443A / 14443B / 15693 |
Mifare is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PW-710
Frequency
13.56MHz
Compatibility
13.56MHz Mifare (ISO 14443A / 14443B / 15693)
Power Voltage
By USB
Output Format Interface
USB
System Support
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional)
IP Rating
IP54
Dimensions (L x W x D) mm
122x77x32
