Contactless Card Reader

Features

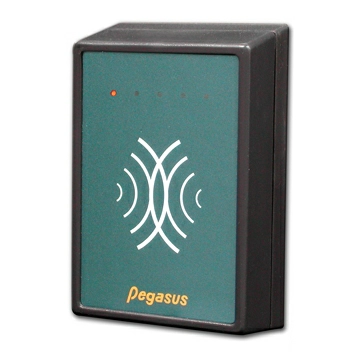

PP-5210 is one of the most compact indoor/outdoor proximity reader which is an advanced RFID contactless reader for connecting to Wiegand input of the access control systems.
125KHz ASK type and 26 bits Wiegand format output.

• Latest compact size.
• Contactless / proximity reading technology provides an user friendly solution access controller-no swiping or contact required.

Specifications

• Dimension : 115 (L) x 78 (w) x 31 (H) mm
• Weight : 450g ± 5%
• Mounting : Surface Mount, waterproof
• Power supply : 12 V DC
• Format : Wiegand 26/34 bits
• Reading range : 5~15 cm
• Frequency of operation : 125 KHz
• Operating temperature : -10°C ~ 75°C
• Humidity : 10%~90% RH, Non condensation
•

We reserve the right to change the specification without prior notice or obligation!
