Model：PUA-310V1M
Thin Model Mifare Card UID Reader
Compare
Product
Example Applications
Product Description
PUA-310V1/M is designed in accordance with ISO14443 type A standard to read or write the contactless card. This smart card reader utilizes Mifare® technology to read the memory cards, the advanced system to reduce the risk of tampered data or duplicated cards.
Supplies buzzer & LED responding signal.
- With multi card formats output thru DIP switch selection.(ASCII ID, Decimal and Hexadecimal)
- For higher security, our M3 series is applied with anti-duplication HF card.
- Free SDK available.

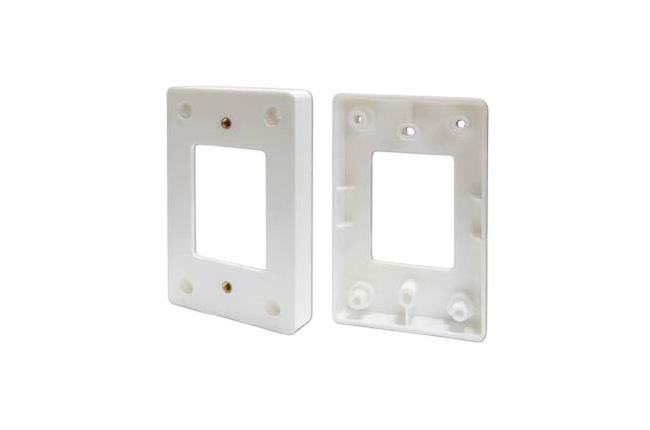

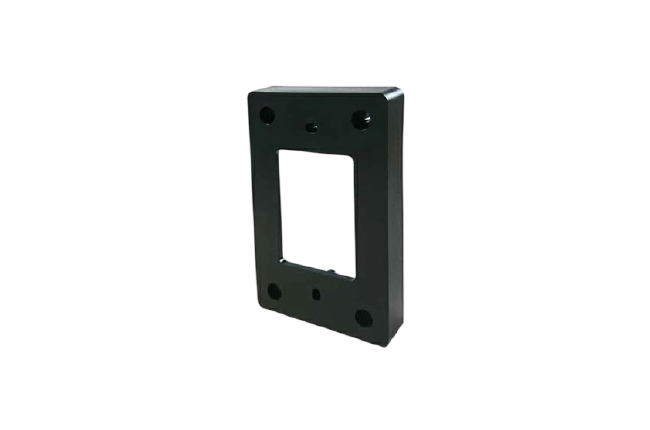

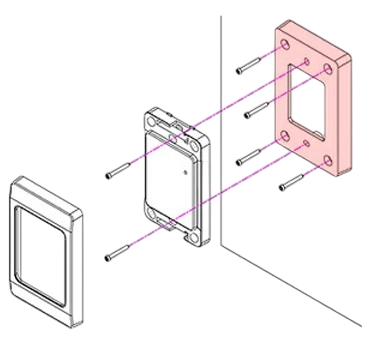

Accessories
| Feature | Avoid intervention |
|---|---|
| Model No. | R-21-310-3N(White) / R-21-310-3B(Black) |
| Dimension | 119.6(L) x 76.5(W) x 15(H)mm |
| Material | Acrylic |

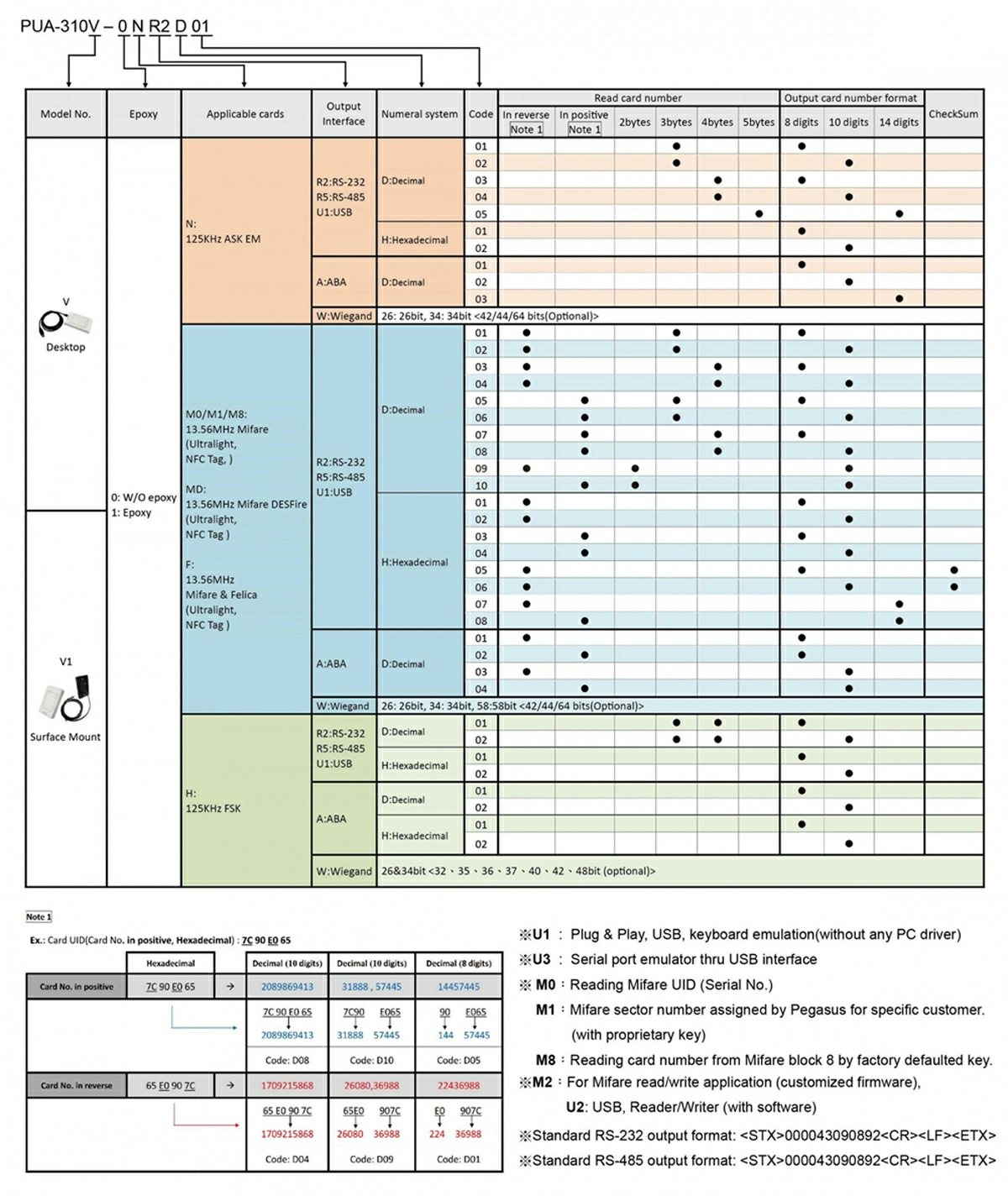

Ordering information
Mifare is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Specification
Operating temperature
-10°C ~ 75°C
Reading range
Max. 8cm
Frequency
13.56MHz
Applicable cards
Mifare S50 / S70, Mifare Ultralight, NFC Tag or compatible
Dimension
118 (L) x 75(W) x 17(H) mm
Power supply
DC 5V / 12V / 24V±10%, DC 7V~32V(Optional)
Mounting
Surface mount, waterproof
Card number type
Decimal / Hexadecimal, 8 digits / 10 digits
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
