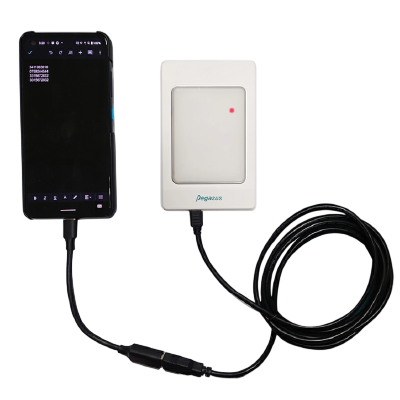

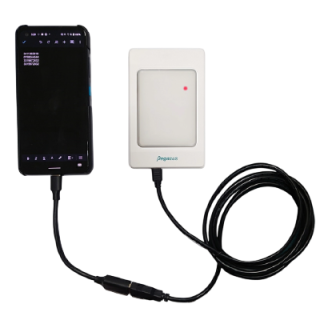

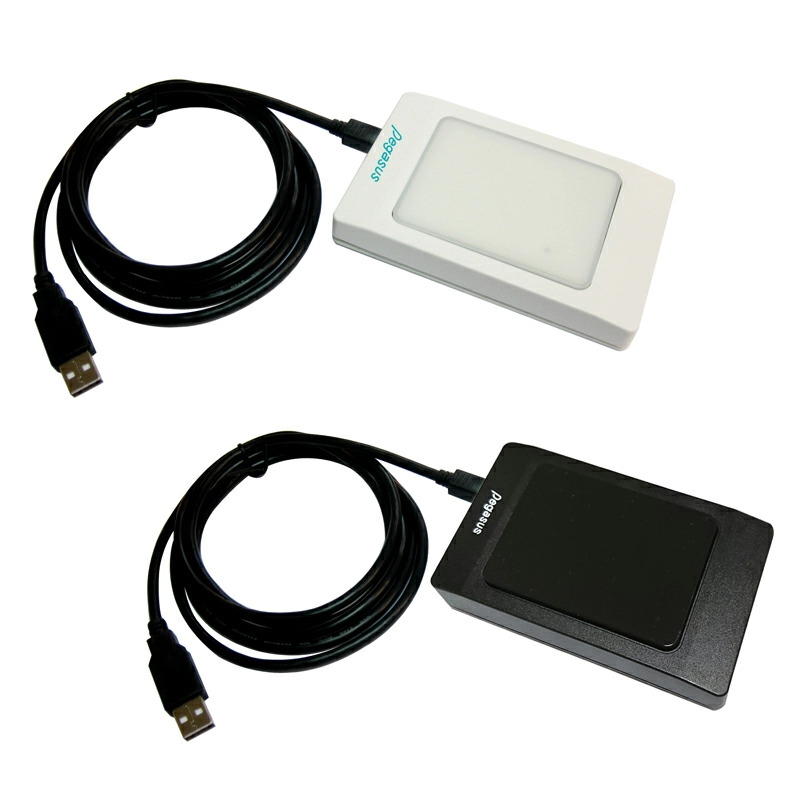

Model:PUA-310V

Multi RFID Reader

compare Compare Request a Quote (0)
Product

Features

  • Multi RFID reader & writer
  • Support 125KHz & 13.56MHz UID
  • 13.56MHz Writer
  • Desktop type

Specification
Model No. PUA-310V-0/N PUA-310V-0/H PUA-310V-0/M0 PUA-310V-0G PUA-310V-0NM0
Frequency 125KHz ASK 125KHz FSK 13.56MHz 13.56MHz 125KHz & 13.56MHz
Compatibility ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 H.I.D. ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESfire, NFC Ntag213/215/216 Felica, Mifare, Mifare Ultralight, Mifare DESFire, NFC Ntag213/215/216, ISO14443B, ISO15693 ISO18000-2 EM4001, 4100, 4102, TEMIC 5567, ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC Ntag213/215/216
Power Voltage DC 5V / 12V / 24V±10%,  DC 7V~32V(Optional)
Output Format/
Interface
Wiegand / ABA / UART / RS-232 / RS-485 / USB
Device Driver Operating System Support *Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10
*Mac OS 8/9, OS X
*Linux/Android
*Windows 11(Optional)
IP Rating  IP54

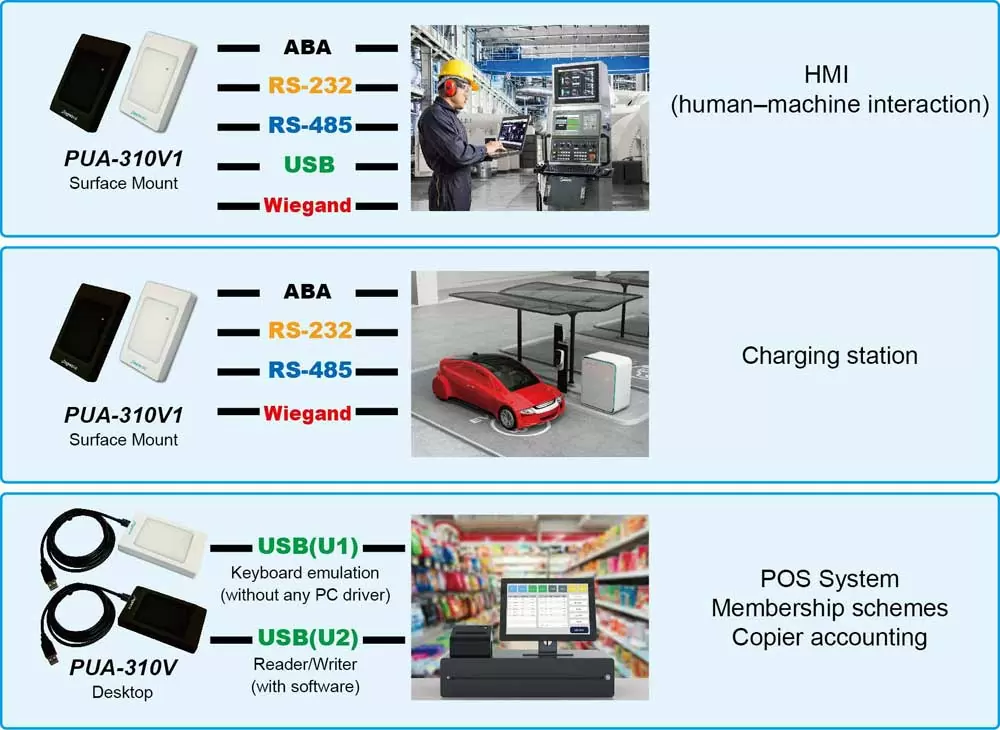

applications-for-PUA-310E


PUA-310V

Dimension: Unit(mm)

Dimension

Application field

Application field

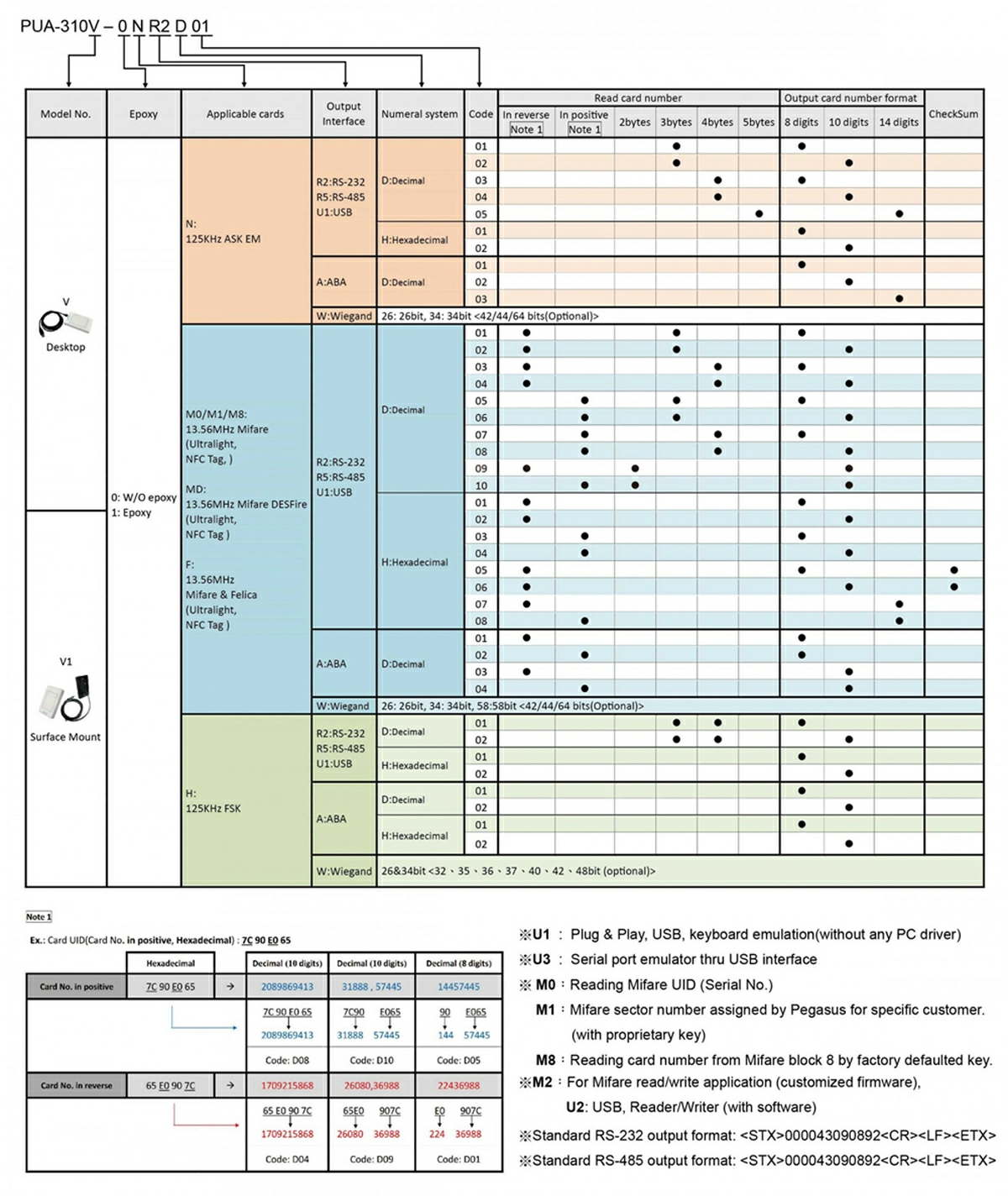

Ordering information




Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.

We reserve the right to change the specification without prior notice or obligation!


proimages/declaration-from-Pongee-Taiwan.jpg
Specification
Model No
PUA-310V
RFID frequency
125KHz / 13.56MHz
Compatibility
ISO18000-2 EM4001, 4100, 4102, TEMIC 5567, H.I.D., Felica, Mifare, Mifare Ultralight, Mifare DESFire, NFC Ntag213/215/216, ISO14443B, ISO15693
Output Format/ Interface
Wiegand / ABA / UART / RS-232 / RS-485 / USB
Power Voltage
DC 5V / 12V / 24V ± 10%, DC 7V ~ 32V (Optional)
Device Driver Operating System Support
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional)
Dimensions (L x W x D) mm.
118 x 75 x 17
IP Rating
IP54
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
