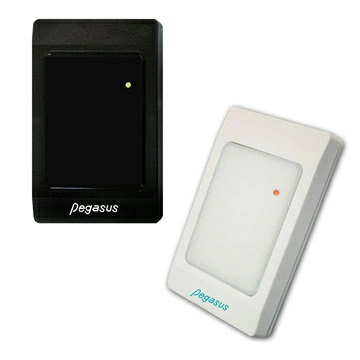

Product
Features
- Multi RFID reader & writer
- Support 125KHz & 13.56MHz UID
- Support Bluetooth function. (Optional)
- 13.56MHz Writer
- Surface mount, waterproof
- Device Driver Operating System Support:
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10
*Mac OS 8/9, OS X
*Linux/Android
*Windows 11(Optional)

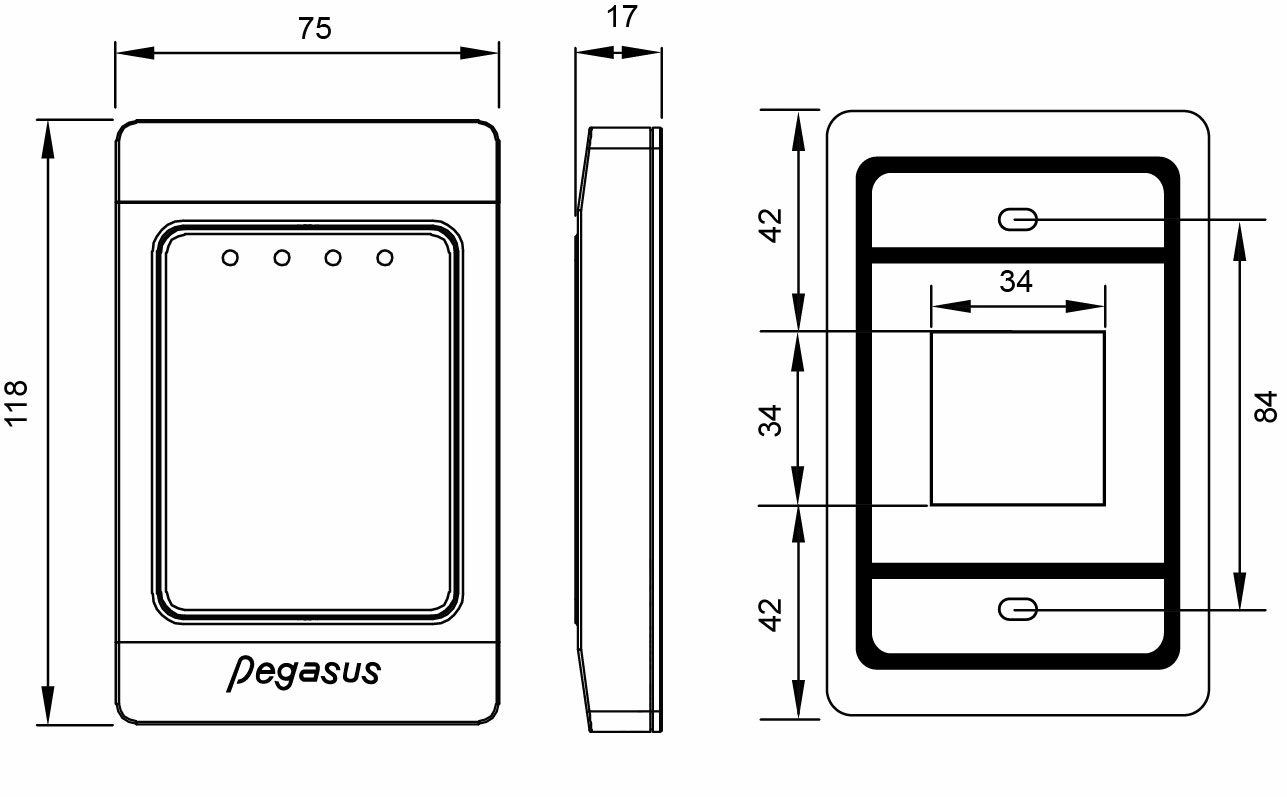

Dimension: Unit(mm)

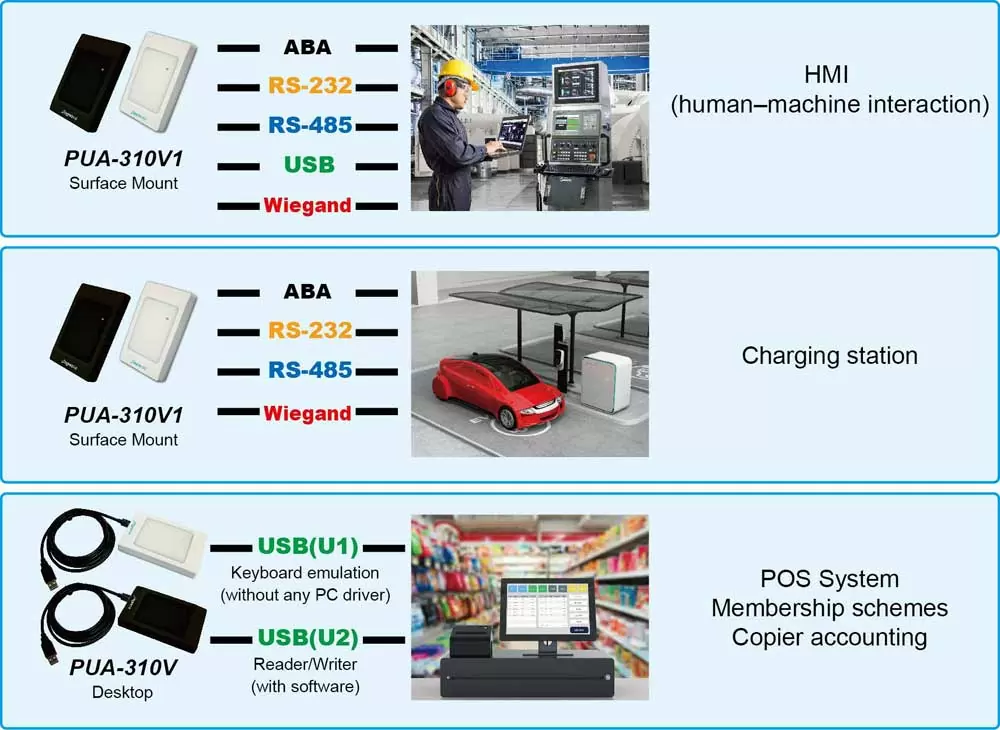

Application field
 |
 |
 |
 |
| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |
 |
 |
| Kiosk/POS System | Membership System | Library automation |

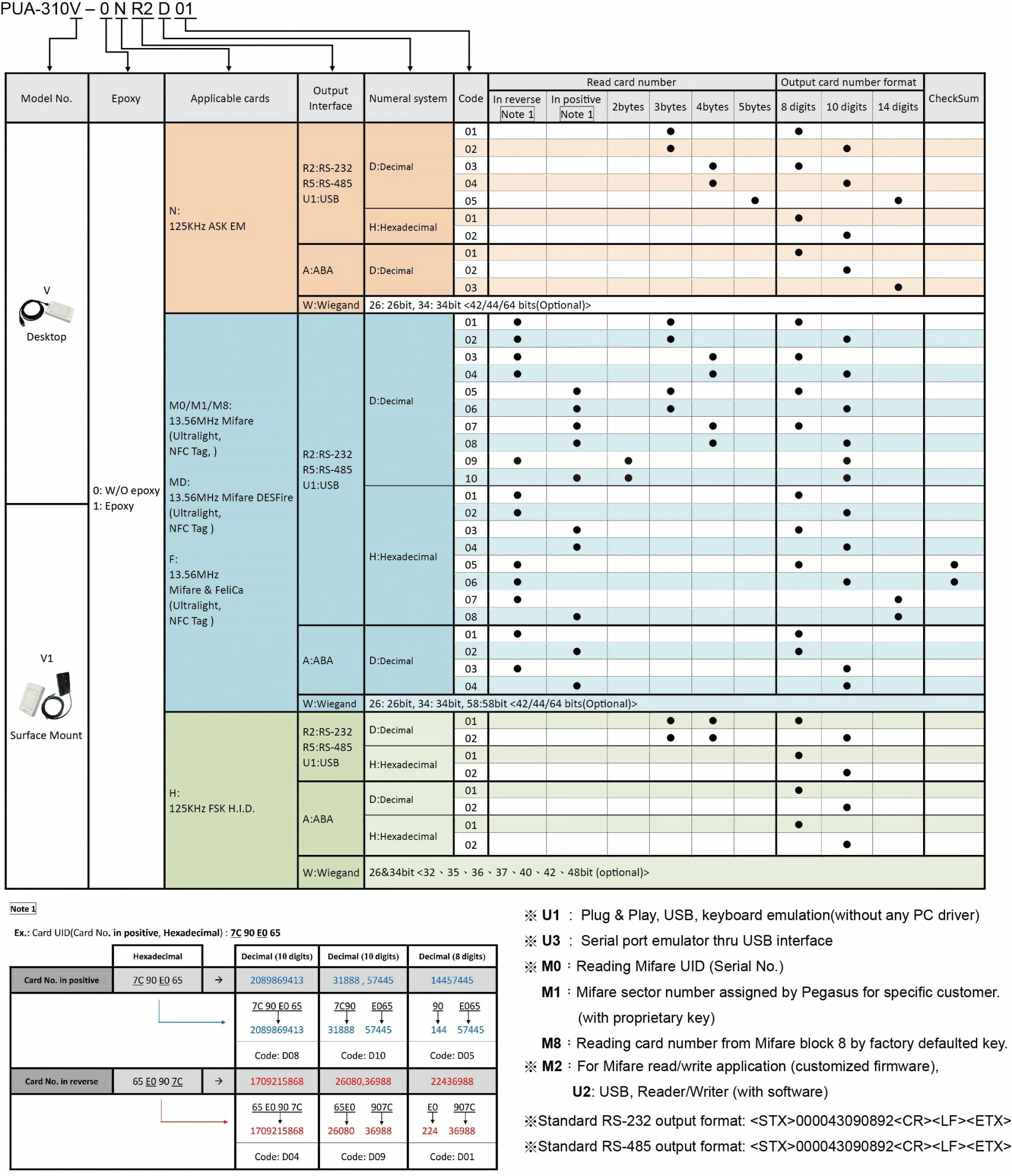

Ordering information

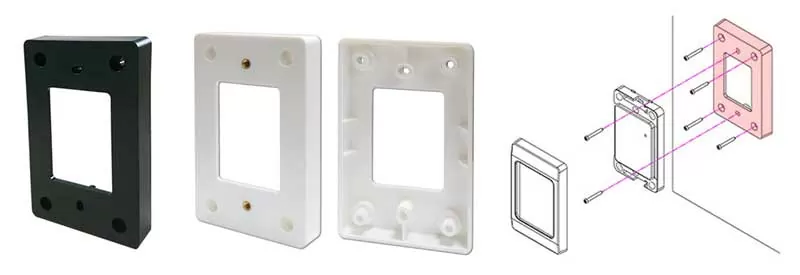

Accessories
| Feature | Avoid intervention |
|---|---|
| Model No. | R-21-310-3N(White) / R-21-310-3B(Black) |
| Dimension | 119.6(L) x 76.6(W) x 15(H)mm |
| Material | Acrylic |
MIFARE DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specifications subject to change without notice for further modification.
Specification
Frequency
13.56MHz
Compatibility
Felica, Mifare, Mifare Ultralight, Mifare DESFire, NFC(card simulation), ISO14443B, ISO15693
Power Voltage
DC 5V / 12V / 24V±10%, DC 7V~32V(Optional)
Output Format/ Interface
Wiegand / ABA / UART / RS-232 / RS-485 / USB
System Support
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional)
IP Rating
IP54
Dimensions (L x W x D) mm
118x75x17
