Compare
Product
Features
- Long range reader
- Support 125KHz & 433.9MHz

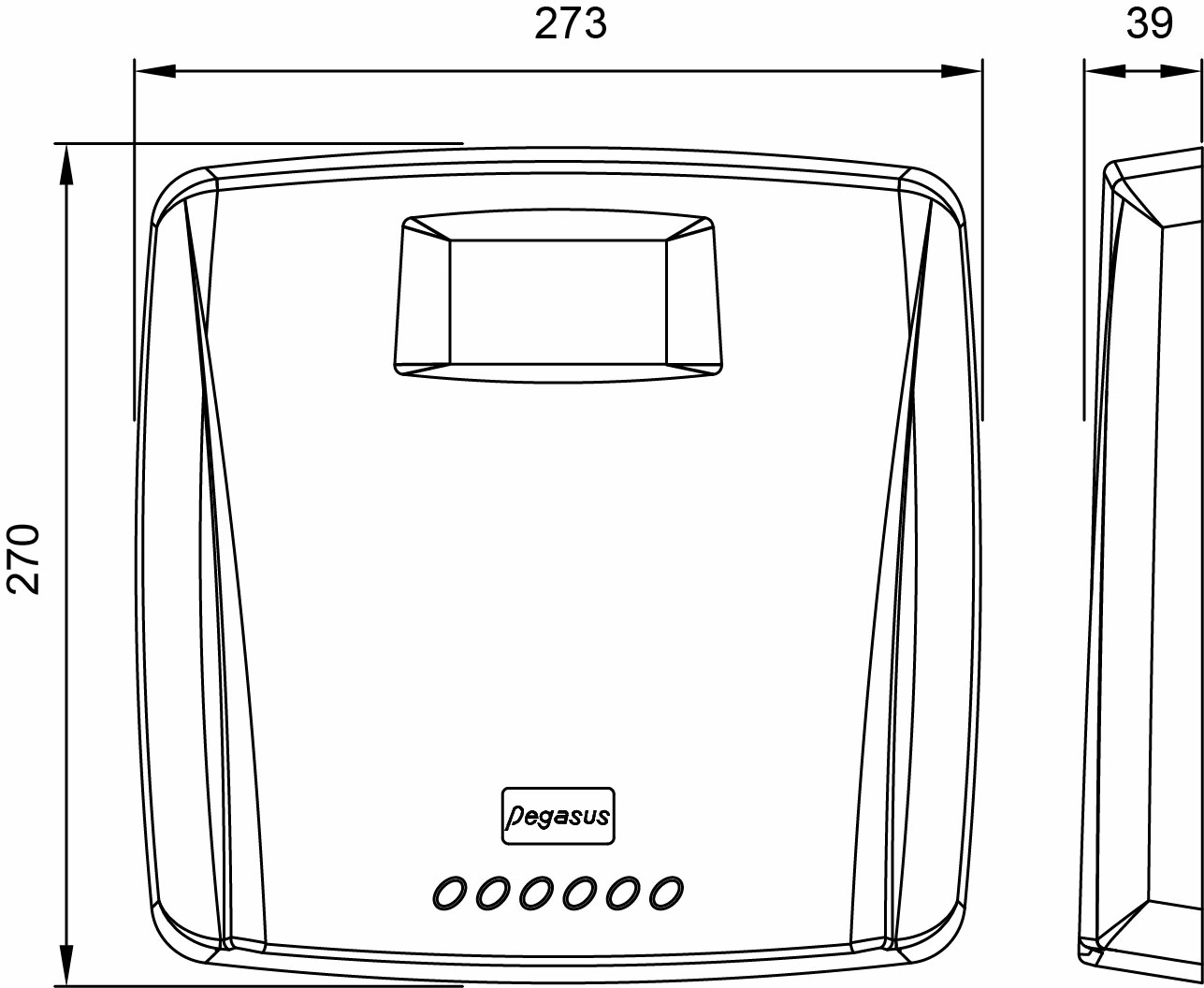

Dimension: Unit(mm)
Optional accessory

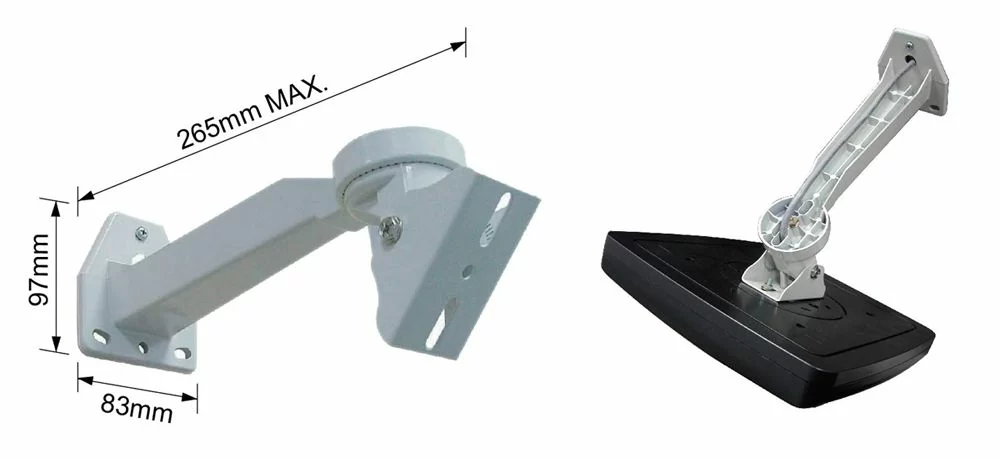

The bracket for PFH-9210 series : PGV-BRACKET/205N

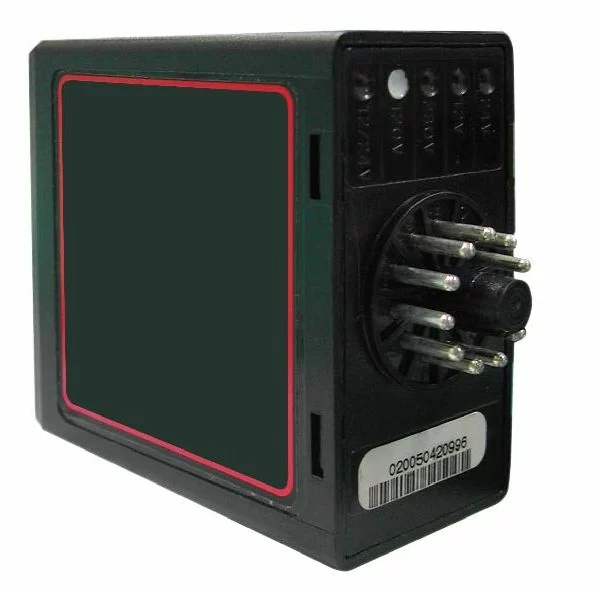

Vehicle loop detector:PK-PD-232

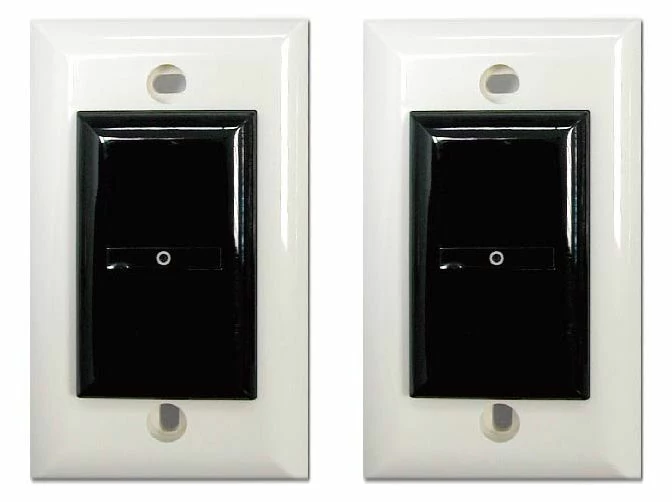

IR Sensor:LK-12HD
Ordering information
| PFH-9210-60-1/R2 | 125KHz RFID reader, with epoxy,RS-232 |
|---|---|
| PFH-9210-60-1/R5 | 125KHz RFID reader, with epoxy,RS-485 |
| PFH-9210-60-1/W | 125KHz RFID reader, with epoxy,Wiegand |
| PFH-9210-60-1A | 125KHz RFID reader, with epoxy,ABA |
We reserve the right to change the specification without prior notice or obligation!
Specification
Reading range
Max: 50-60cm
Frequency
125KHz ASK
IP Rating
IP54
Model No.
PFH-9210-60
Power Voltage
DC12V
Dimensions (LxWxH)mm
273x270x39
Compatibility
ISO18000-2 EM4001, 4100, 4102, TEMIC 5567
Output Format Interface
Wiegand / RS232 / RS485
