Touch Keypad Networked Controller
Features
- Single door (one-way or two-way control)
- Classic and slim design, suitable for installation in narrow place
- Support 32000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Multiple access method: Card only, PIN code only, Card with PIN code
- IP54 weatherproof for indoor/outdoor use
Specification
| Model No. | PP-33XNB | PP-33XM0B | PP-33XFB | |
|---|---|---|---|---|
| Frequency | 125KHz ASK | 13.56MHz | 13.56MHz | |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) | ISO18092 FeliCa | |
| User Capacity | 32,000 card capacity, 32,000 events | |||
| Power Voltage | DC 12V | |||
| Interface | RS-485 / RS-232 | |||
| Wiegand input | Wiegand (26/34 bits) | |||
| Input | Exit push button / Door monitor / Security sensor | |||
| Output | Alarm output / Tamper switch output / Electric lock output | |||
| Keypad | Touch Keypad | |||
| Material | PC | |||
| Dimensions (LxWxH)mm | 118 x 75 x 17 | |||
| IP Rating | IP54 | |||
System configuration

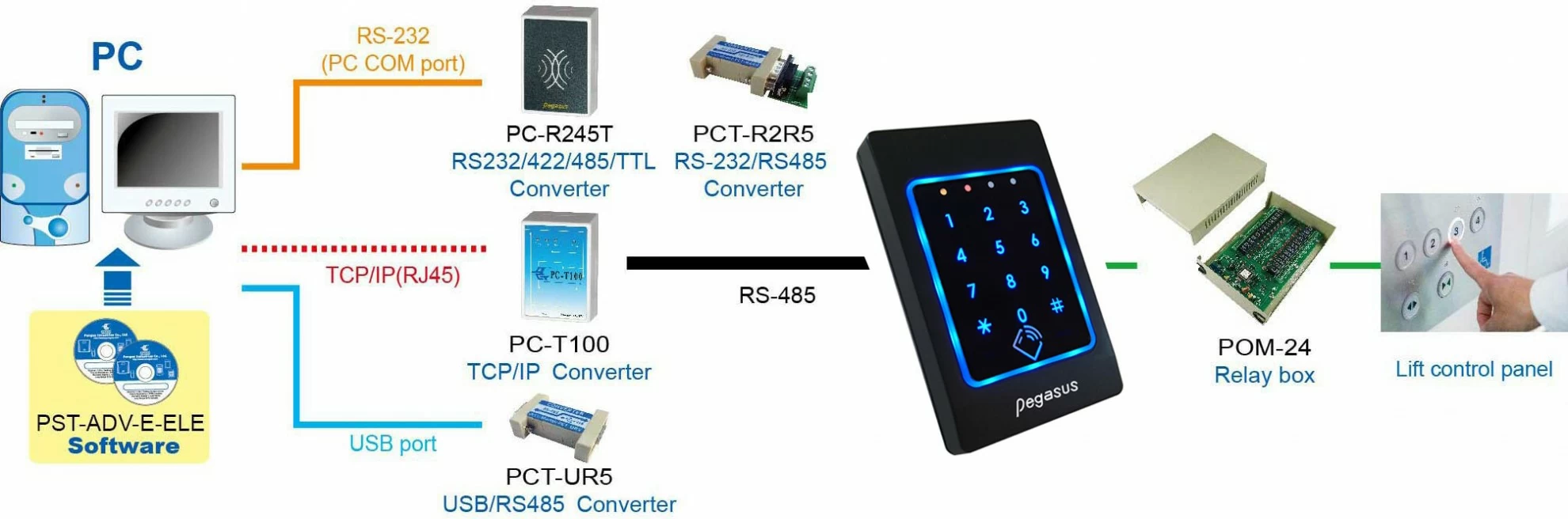

Lift access controller system
Dimension: mm
Accessories
| Model No. | R-21-310-3B |
| Feature | Avoid intervention |
| Dimension | 119.6(L) x 76.6(W) x 15(H)mm |
| Material | ABS |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PP-33 | 2025-10-31 | Networked Controller Catalog |
