Model：PML-2101
1200LBs, 540KGs Electromagnetic Lock
Product
Features
- Holding force: 1200LBs (540KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install

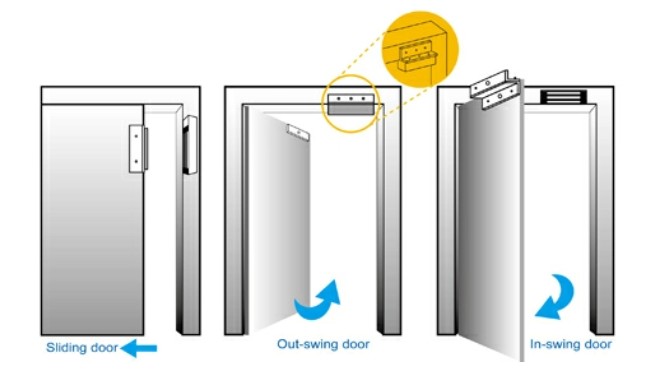

- Suitable for security door (IN & Out Swing)
- Electromagnetic Lock with safety strap(PML-2101K)
Specifications
| Model No. | PML-2100 | PML-2101 | |
| Holding Force | 1,200 LBS (540 KGS) | ||
| Voltage / Current | DC 12V (500 mA) / DC 24V (250 mA) | ||
| Door Monitoring | — | YES | |
| LED Indicator | Power LED | Power & Status LED | |
| Timer | — | YES | |
| Relay Dry Contact Rating | — | DC 24V / 1A, AC 125V / 500 mA | |
| Material | Magnet | Aluminum | |
| Armature Plate | Steel | ||
| Dimensions (L x W x D) | Magnet | 266 x 73 x 40 mm | |
| Armature Plate | 185 x 61 x 16 mm | ||
| Unit Weight | 5 kg ± 1% | ||
| Ingress Protection (IP) | — | ||
| Bracket Type | • L Bracket: PG-BLO210A • L & Z Bracket: PG-BLZ210A |
||
Application
For aluminum steel or wooden door, brass door, glass door with frame

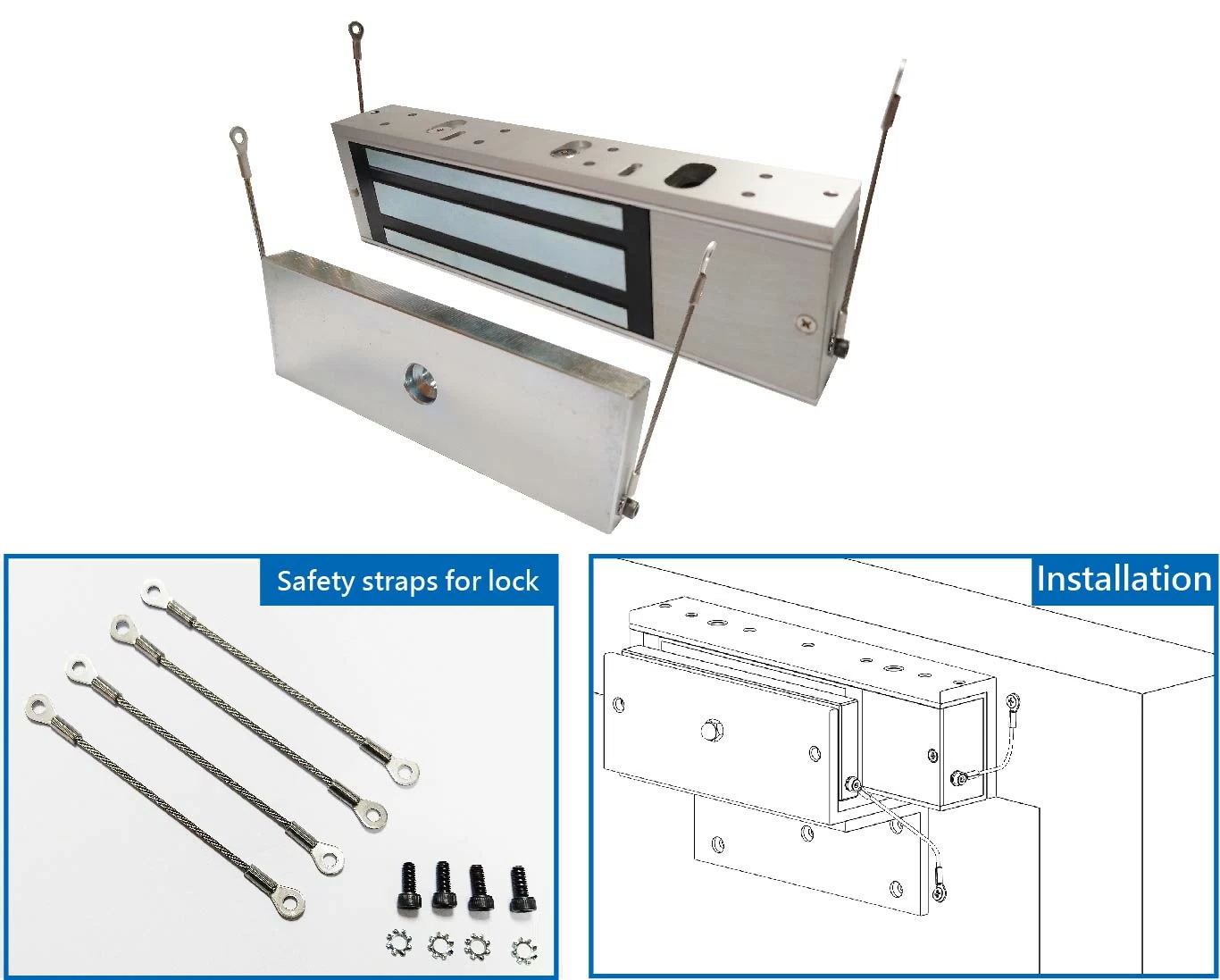

Electromagnetic Lock with safety strap(PML-2101K)
This maglock strap is designed to give the fitter peace of mind that - should their heavy maglock become dislodged - it will not fall and hurt passers-by or damage the equipment.
Accessories
L type fixed bracket-PG-BLO210A
L & Z fixed bracket - PG-BLZ210A
Specification
Model No
PML-2100 / PML-2101
Holding Force
1200LBs (540KGs)
Voltage / Current
DC 12V(500mA) / DC 24V(250mA)
Door monitoring
--- / YES
LED indicator
Power LED / Power & Status LED
Timer
--- / YES
Relay dry contact rating
--- / DC 24V/1A, AC 125V/500mA
Material
MAGNET：Aluminum / ARMATURE PLATE：Steel
Dimensions (L x W x D) mm
MAGNET：266x73x40 / ARMATURE PLATE：185x61x16
Ingress Protection (IP)
---
Bracket Type
L Bracket: PG-BLO210A / L &Z Bracket: PG-BLZ210A
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
