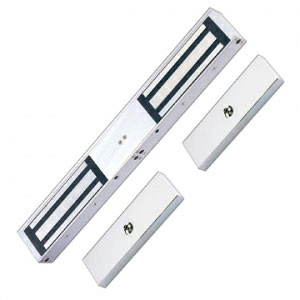

Model：PML-4101
1200LBs, 540KGs Electromagnetic Lock (Double Door)
Product
Features
- Holding force: 1200LBs (540KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install
- Suitable for double security door (IN & Out Swing)
Specification
| Model No. | PML-4100 | PML-4101 | |
| Holding Force | 1,200 LBS x 2 (540 KGS x 2) | ||
| Voltage / Current | DC 12V (1000 mA) / DC 24V (500 mA) | ||
| LED Indicator | POWER LED | Power & Status LED | |
| Timer | — | YES | |
| Relay Dry Contact Rating | — | DC 24V / 1A, AC 125V / 500 mA | |
| Material | Magnet | Aluminum | |
| Armature Plate | Steel | ||
| Dimensions (L x W x D) | Magnet | 532 x 73 x 40 mm | |
| Armature Plate | 185 x 61 x 16 mm | ||
| Unit Weight | 10 kg ± 1% | ||
| Ingress Protection (IP) | — | ||
| Bracket Type | • L Bracket: PG-BLO210A x 2 pcs • L & Z Bracket: PG-BLZ210A x 2 pcs |
||
Application
For aluminum steel or wooden door, brass door, glass door with frame
Dimensions : mm[inch]
Accessories
L type fixed bracket - PG-BLO210A x 2pcs
L & Z fixed bracket - PG-BLZ210A x 2pcs
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PML-4100 ; PML-4101
Holding Force
1200LBs x 2 (540KGs x 2)
Voltage / Current
DC 12V(1000mA) / DC 24V(500mA)
LED indicator
POWER LED ; Power & Status LED
Timer
--- / YES
Relay dry contact rating
--- / DC 24V/1A, AC 125V/500mA
Material
Magnet：Aluminum / Armature plate：Steel
Dimensions (L x W x D) mm
Magnet：532x73x40 / Armature plate：185x61x16
Unit weight (kg)
10kgs±1%
Ingress Protection (IP)
---
Bracket Type
L Bracket: PG-BLO210A x 2pcs / L &Z Bracket: PG-BLZ210A x 2pcs
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
