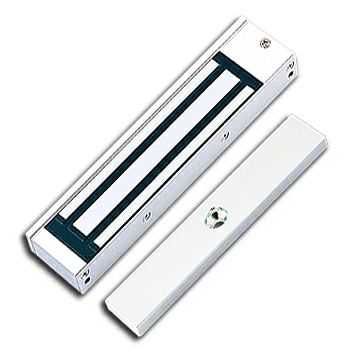

Model：PML-150
330LBs, 150KGs Electromagnetic Lock
Product
Features
- Holding force: 330LBs (150KGs).
- Voltage : 12V/24VDC (Selectable)
- Compact size; Easy to install
- Suitable for cabinet, Locker , and other similar devices

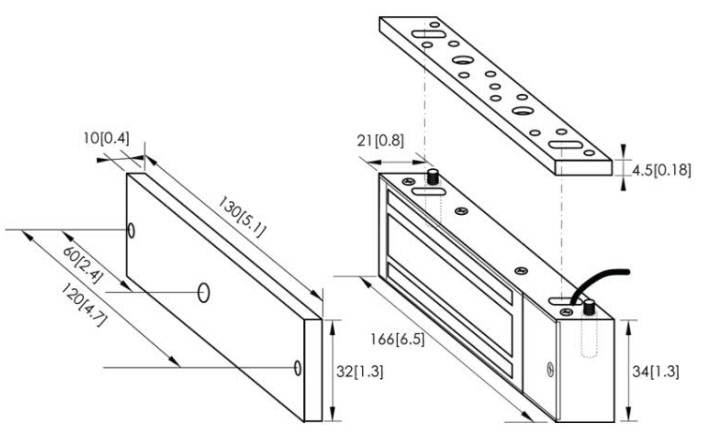

Dimensions: mm[inch]

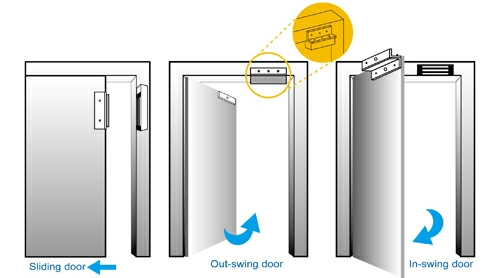

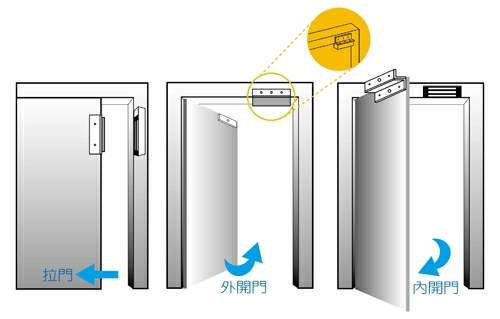

Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories

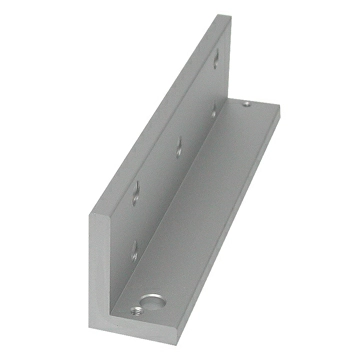

L type fixed bracket - PG-BLO151

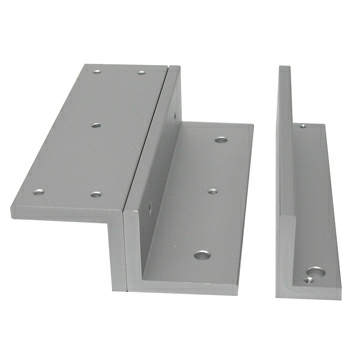

L & Z fixed bracket - PG-BLZ151

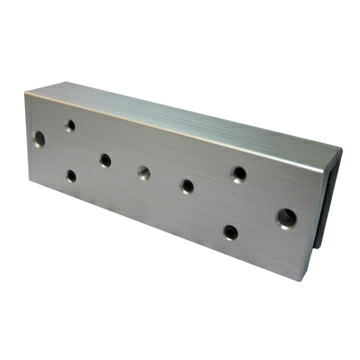

U type bracket - PG-BUO150
We reserve the right to change the specification without prior notice or obligation!
Specification
Material

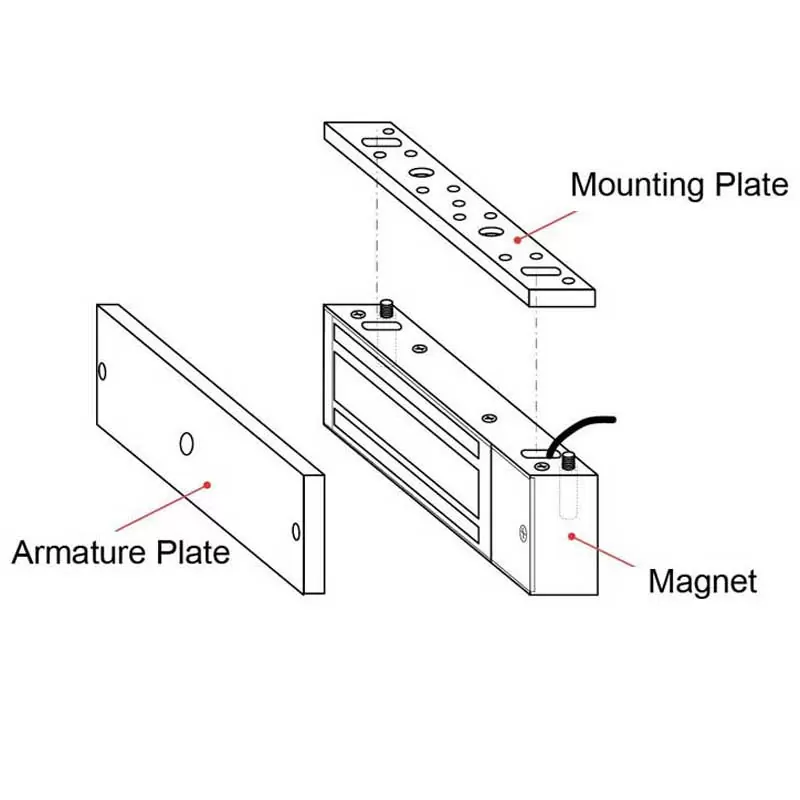

Magnet：Aluminum / Armature plate：Steel
Holding Force
330LBs (150KGs)
Door monitoring
---
LED indicator
---
TIMER
---
Relay dry contact rating
---
Unit weight (kg)
1kgs±1%
Bracket Type
L Bracket：PG-BLO151 / L &Z Bracket：PG-BLZ151 / U Bracket：PG-BUO150
Voltage / Current
DC 12V(370mA) / DC 24V(185mA)
Ingress Protection (IP)
---
Dimensions (LxWxH)mm
Magnet：166x38.5x21/ Armature plate：130x32x10
