Model：PML-1101
600LBs, 270KGs Electromagnetic Lock
Product
Features
- Holding force: 600LBs (270KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install

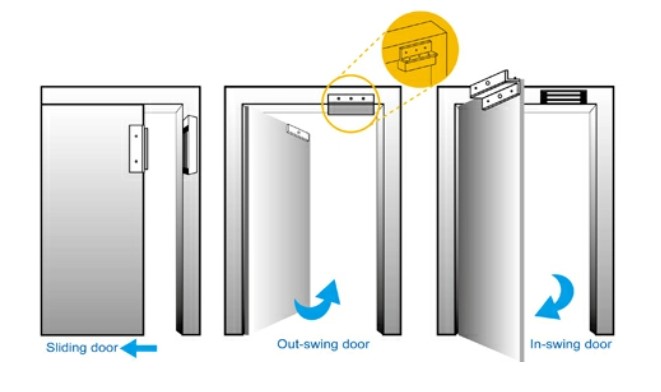

- Suitable for security door (IN & Out Swing)
- Electromagnetic Lock with safety strap(PML-1101K)
Specifications
| Model No. | PML-1100 | PML-1101 | |
| Holding Force | 600 LBS (270 KGS) | ||
| Voltage / Current | DC 12V (800 mA) / DC 24V (250 mA) | DC 12V (500 mA) / DC 24V (250 mA) | |
| Door Monitoring | — | YES | |
| LED Indicator | Power LED | Power & Status LED | |
| Timer | — | YES | |
| Relay Dry Contact Rating | — | DC 24V / 1A, AC 125V / 500 mA | |
| Material | Magnet | Aluminum | |
| Armature Plate | Steel | ||
| Dimensions (L x W x D) | Magnet | 250 x 47 x 26 mm | |
| Armature Plate | 185 x 38 x 11 mm | ||
| Unit Weight | 2 kg ± 1% | ||
| Ingress Protection (IP) | — | ||
| Bracket Type | • L Bracket: PG-BLO110A • L & Z Bracket: PG-BLZ110A • U Bracket: PG-BUO110 |
||
Application
For aluminum steel or wooden door, brass door, glass door with frame
Electromagnetic Lock with safety strap(PML-1101K)
This maglock strap is designed to give the fitter peace of mind that - should their heavy maglock become dislodged - it will not fall and hurt passers-by or damage the equipment.
Accessories
L type fixed bracket - PG-BLO110A
L & Z fixed bracket - PG-BLZ110A
U type bracket - PG-BUO110
Magnetic lump bracket - PK-EM250
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PML-1100 / PML-1101
Holding Force
600LBs (270KGs)
Voltage / Current
DC 12V(800mA) / DC 24V(250mA) ; DC 12V(500mA) / DC 24V(250mA)
Door Monitoring Switch
--- / YES
LED indicator
Power LED / Power & Status LED
Timer
--- / YES
Relay dry contact rating
--- / DC 24V/1A, AC 125V/500mA
Meterial / Color
Magnet：Aluminum / Armature Plate：Steel
Dimensions (L x W x D) mm
Magnet：250x47x26 / Armature Plate：185x38x11
Unit weight (kg)
2kgs±1%
Ingress Protection (IP)
---
Bracket Type
L Bracket: PG-BLO110A / L &Z Bracket: PG-BLZ110A / U Bracket: PG-BUO110
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
