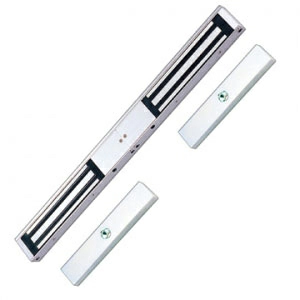

Model：PML-3101
600LBs, 270KGs Electromagnetic Lock (Double Door)
Compare
Product
Features
- Holding force: 600LBs (270KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install
- Suitable for double security door (IN & Out Swing)
Application
For aluminum steel or wooden door, brass door, glass door with frame
Dimensions: mm[inch]
Accessories

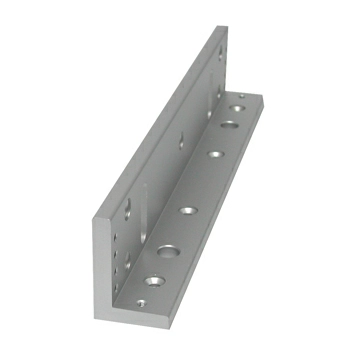

L type fixed bracket - PG-BLO110A x 2pcs

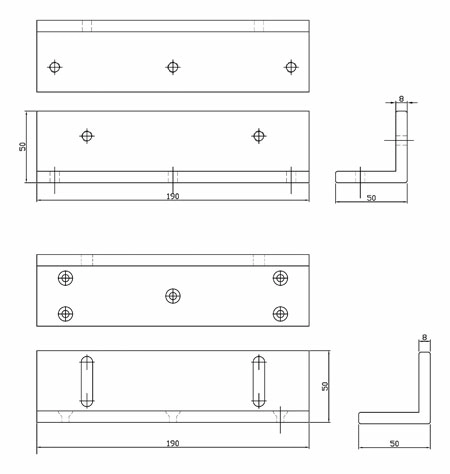

L & Z fixed bracket - PG-BLZ110A x 2pcs
We reserve the right to change the specification without prior notice or obligation!
Specification
Voltage /Current
DC 12V(1000mA) / DC 24V(500mA)
Holding Force
600LBs x 2 (270KGs x2 )
Unit weight (kg)
4kgs±1%
Bracket Type
L Bracket: PG-BLO110A x 2pcs L &Z Bracket: PG-BLZ110A x 2pcs
Armature plate
Steel
Ingress Protection (IP)
---
