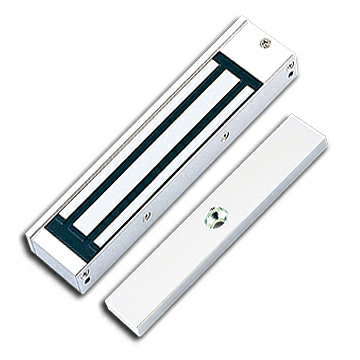

Model：PML-151
330LBs, 150KGs Electromagnetic Lock
Compare
Product
Features
- Holding force: 330LBs (150KGs).
- Voltage : 12V/24VDC (Selectable)
- Compact size; Easy to install
- Suitable for cabinet, Locker , and other similar devices
Dimensions: mm[inch]
Application

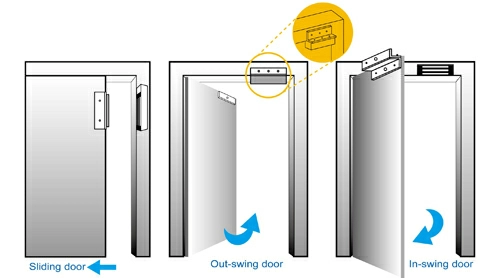

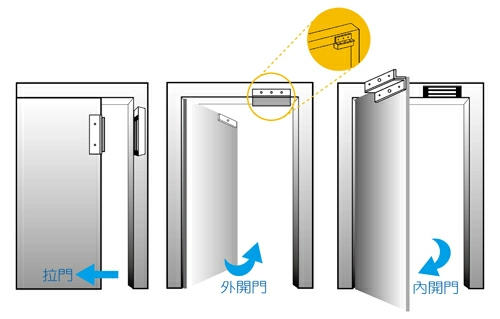

For aluminum steel or wooden door, brass door, glass door with frame
Accessories

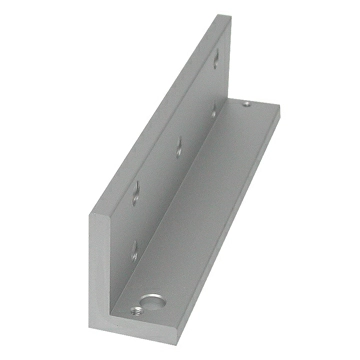

L type fixed bracket - PG-BLO151

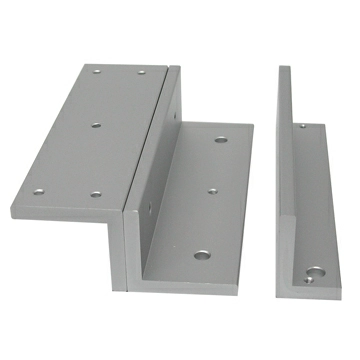

L & Z fixed bracket - PG-BLZ151
U type bracket - PG-BUO150
We reserve the right to change the specification without prior notice or obligation!
Specification
Holding Force
330LBs (150KGs)
Unit weight (kg)
1kgs±1%
Voltage/Current
DC 12V(370mA) / DC 24V(185mA)

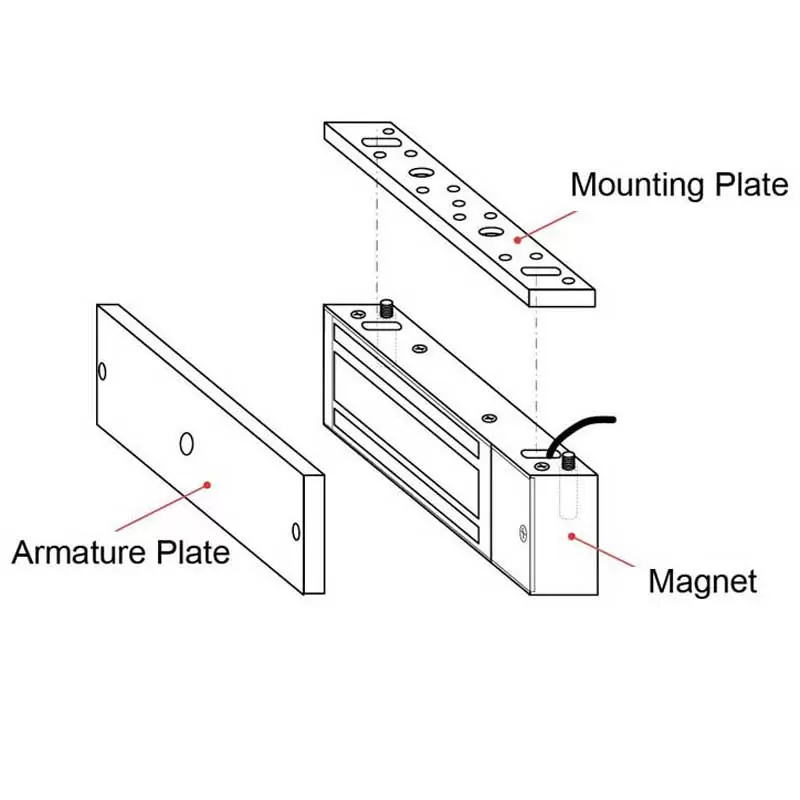

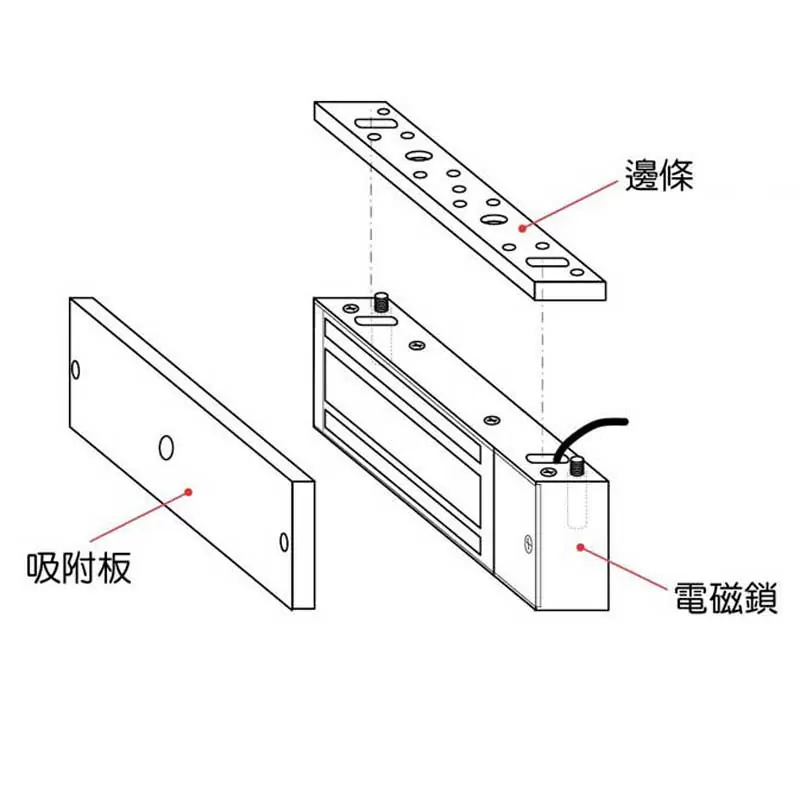

Armature plate
Steel
Ingress Protection(IP)
---
L &Z Bracket
PG-BLZ151
U Bracket
PG-BUO150
