Model：PML-1101R

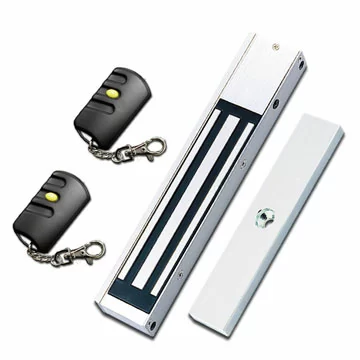

Wireless Smart Electromagnetic Lock 600LBs, 270KGs
Product
Features
- Holding force: 600LBs (270KGs)
- Voltage : 12V/24VDC (Selectable)
- Remote control ranges up to 10m
- Transmitter ID's up to 40 pieces
- Optional bracket available to install

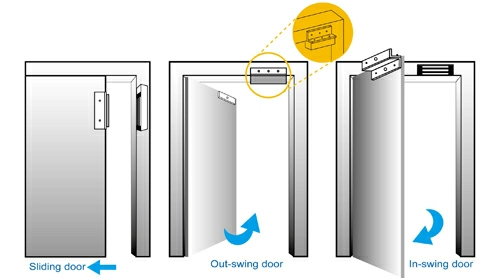

- Suitable for security door (IN & Out Swing)
Dimensions : mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories
L type fixed bracket - PG-BLO110A
L & Z fixed bracket - PG-BLZ110A
U type bracket - PG-BUO110

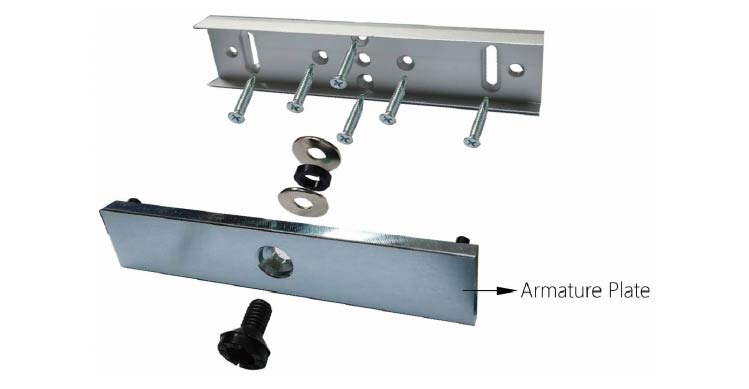

Magnetic lump bracket - PK-EM250
We reserve the right to change the specification without prior notice or obligation!
Specification
Holding Force
600LBs (270KGs)
Voltage/Current
DC 12V(500mA) / DC 24V(250mA)
Door monitoring
YES
LED indicator
YES
Timer
YES
Relay dry contact rating
DC 24V/1A, AC 125V/500mA

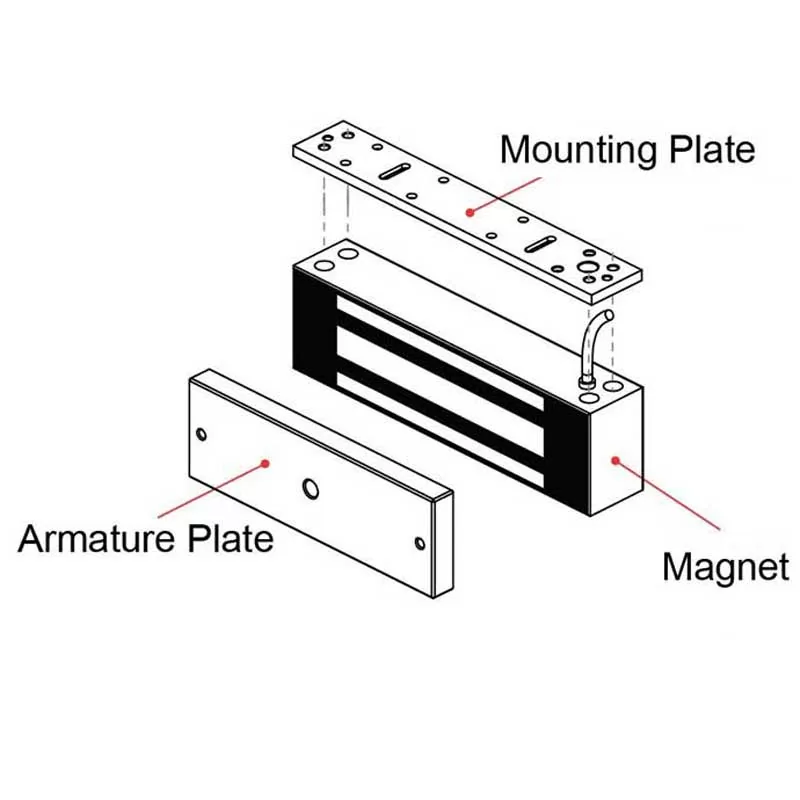

Material
Magnet：Aluminum / Armature plate：Steel
Dimensions (L x W x D) mm
Magnet：250x47x26 / Armature plate：185x38x11
Unit weight (kg)
2kgs±1%
Ingress Protection (IP)
---
Bracket Type
L Bracket: PG-BLO110A ; L &Z Bracket: PG-BLZ110A ; U Bracket: PG-BUO110
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
