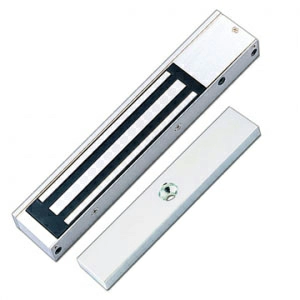

Model：PML-1100
600LBs, 270KGs Electromagnetic Lock
Product
Features
- Holding force: 600LBs (270KGs)
- Voltage : 12V/24VDC (Selectable)

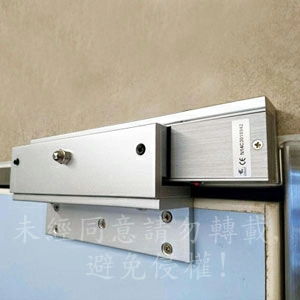

- Optional bracket available to install

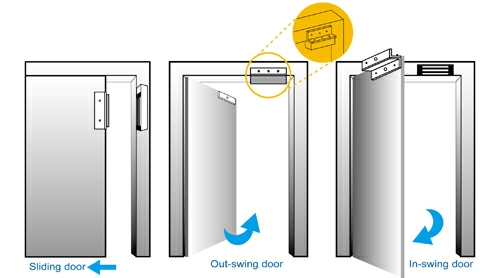

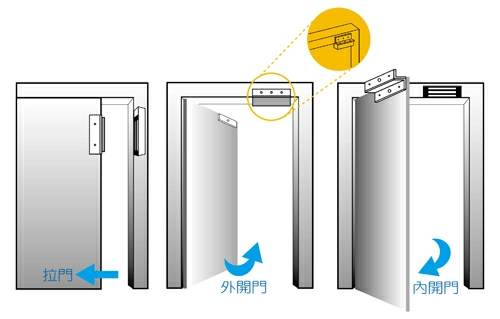

- Suitable for security door (IN & Out Swing)
- Electromagnetic Lock with safety strap(PML-1101K)

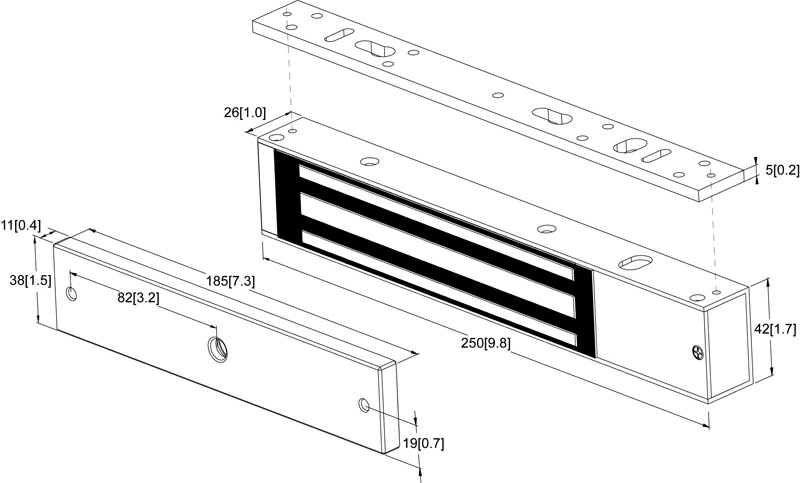

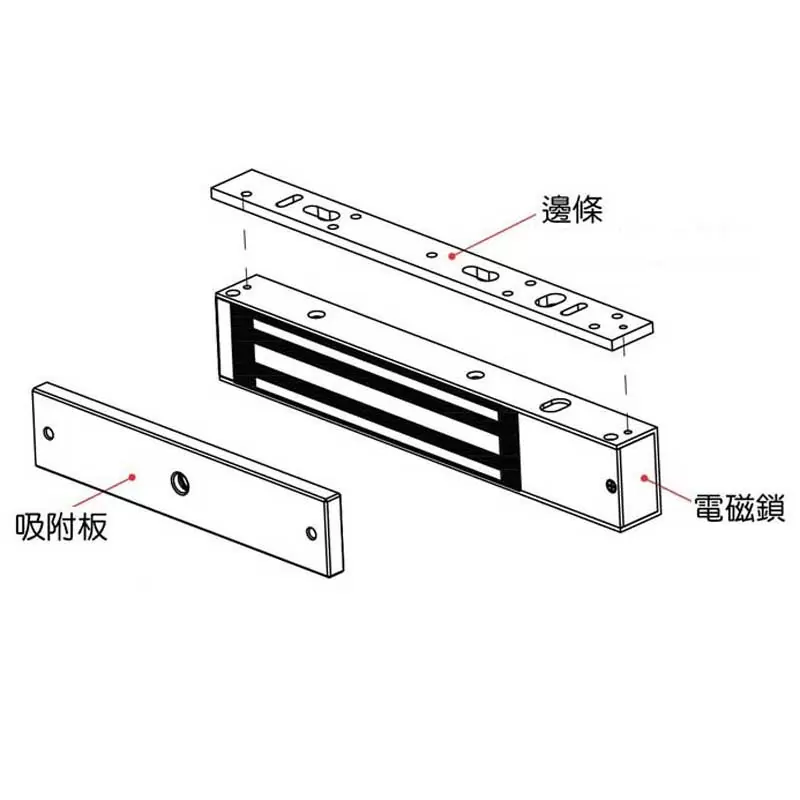

Dimensions: mm[inch]

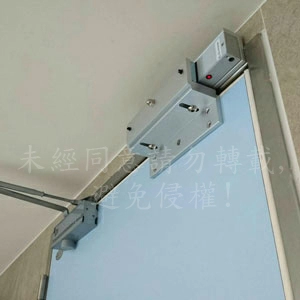

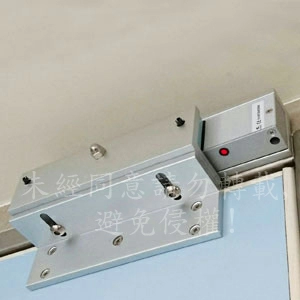

Application
For aluminum steel or wooden door, brass door, glass door with frame

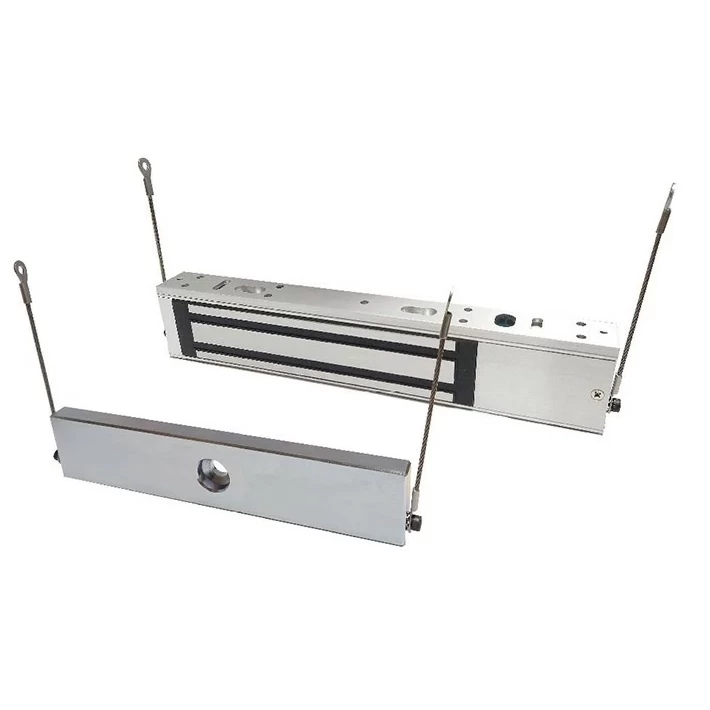

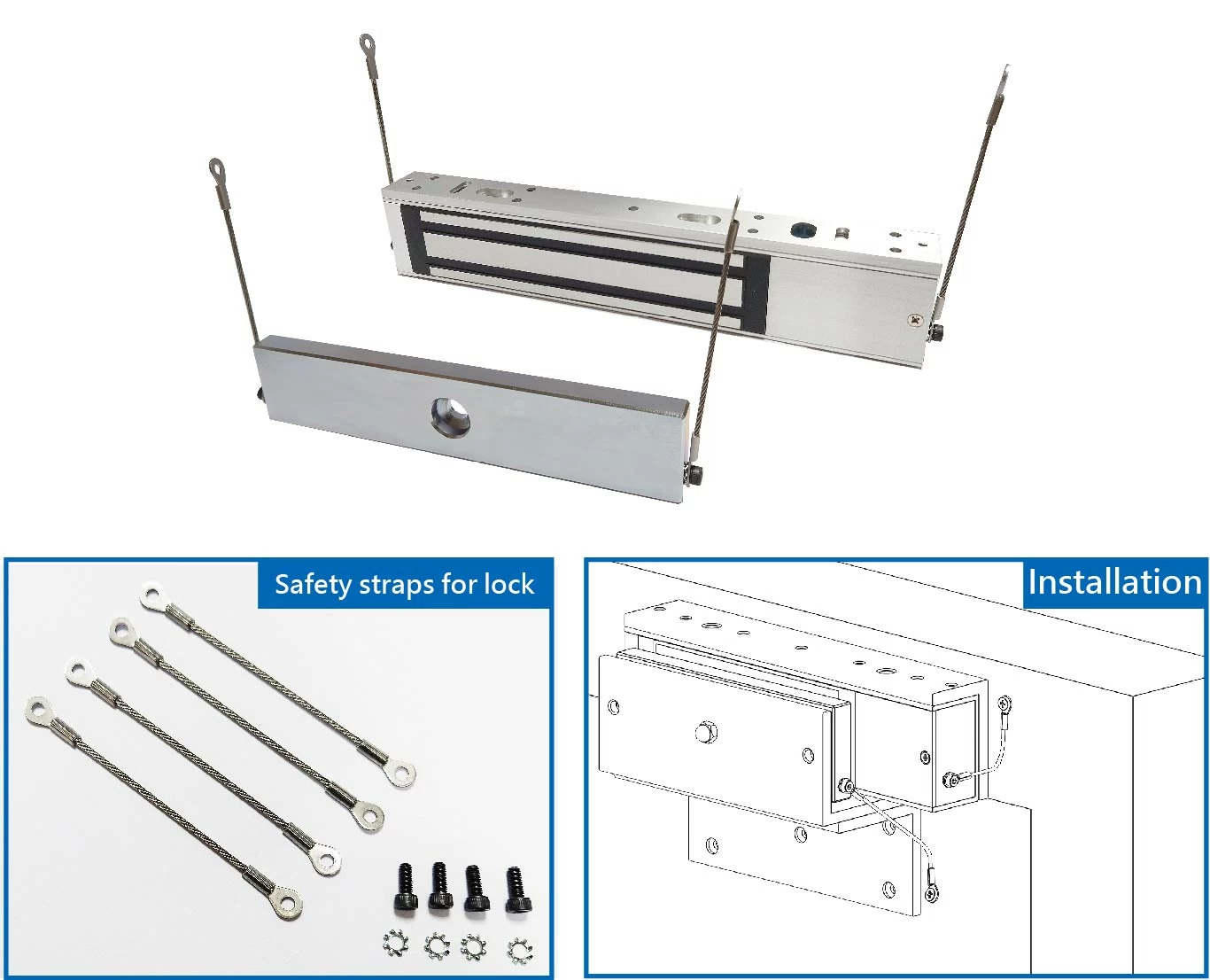

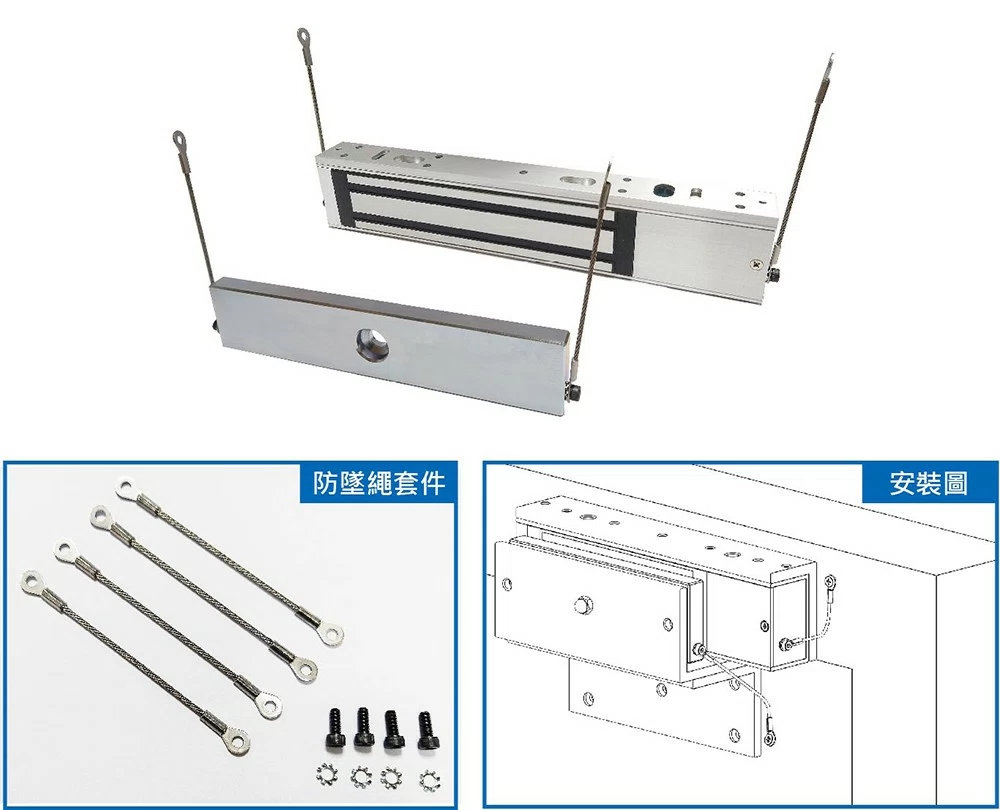

Electromagnetic Lock with safety strap(PML-1101K)
This maglock strap is designed to give the fitter peace of mind that - should their heavy maglock become dislodged - it will not fall and hurt passers-by or damage the equipment.
Accessories

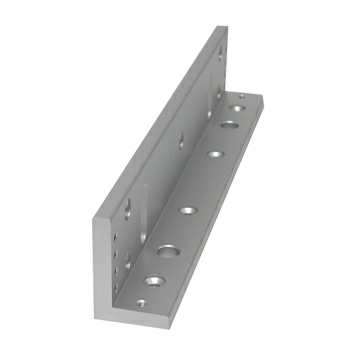

L type fixed bracket - PG-BLO110A

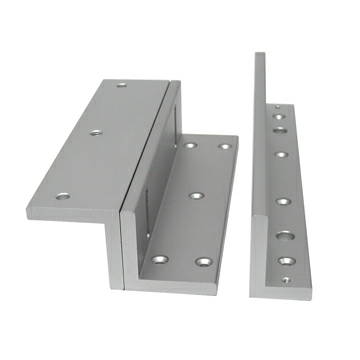

L & Z fixed bracket - PG-BLZ110A
U type bracket - PG-BUO110

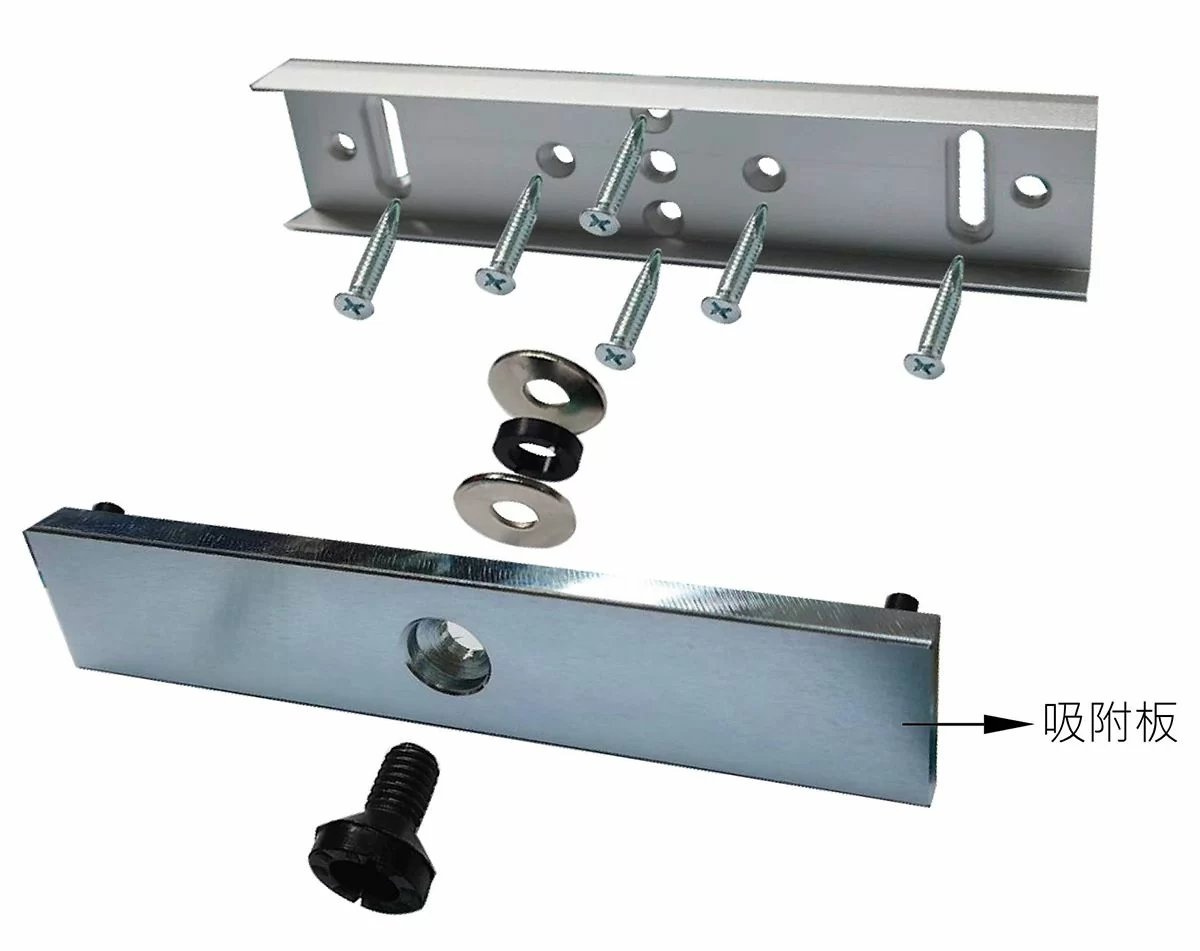

Magnetic lump bracket - PK-EM250
We reserve the right to change the specification without prior notice or obligation!
Specification
Material
Magnet：Aluminum / Armature plate：Steel
Holding Force
600LBs (270KGs)
Door monitoring
---
LED indicator
Power LED
TIMER
---
Relay dry contact rating
---
Unit weight (kg)
2kgs±1%
Bracket Type
L Bracket: PG-BLO110A / L &Z Bracket: PG-BLZ110A / U Bracket: PG-BUO110
Voltage/Current
DC 12V(500mA) / DC 24V(250mA)
Ingress Protection (IP)
---
Dimensions (LxWxH)mm
Magnet：250x47x26 / Armature plate：185x38x11
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
