Model：PML-080A

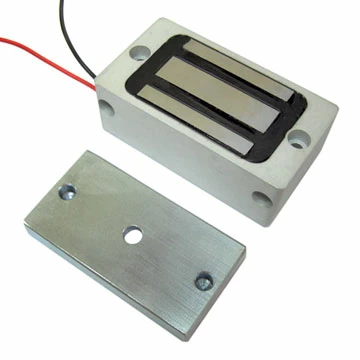

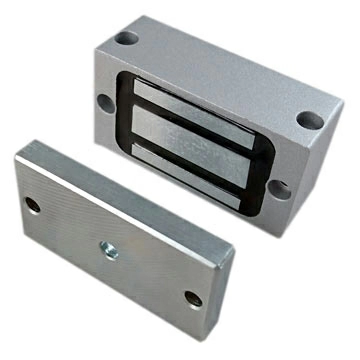

145LBs, 66KGs Mini Electromagnetic Lock
Product
Features
- Holding force: 100~145LBs (45~66KGs).
- Voltage : 12V~24VDC (Selectable)
- Compact size; Easy to install
- Suitable for drawer, locker, mailbox, and other similar devices

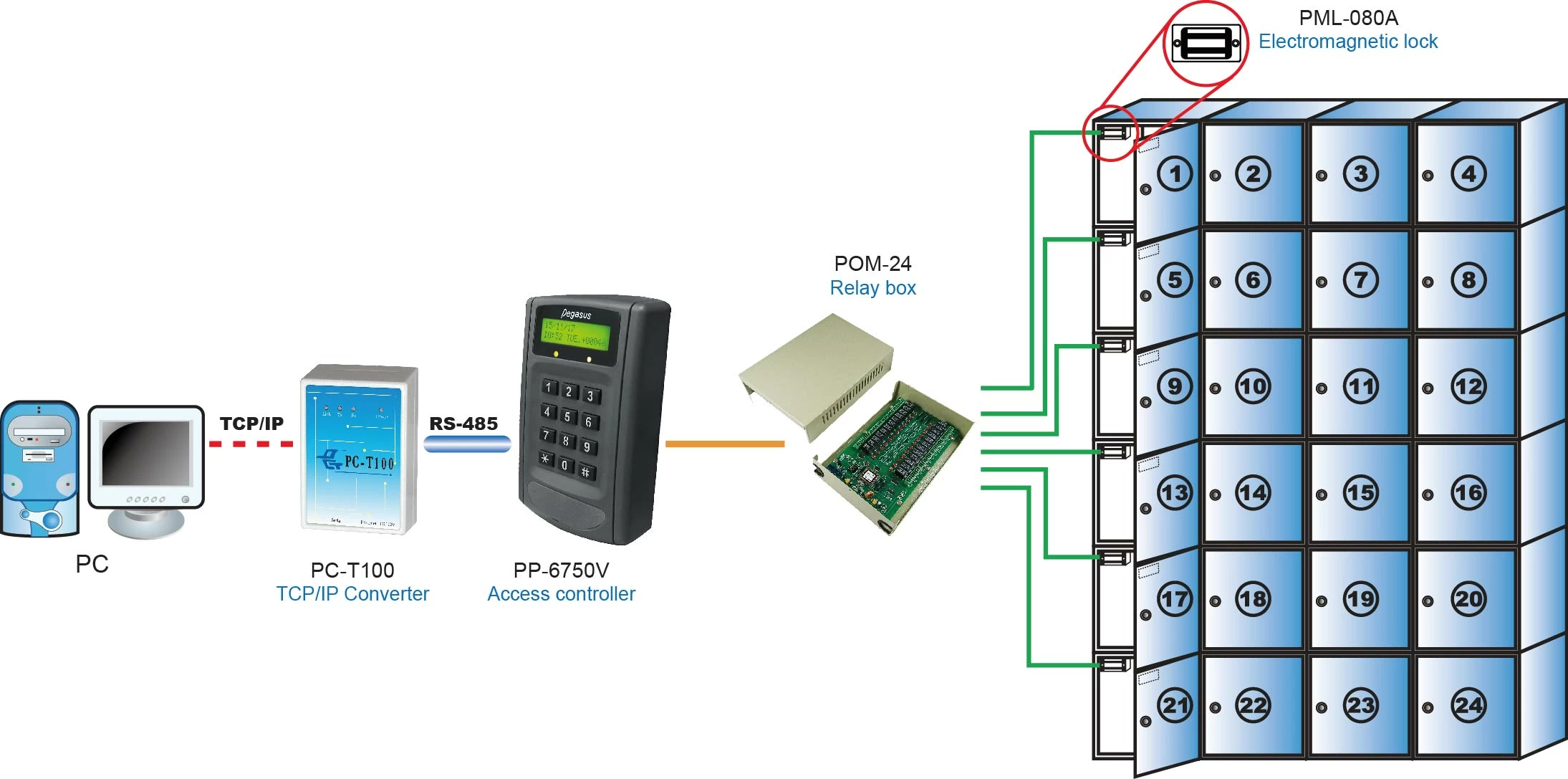

System configuration

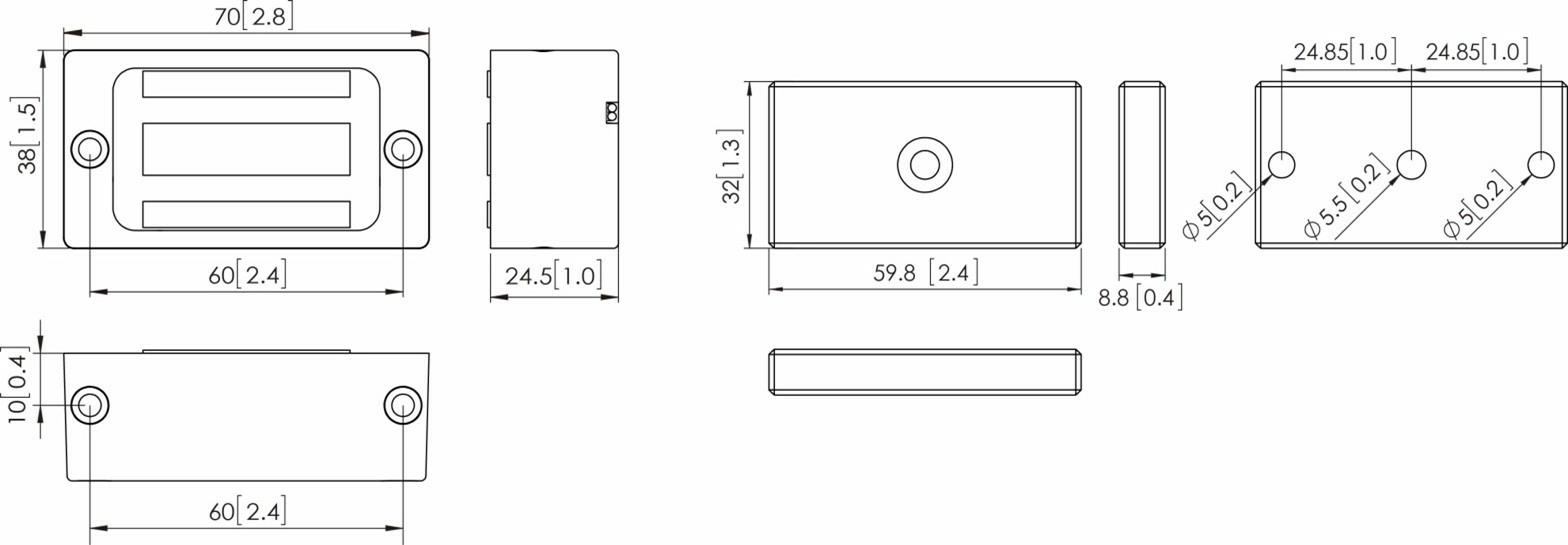

Dimensions: mm[inch]
Installation assembly

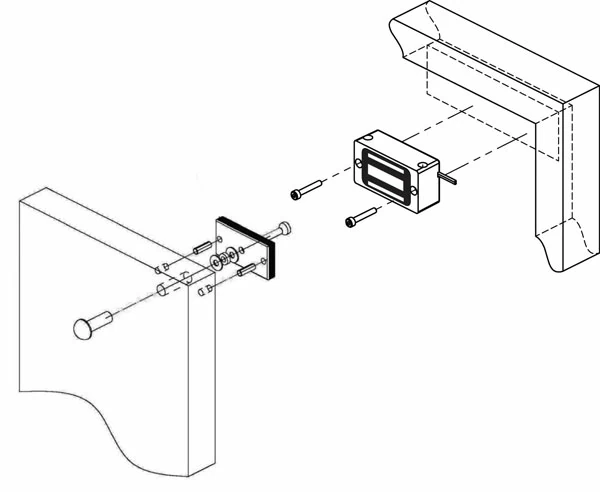

Pull door type

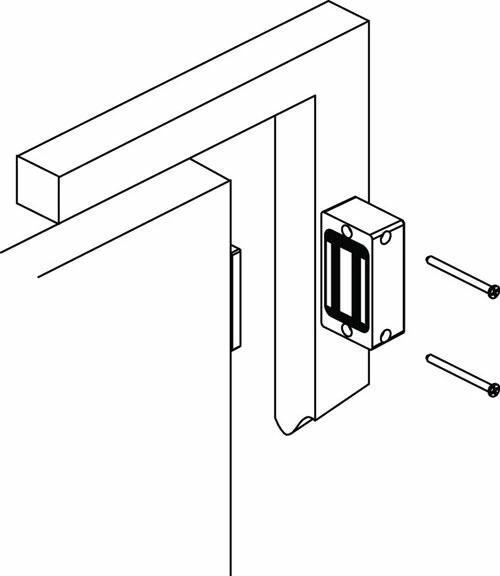

Sliding door type
We reserve the right to change the specification without prior notice or obligation!
Specification
Holding Force
100~145LBs (45~66KGs)
Voltage / Current
DC 12V(60mA)~DC 24V(150mA)
Door monitoring
---
LED indicator
---
Timer
---
Relay dry contact rating
---
Material
Magnet：Aluminum alloy / Armature plate：Steel
Unit weight (kg)
0.4kgs±1%
Bracket Type
---
