Model：PML-151
330LBs, 150KGs Electromagnetic Lock
Product
Features
- Holding force: 330LBs (150KGs).
- Voltage : 12V/24VDC (Selectable)
- Compact size; Easy to install
- Suitable for cabinet, Locker , and other similar devices
Specification
| Model No. | PML-150 | PML-151 | |
| Holding Force | 330 LBS (150 KGS) | ||
| Voltage / Current | DC 12V (370 mA) / DC 24V (185 mA) | ||
| Door Monitoring | — | YES | |
| LED Indicator | — | — | |
| Timer | — | — | |
| Relay Dry Contact Rating | — | 1A, 24 VDC / VAC | |
| Material | Magnet | Aluminum | |
| Armature Plate | Steel | ||
| Dimensions (L x W x D) | Magnet | 166 x 38.5 x 21 mm | |
| Armature Plate | 130 x 32 x 10 mm | ||
| Unit Weight | 1 kg ± 1% | ||
| Ingress Protection (IP) | — | ||
| Bracket Type | L Bracket | PG-BLO151 | |
| L & Z Bracket | PG-BLZ151 | ||
| U Bracket | PG-BUO150 | ||

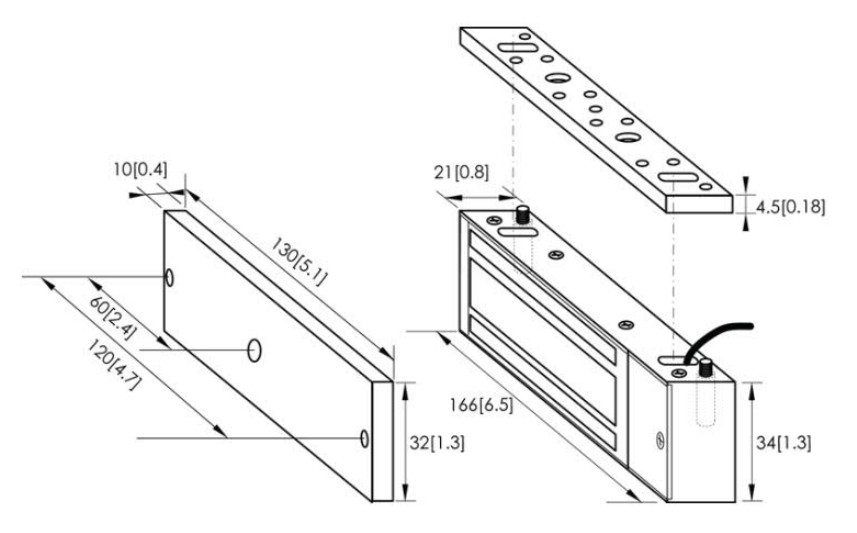

Dimensions: mm[inch]

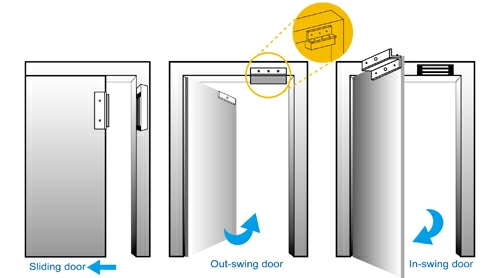

Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories
L type fixed bracket - PG-BLO151
L & Z fixed bracket - PG-BLZ151
U type bracket - PG-BUO150
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PML-150 / PML-151
Holding Force
330LBs (150KGs)
Voltage/Current
DC 12V(370mA) / DC 24V(185mA)
Door monitoring
--- / YES
LED indicator
---
Timer
---
Relay dry contact rating
--- / 1A ,24VDC/AC
Material
Magnet：Aluminum / Armature plate：Steel
Dimensions (L x W x D) mm
Magnet：166x38.5x21 / Armature plate：130x32x10
Unit weight (kg)
1kgs±1%
Ingress Protection (IP)
---
Bracket Type
L Bracket：PG-BLO151 / L &Z Bracket：PG-BLZ151 / U Bracket：PG-BUO150
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
