Compare
Model：PML-2101K
1200LBs, 540KGs Electromagnetic Lock with safety strap
Product
Features

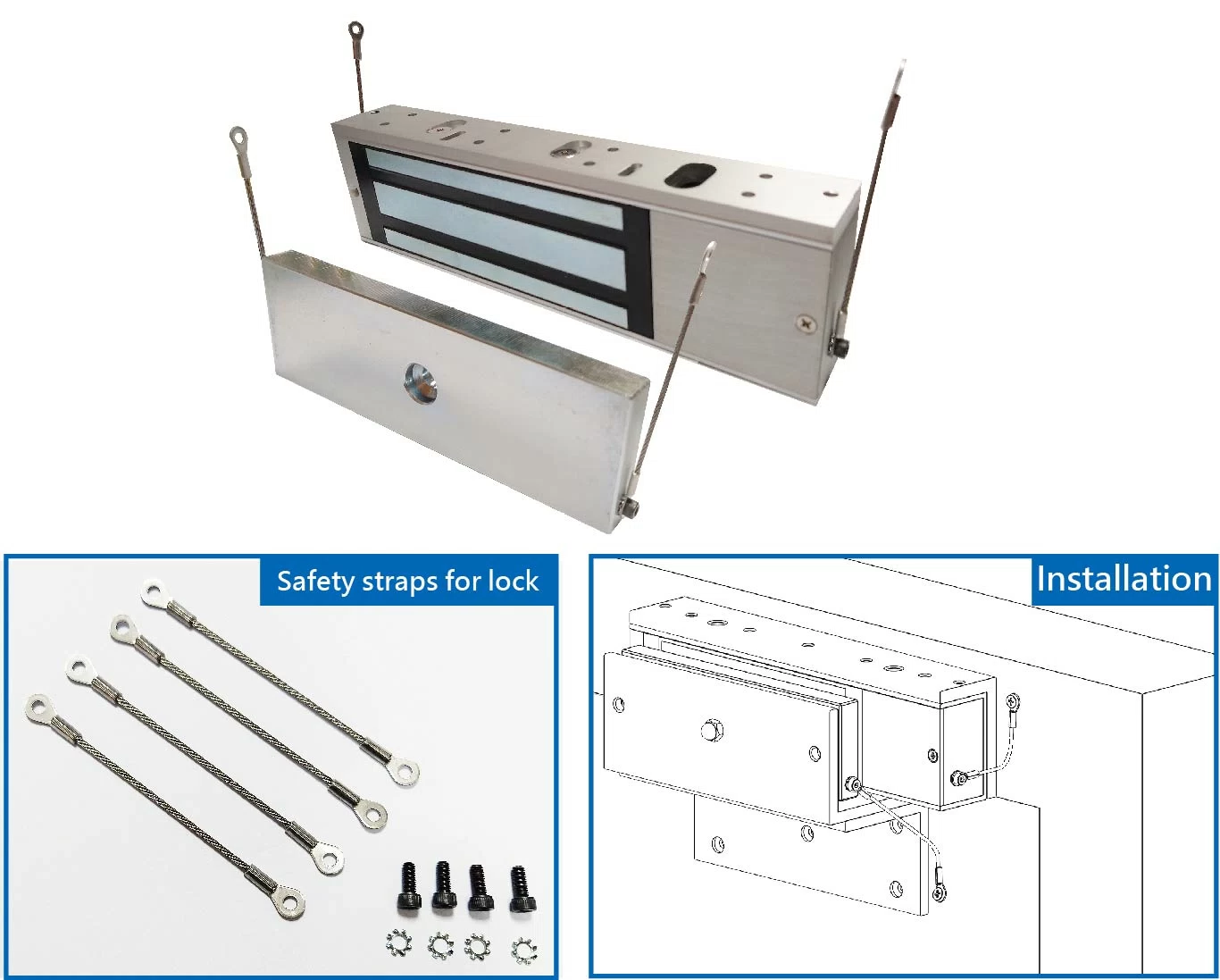

- This maglock strap is designed to give the fitter peace of mind that should their heavy maglock become dislodged, it will not fall and hurt passers-by or damage the equipment.
- Holding force: 1200LBs (540KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install
- Suitable for security door (IN & Out Swing)

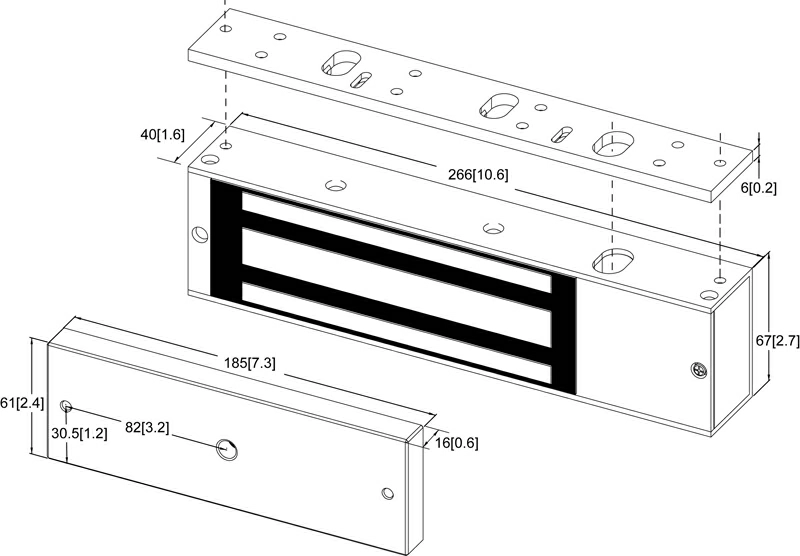

Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame

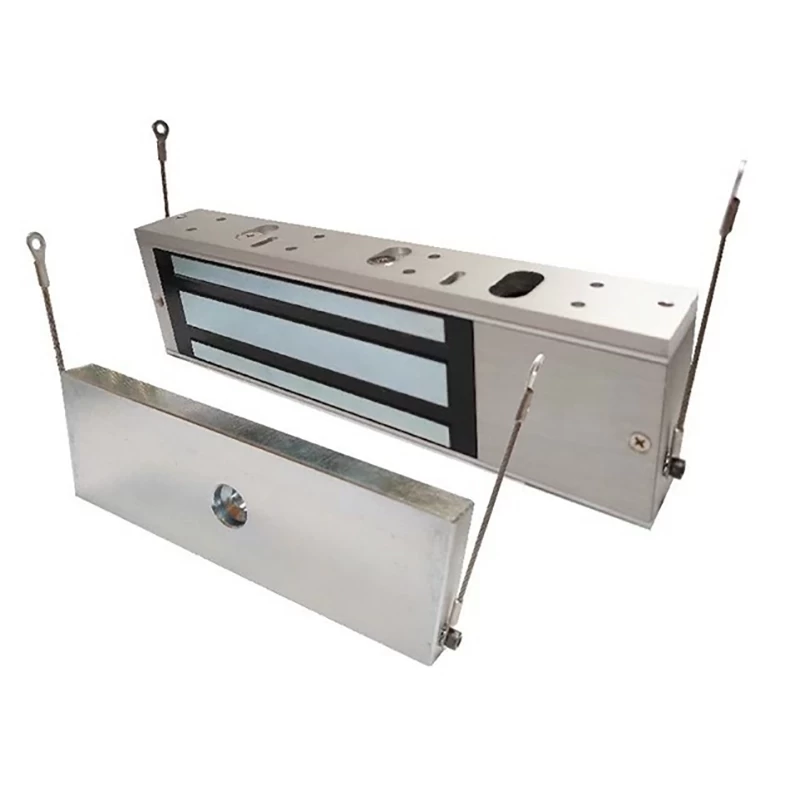

Electromagnetic Lock with safety strap(PML-2101K)
Accessories
L type fixed bracket-PG-BLO210A
L & Z fixed bracket - PG-BLZ210A
*We reserve the right to change the specification without prior notice or obligation!
Specification
Holding Force
1200LBs (540KGs)
Voltage /Current
DC 12V(500mA) / DC 24V(250mA)
Door monitoring
YES
LED indicator
Power & Status LED
TIMER
YES
Relay dry contact rating
DC 24V/1A, AC 125V/500mA
Material
MAGNETL：Aluminum / ARMATURE PLATE：Steel
Dimensions(LxWxH)mm
MAGNETL：266x73x40 / ARMATURE PLATE：185x61x16
UNIT WEIGHT(kg)
5kgs±1%
Ingress Protection (IP)
---
Bracket Type
L Bracket: PG-BLO210A / L &Z Bracket: PG-BLZ210A
