Proximity Standalone controller

PP-360 Standalone EM Access ControllerProximity Standalone controller

Model number： PP-360

Inquiry
Quantity
    Share

    Features

    • Classic and slim design, suitable for installation in narrow place
    • Support 1000 Cards (Standalone)
    • Built-in LED and Buzzer indicator
    • Built-in Form A Relay
    • Weatherproof for outdoor use

    Specification

    Model No.PP-360/N
    Frequency125KHz ASK
    CompatibilityISO18000-2 EM4001, 4100, 4102, TEMIC 5567
    User Capacity1000
    Power VoltageDC 12V
    InputExit push button / Door monitor / Security sensor
    OutputAlarm output / Tamper switch output / Electric lock output
    MaterialPC
    Dimensions (LxWxH)mm118x75x17
    IP RatingYES

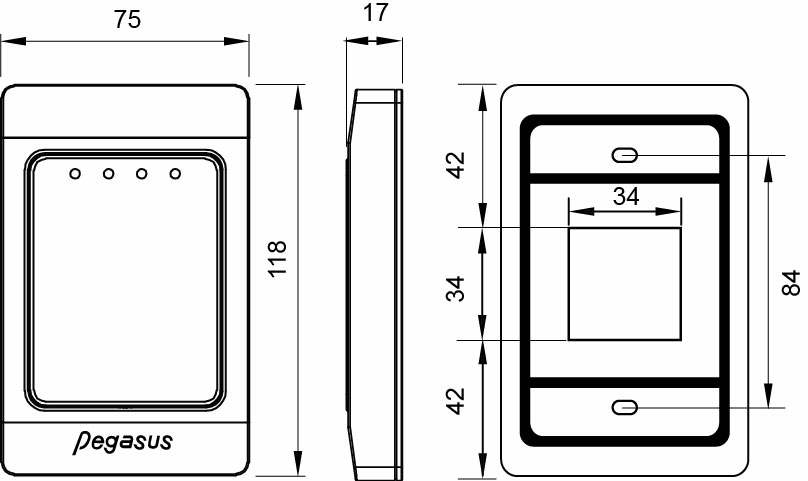

    Dimension: mm

    Proximity Standalone controller

    We reserve the right to change the specification without prior notice or obligation!
