Model：PCL-66

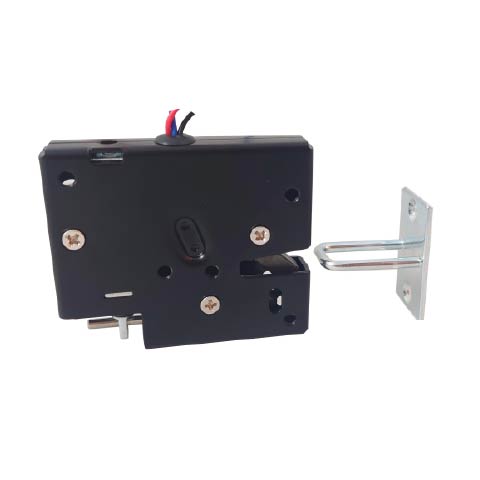

Fail Secure Electronic Cabinet Lock PCL-66
Fail Secure
Electronic Cabint Lock
Electronic Cabint Lock
Product
Product Description
Specifications
Dimension (mm)
- Compact size for simple installation.
- For drawers, cabinet, mailboxes, boxes and similar devices used.
- With lock sensor.Specifications
Specifications
| Specifications | Value |
|---|---|
| Voltage / Current | DC 12V / 2A |
| Ejection Force | 0.6 ~ 0.7 Kg |
| Life | 500,000 operations |
| Insulation Class | Class F |
| Operating Temp. / Humidity | -5 ~ 50°C, 5 ~ 85%RH |
| Latch Bolt (Throw) | 15.5 ~ 16 mm |
| Yield Strength | 7kg/mm² |
| Material | Cabinet Lock: SPCC (ED Coating) / Buckle: Galvanized Iron |
| Net Weight | 145 g ± 1% |

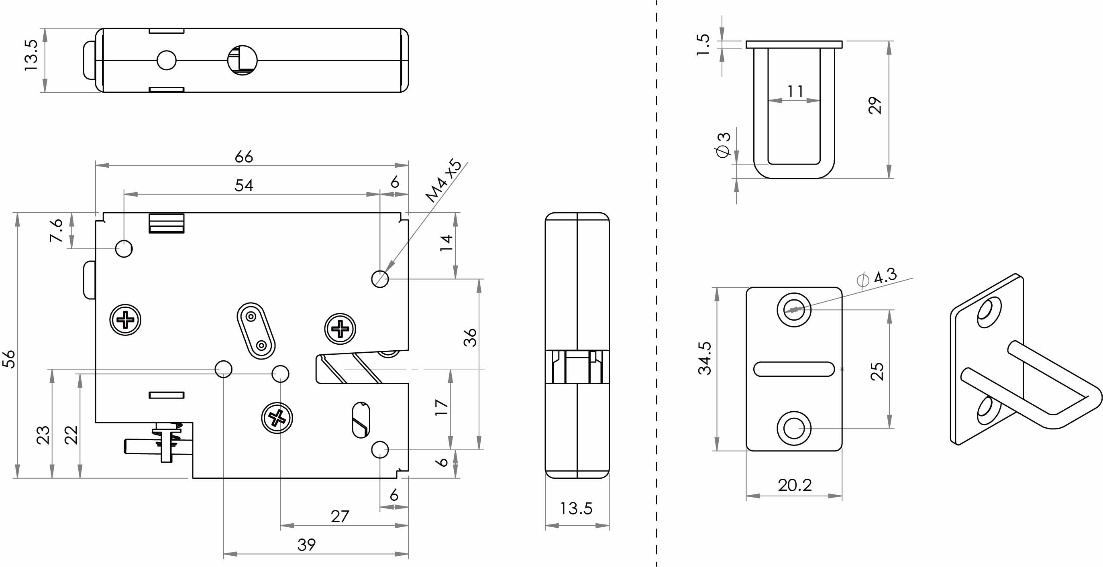

Dimension (mm)
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
