600LBs, 270KGs Electromagnetic Lock
Features
- Holding force: 600LBs (270KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install
- Suitable for security door (IN & Out Swing)
- Electromagnetic Lock with safety strap(PML-1101K)
Specifications
| Model No. | PML-1100 | PML-1101 | |
|---|---|---|---|
| Holding force | 600LBs (270KGs) | ||
| Voltage /Current | DC 12V(800mA) / DC 24V(250mA) | DC 12V(500mA) / DC 24V(250mA) | |
| Door monitoring | --- | YES | |
| LED indicator | Power LED | Power & Status LED | |
| Timer | --- | YES | |
| Relay dry contact rating | --- | DC 24V/1A, AC 125V/500mA | |
| Material | Magnet | Aluminum | |
| Armature plate | Steel | ||
| Dimensions(LxWxD)mm | Magnet | 250x47x26 | |
| Armature plate | 185x38x11 | ||
| Unit weight (kg) | 2kgs±1% | ||
| Ingress Protection (IP) | --- | ||
| Bracket Type | L Bracket: PG-BLO110A L &Z Bracket: PG-BLZ110A U Bracket: PG-BUO110 | ||
Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame
Electromagnetic Lock with safety strap(PML-1101K)
This maglock strap is designed to give the fitter peace of mind that - should their heavy maglock become dislodged - it will not fall and hurt passers-by or damage the equipment.
Accessories
L type fixed bracket - PG-BLO110A
L & Z fixed bracket - PG-BLZ110A
U type bracket - PG-BUO110

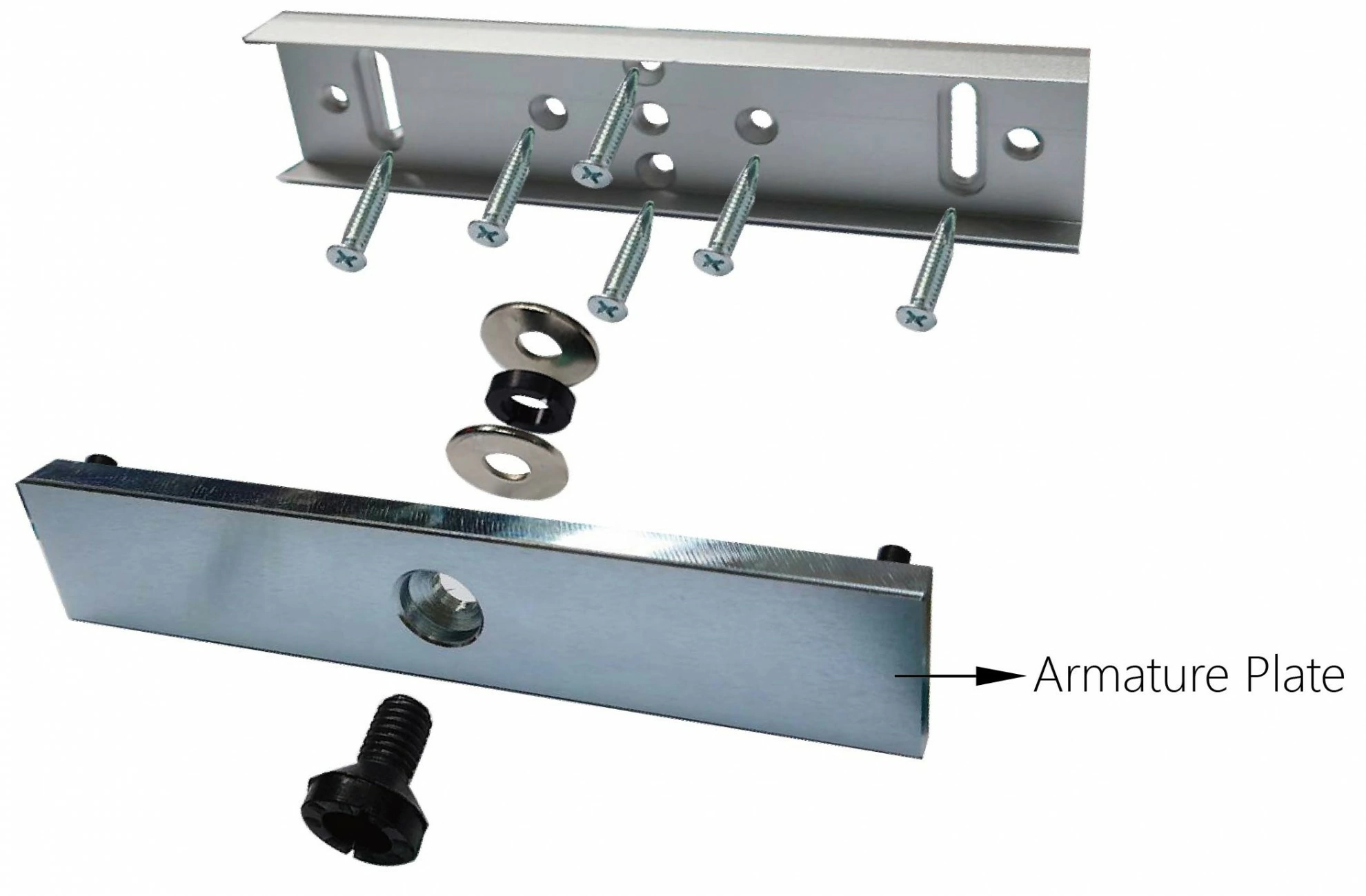

Magnetic lump bracket - PK-EM250
We reserve the right to change the specification without prior notice or obligation!
