Mullion Standalone controller

PC-110 Mifare Access ControllerPC-110 Mifare Access Controller

Model number： PC-110

Inquiry
Quantity
    Share

    Features

    • Elegant and slim design, suitable for installation in narrow place
    • Support 64 Cards (Standalone)
    • Built-in LED and Buzzer indicator
    • Built-in Form A Relay

    Specification

    Model No.PC-110-0/NPC-110-0/M0
    Frequency125KHz ASK13.56MHz
    CompatibilityISO18000-2 EM4001, 4100, 4102, TEMIC 5567ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESfire, NFC (card simulation)
    User Capacity64
    Power VoltageDC 12V
    Digital I/OInputCOM./N.O./N.C.
    OutputRelay outputs
    MaterialABS
    Dimensions (LxWxH)mm94x43x15
    IP Rating---
    ​​​​​​

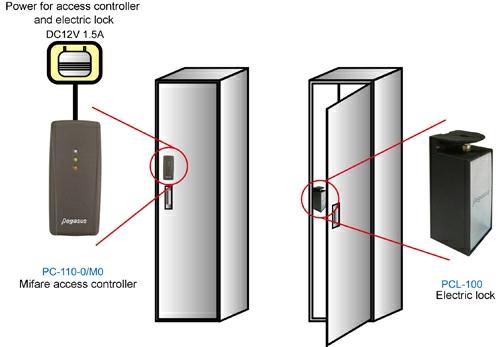

    proimages/access_controller/PC-110/Cabinet-lock-pic1Es.jpg

    Application field

    • Low cost access controller
    • Arm / Disarm for security system.
    • Door access paired with intercom.
    • Coffer
    • Any access control applications by Mifare card.

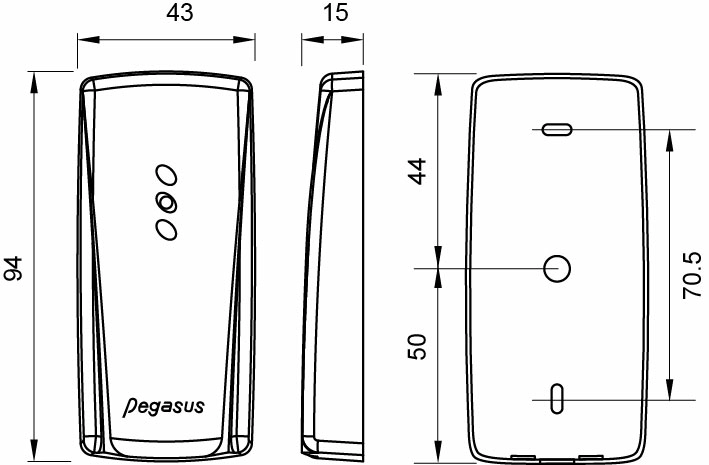

    Dimension: mm

    Mullion Standalone controller

    Mifare is a registered trademark of NXP B.V.
    Mifare DESFire is a registered trademark of NXP B.V.
    Mifare Ultralight is a registered trademark of NXP B.V.

    We reserve the right to change the specification without prior notice or obligation!
